  •    Code : NBAP - 4301
  •    Type : LED Profile
  •    Power/meter : 30W/meter

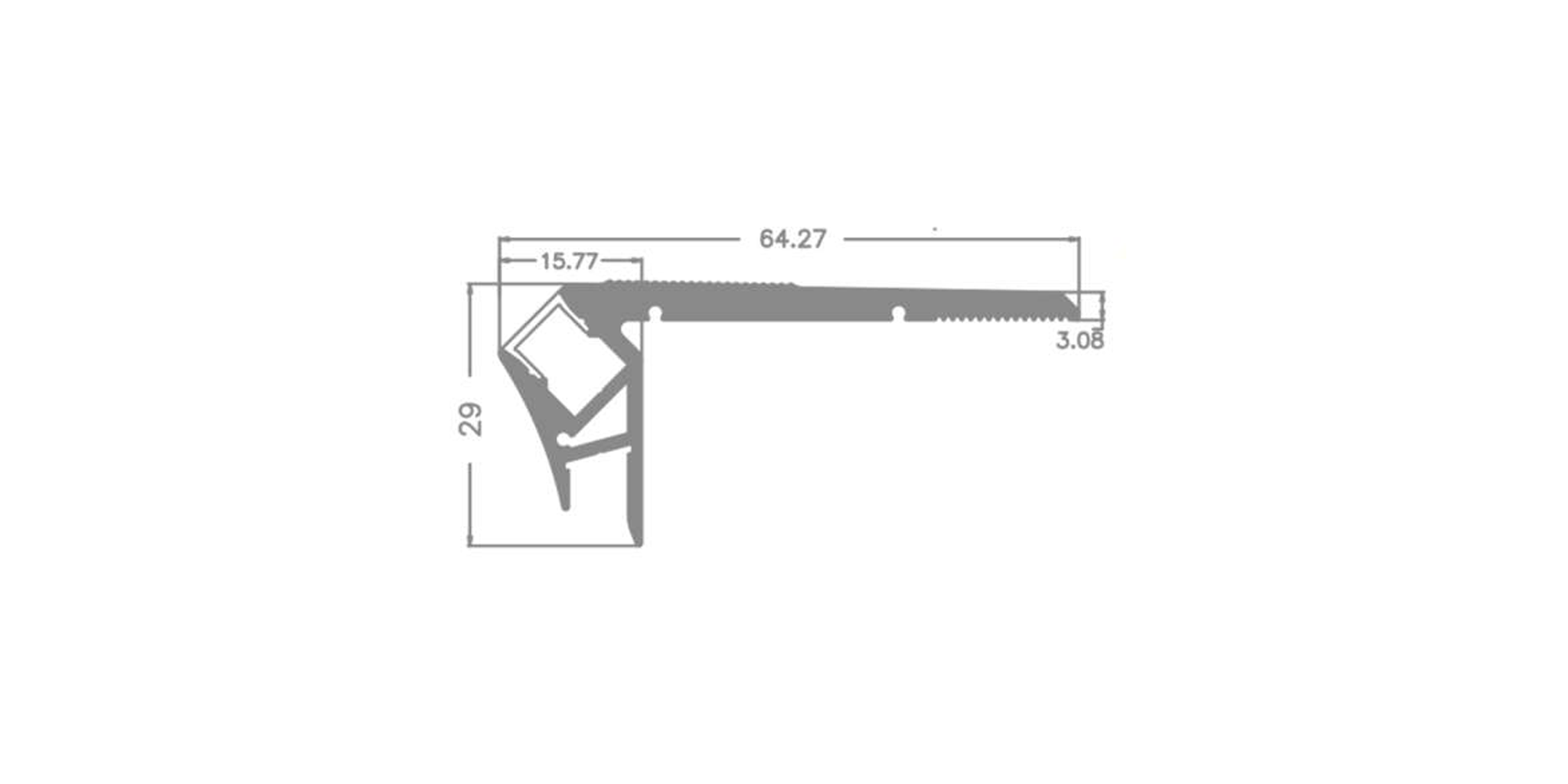

  •    Size : W64mm x H29mm
  •    Strip Width : 7.39, 7.6mm
  •    Max Length : 3000mm
  •    Material : Aluminum

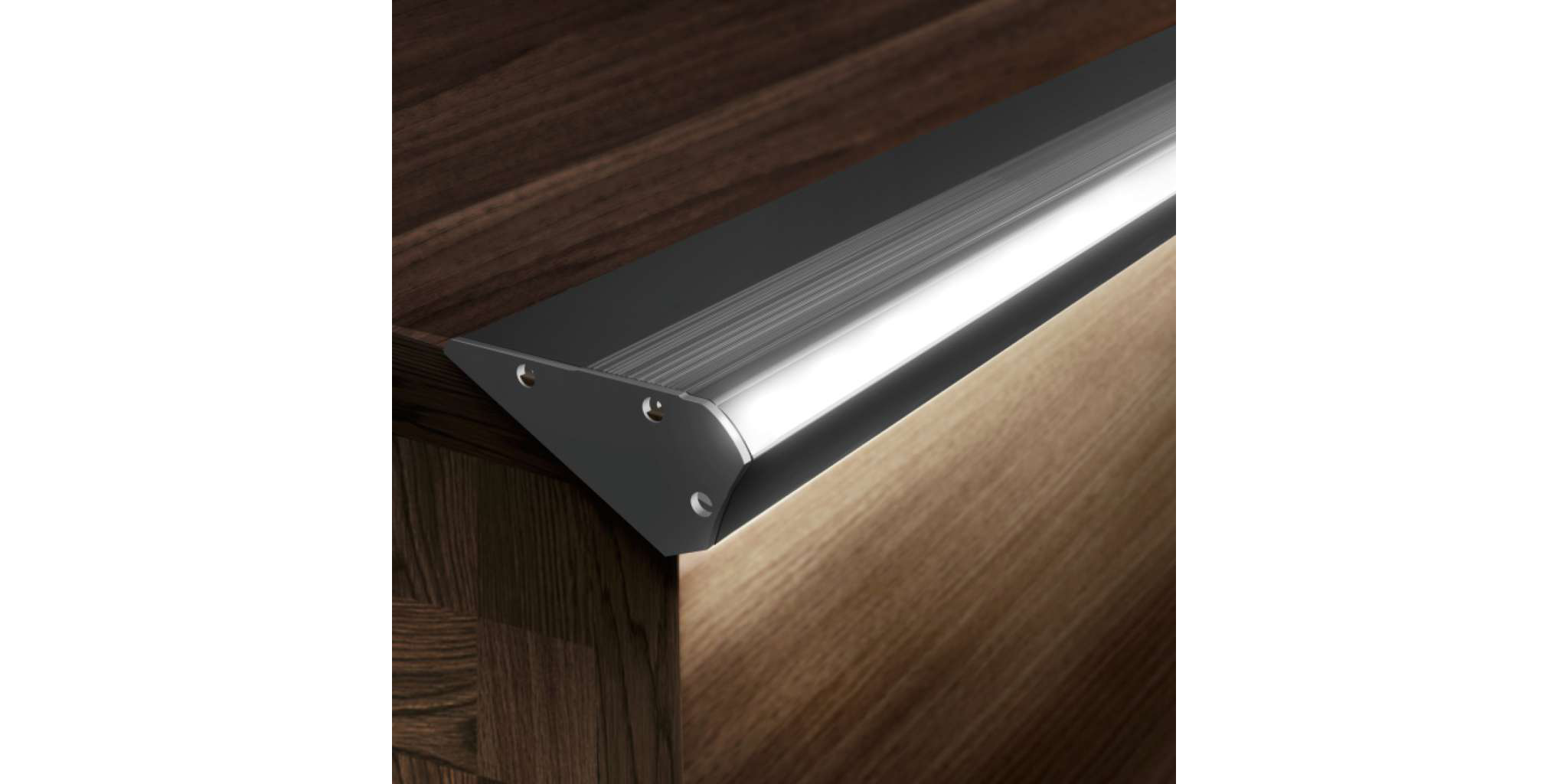

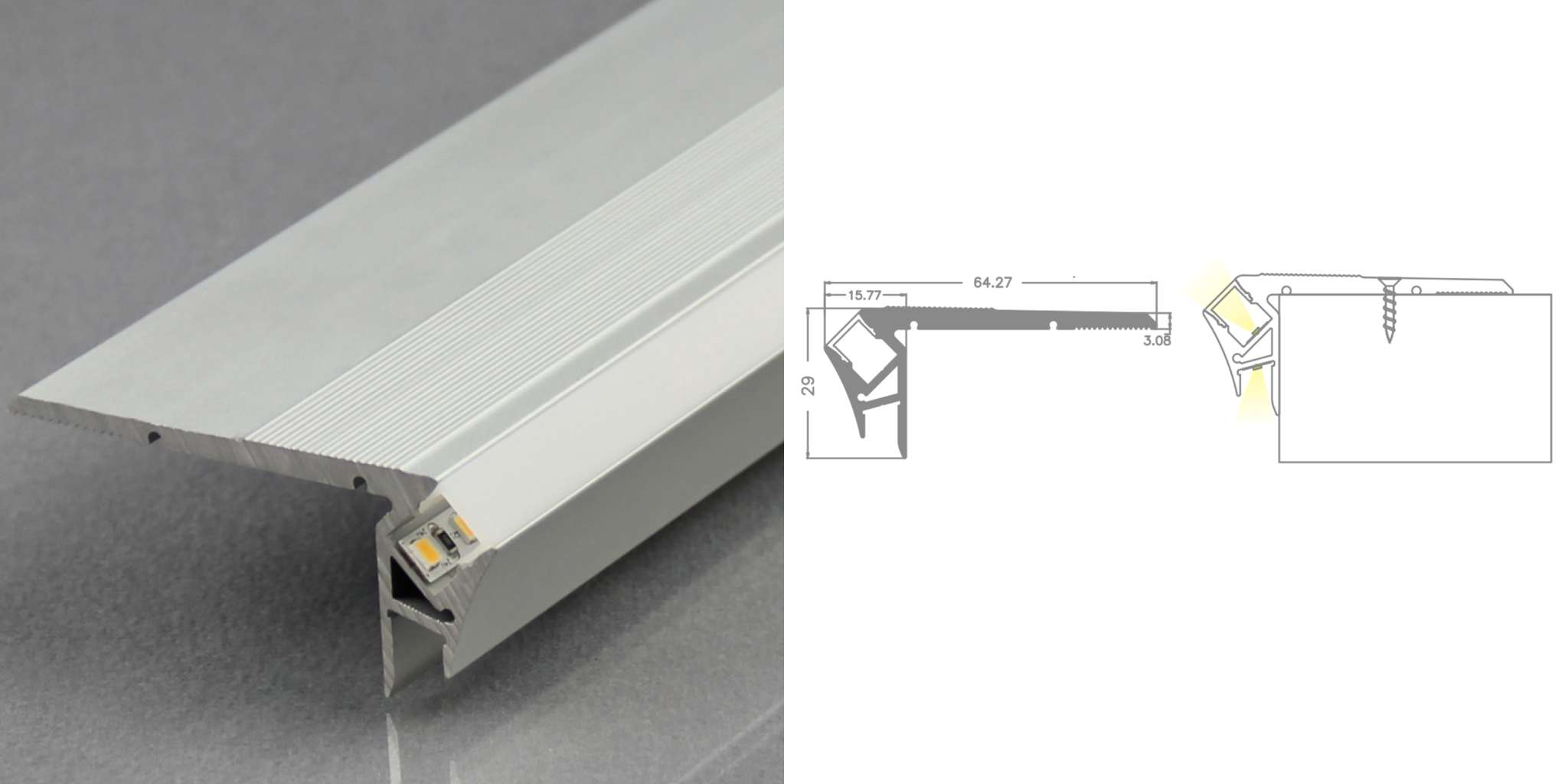

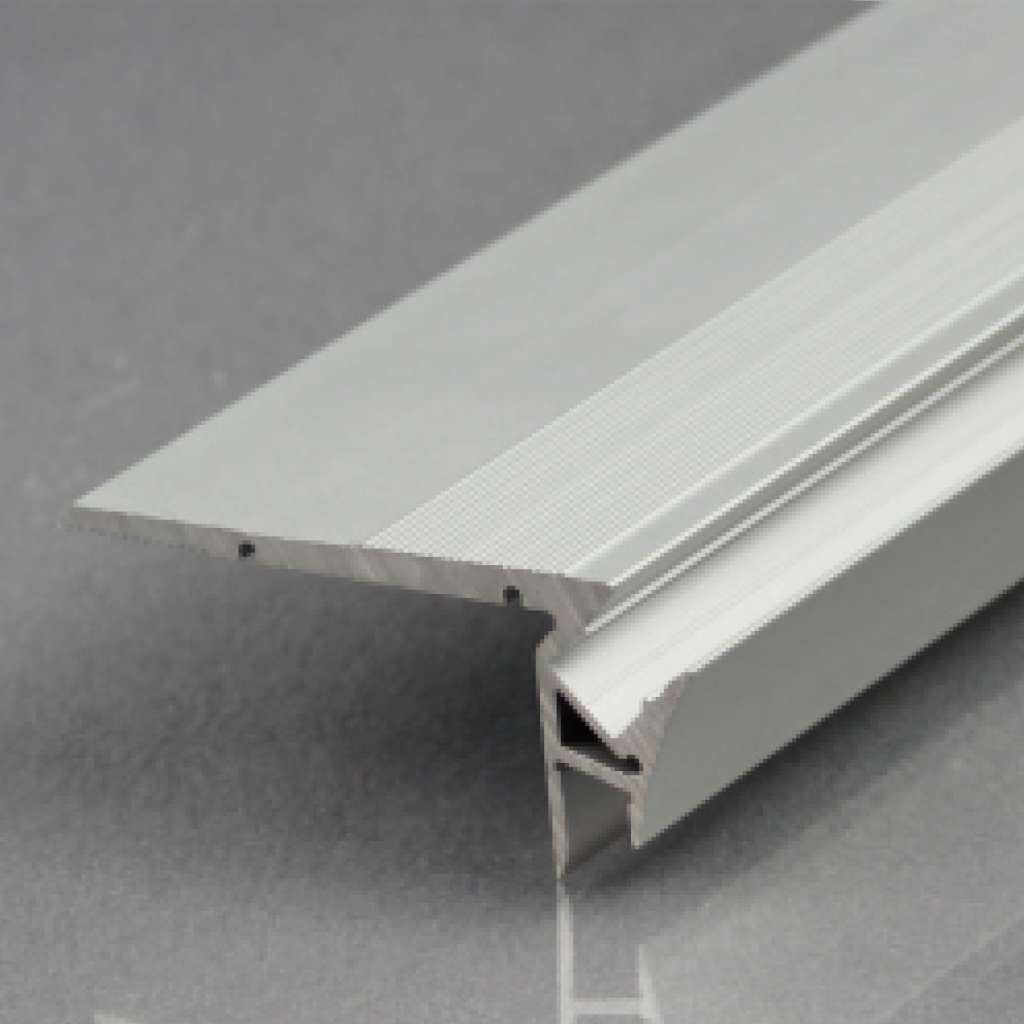

Step light LED Profile

Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.

Step light
linear light design with up and down light output,
homogenious and dots free illumination

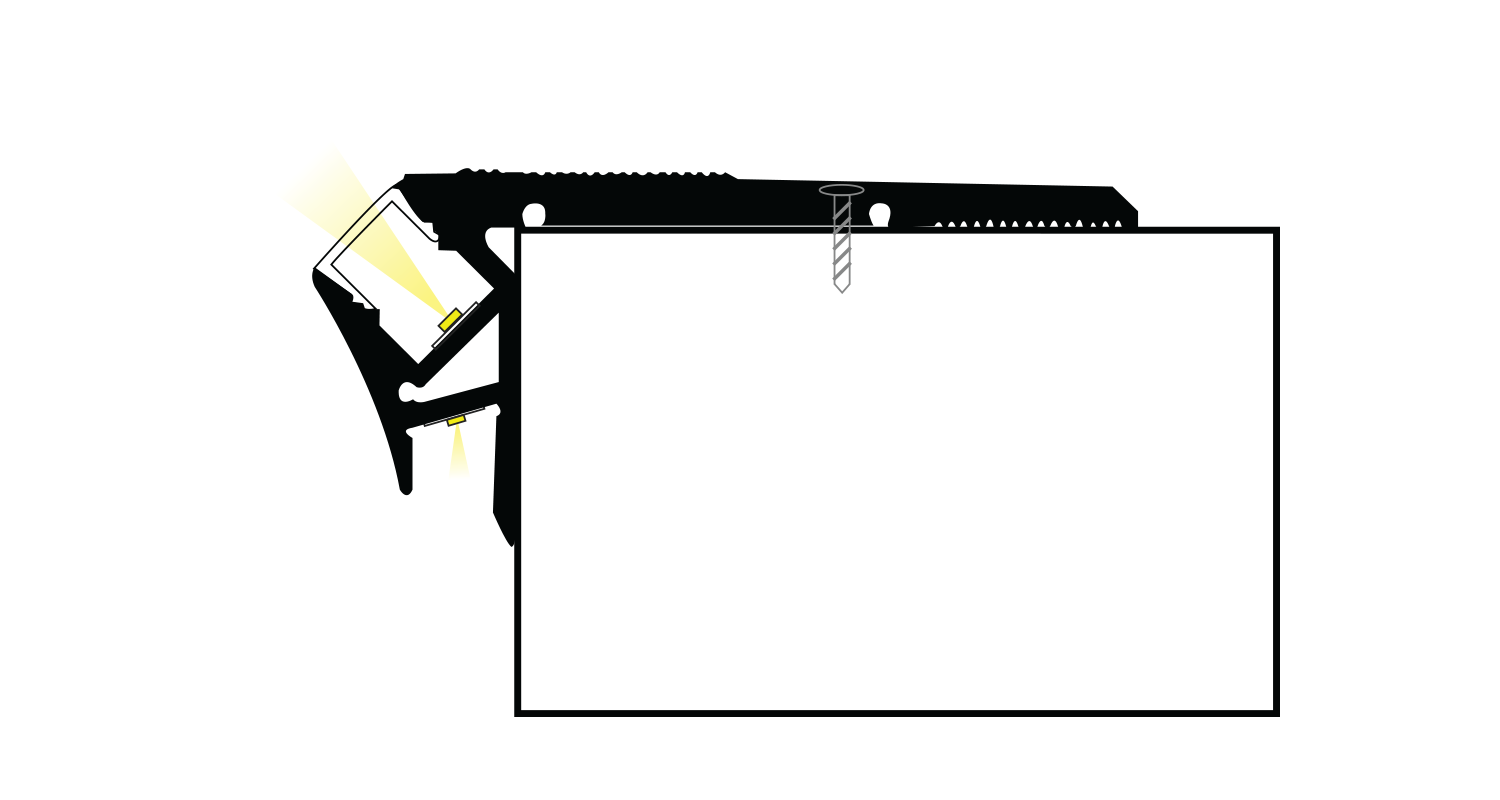

Installation: mounting on the step surface.
Cable output: from the end
Suit for Maximum 8mm width LED strip
Maximum 30W/m
IP rating: IP20 / IP67


Name Material Size Color
profile(1m) Aluminum - -
