- Code : NBAP - 3702
- Type : LED Profile
- Power/meter : 30W/meter

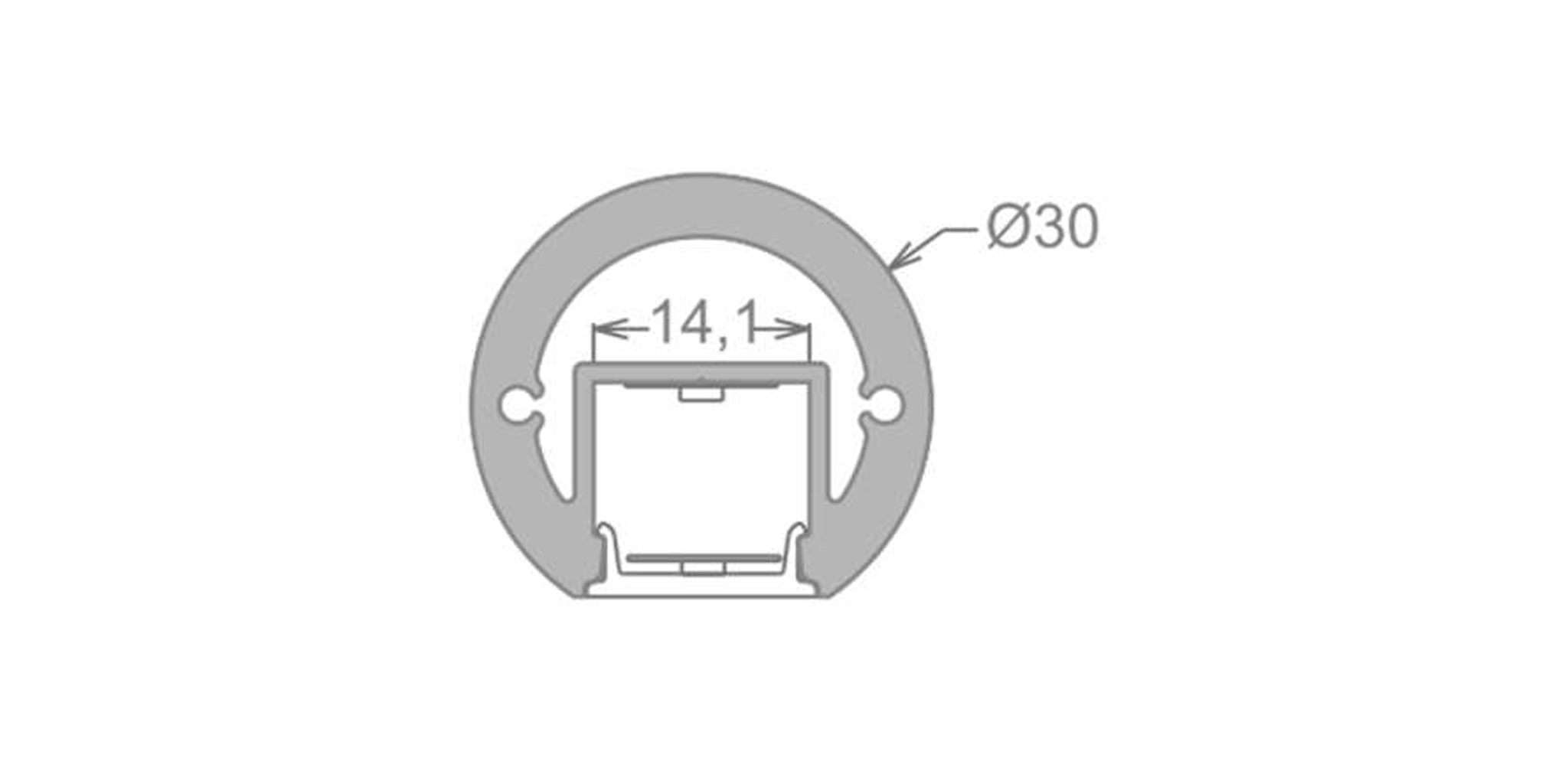

- Size : W30mm x H30mm
- Strip width : 14.1mm
- Max Length : 3000mm
- Material : Aluminum
Led Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
wardrobe light
linear light design, homogenious and dots free illumination

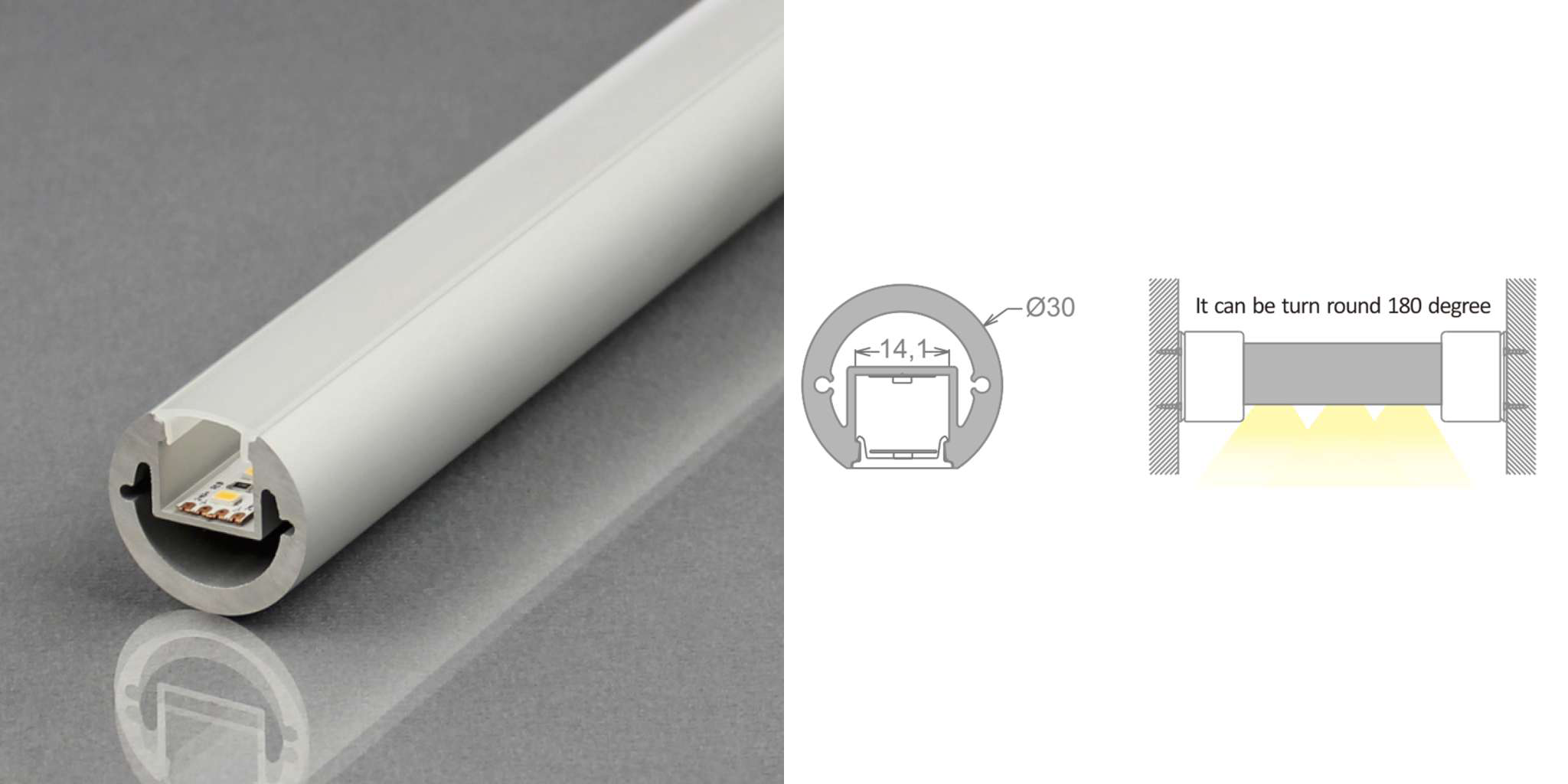

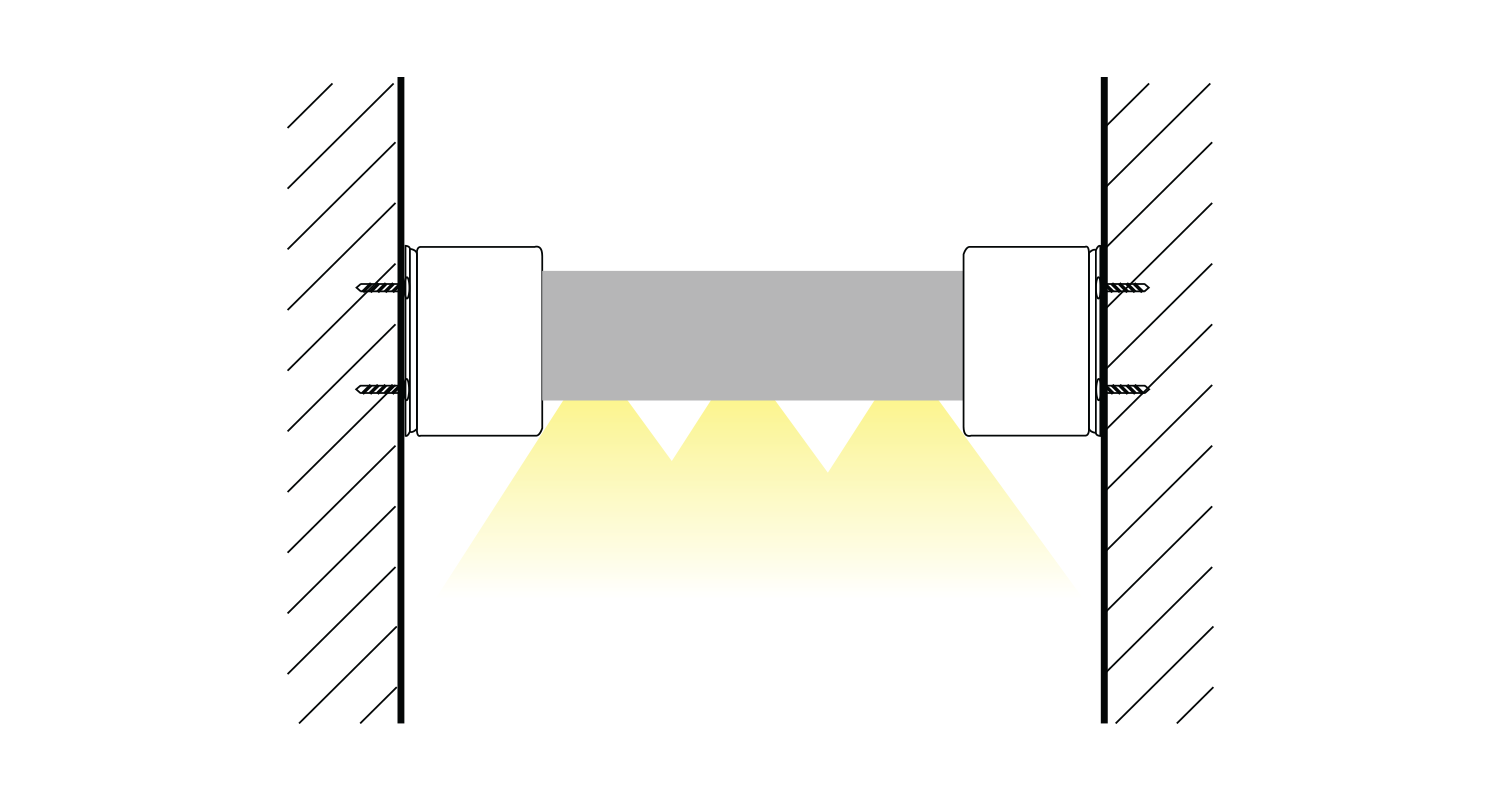

Installation: mounting on the both sides of wardrobe,
can be turned round 180 degree
Cable output: from the end or side
We suggest to use LED strip with
120pcs LED/m to avoid LED dots
IP rating: IP20
Maximum 30W/m
Maximum stand weight: 20kg/m
| Name | Material | Size | Color | Surface Treatment | ||
|---|---|---|---|---|---|---|
 |

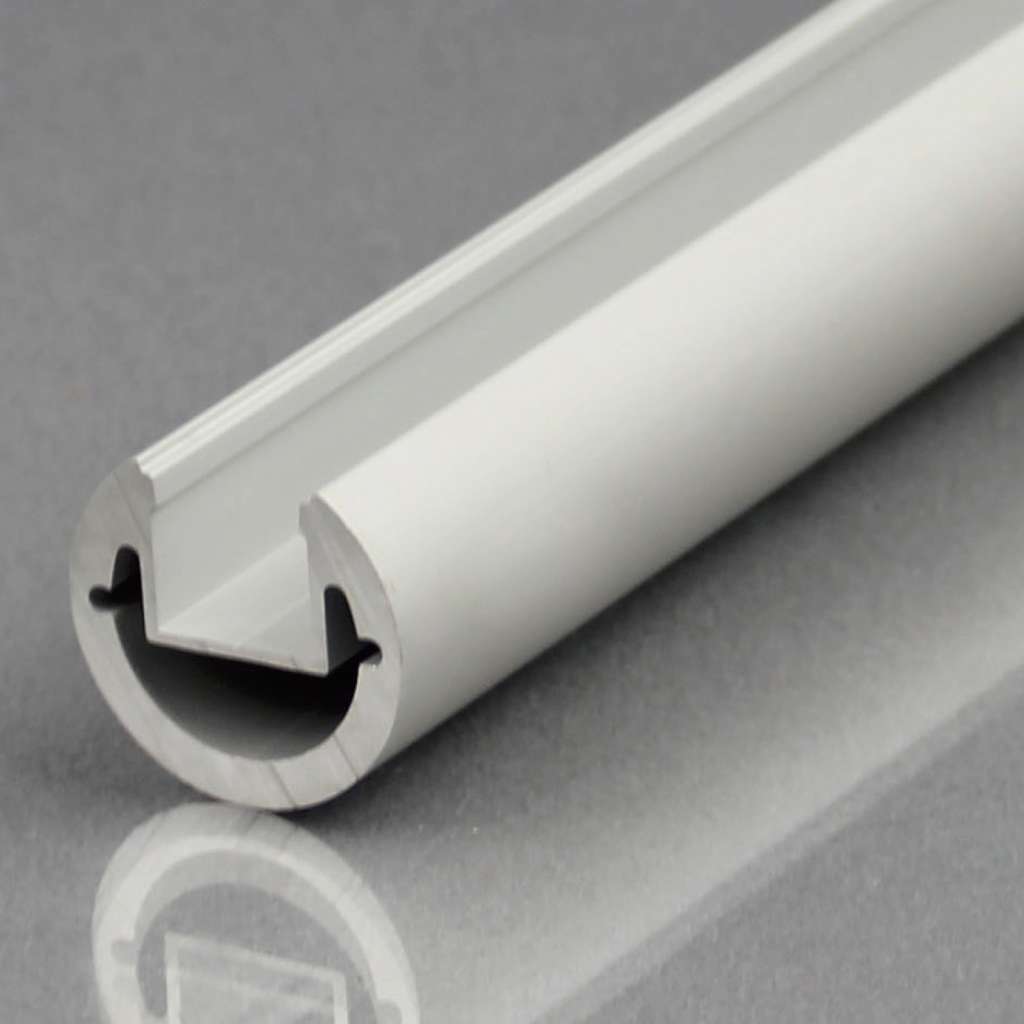

profile(1m) | Aluminum | - | - | - | |
 |

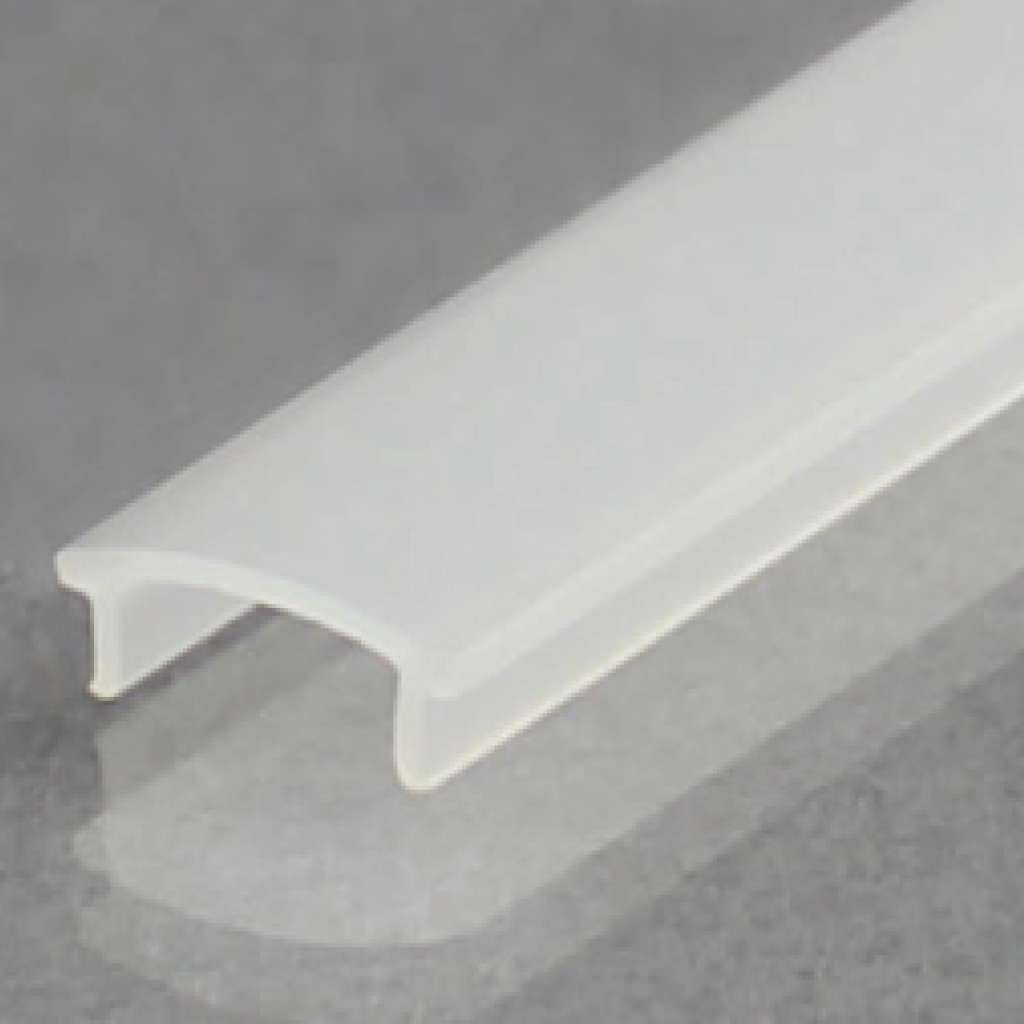

PC Cover(1m) | - | - | - | - | |
 |

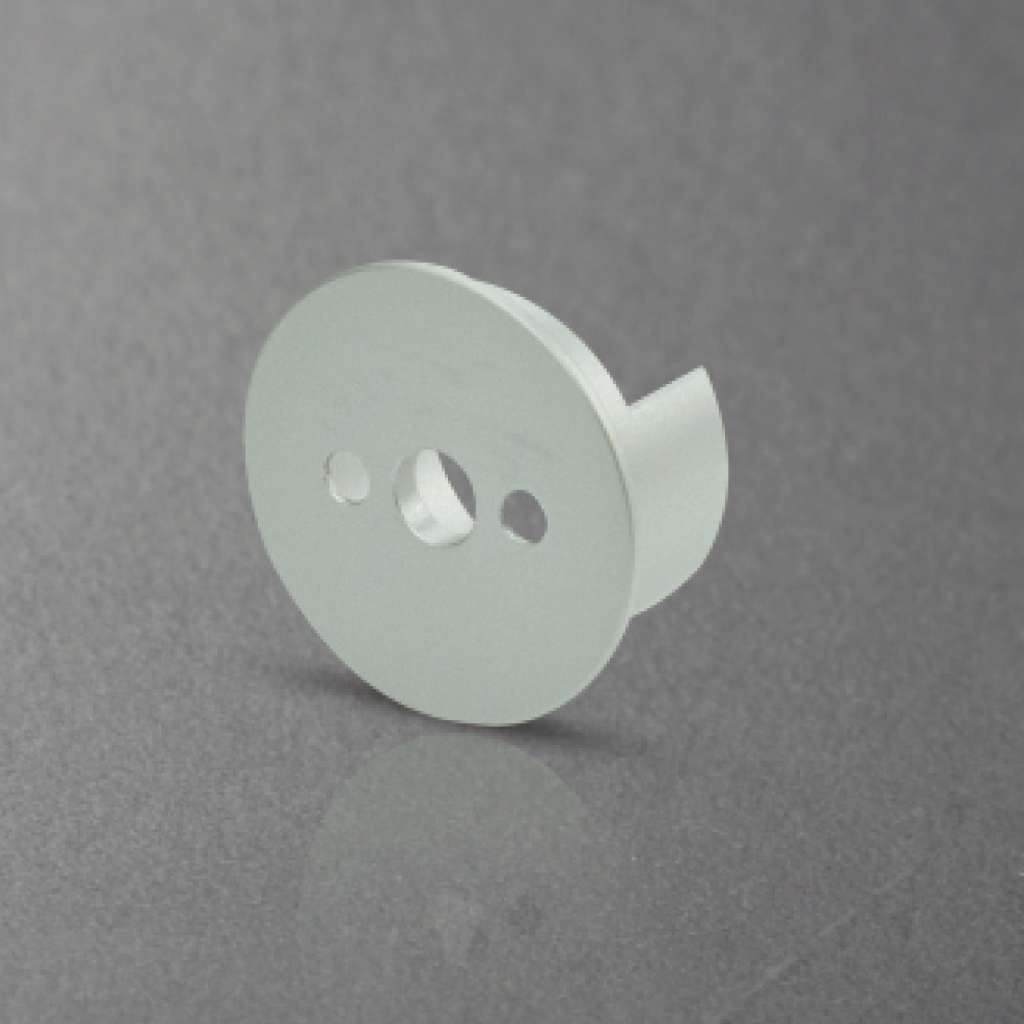

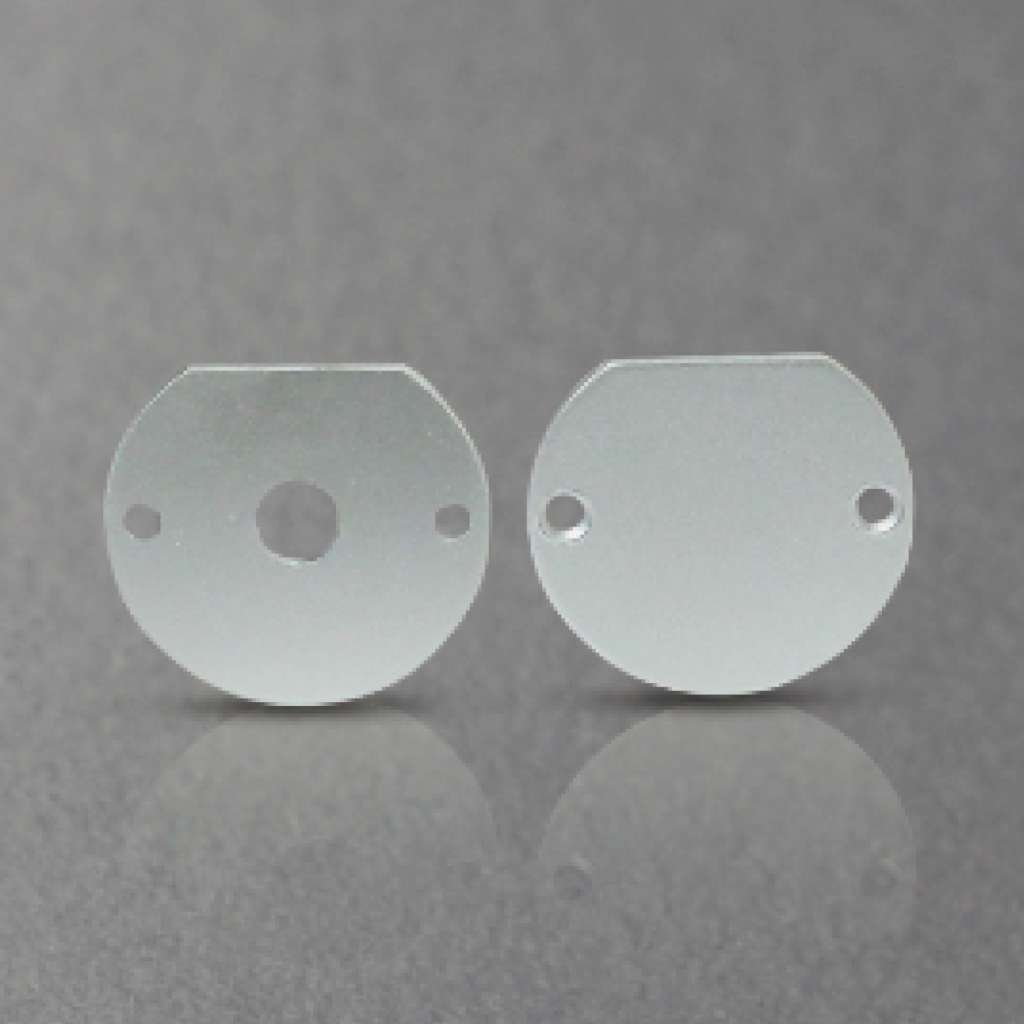

End cap | Alumium | - | - | - | |
 |

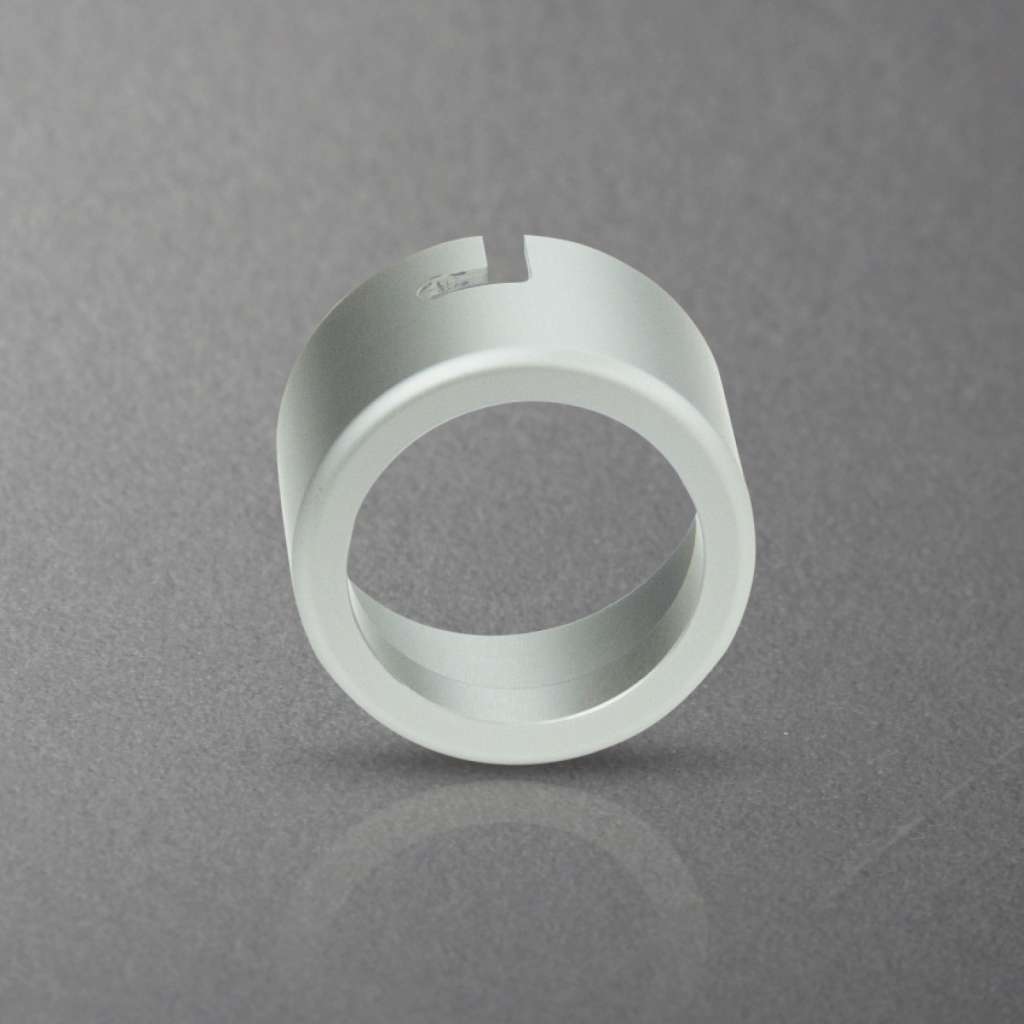

fixing holder | Alumium | - | - | - | |
 |

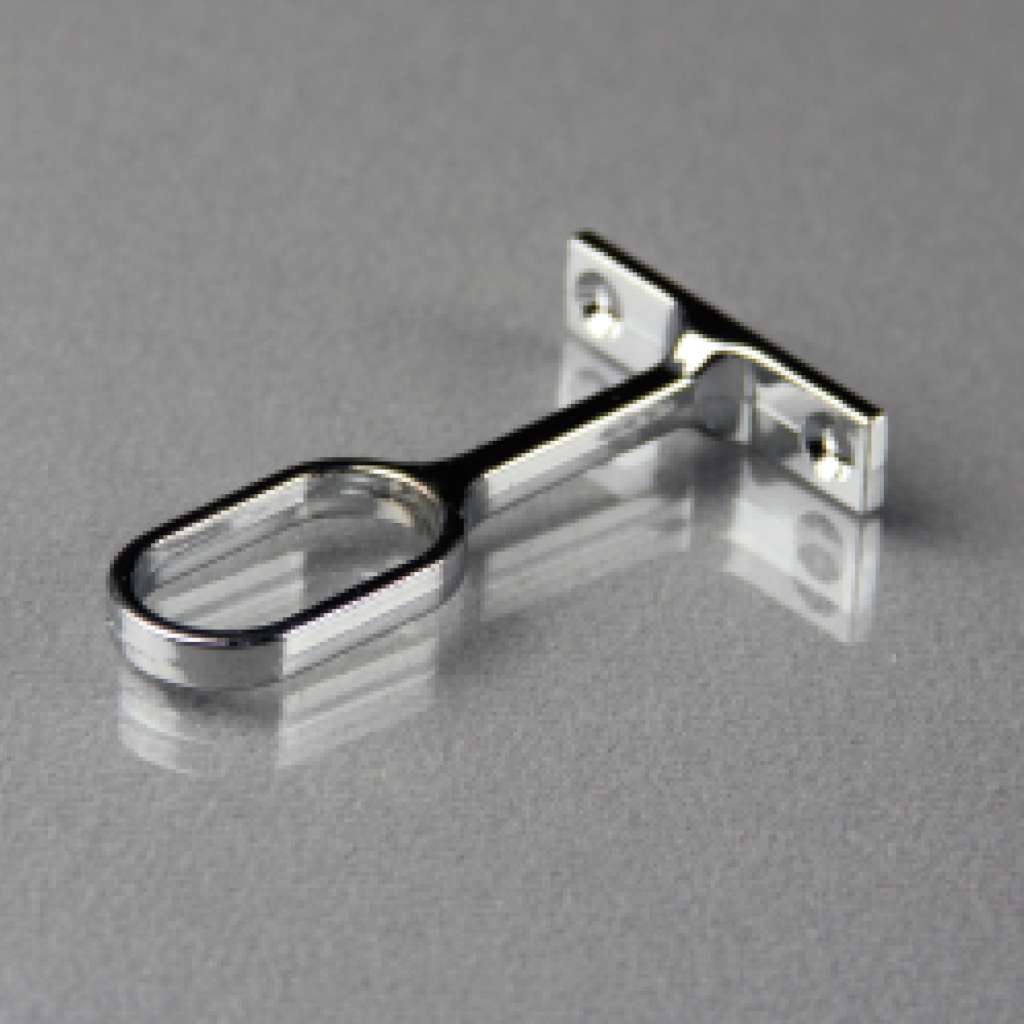

Centre Brackets | - | - | - | - | |
 |
fixing holder | - | - | - | - |
