- Code : NBAP - 3701
- Type : LED Profile
- Power/meter : 15W/meter

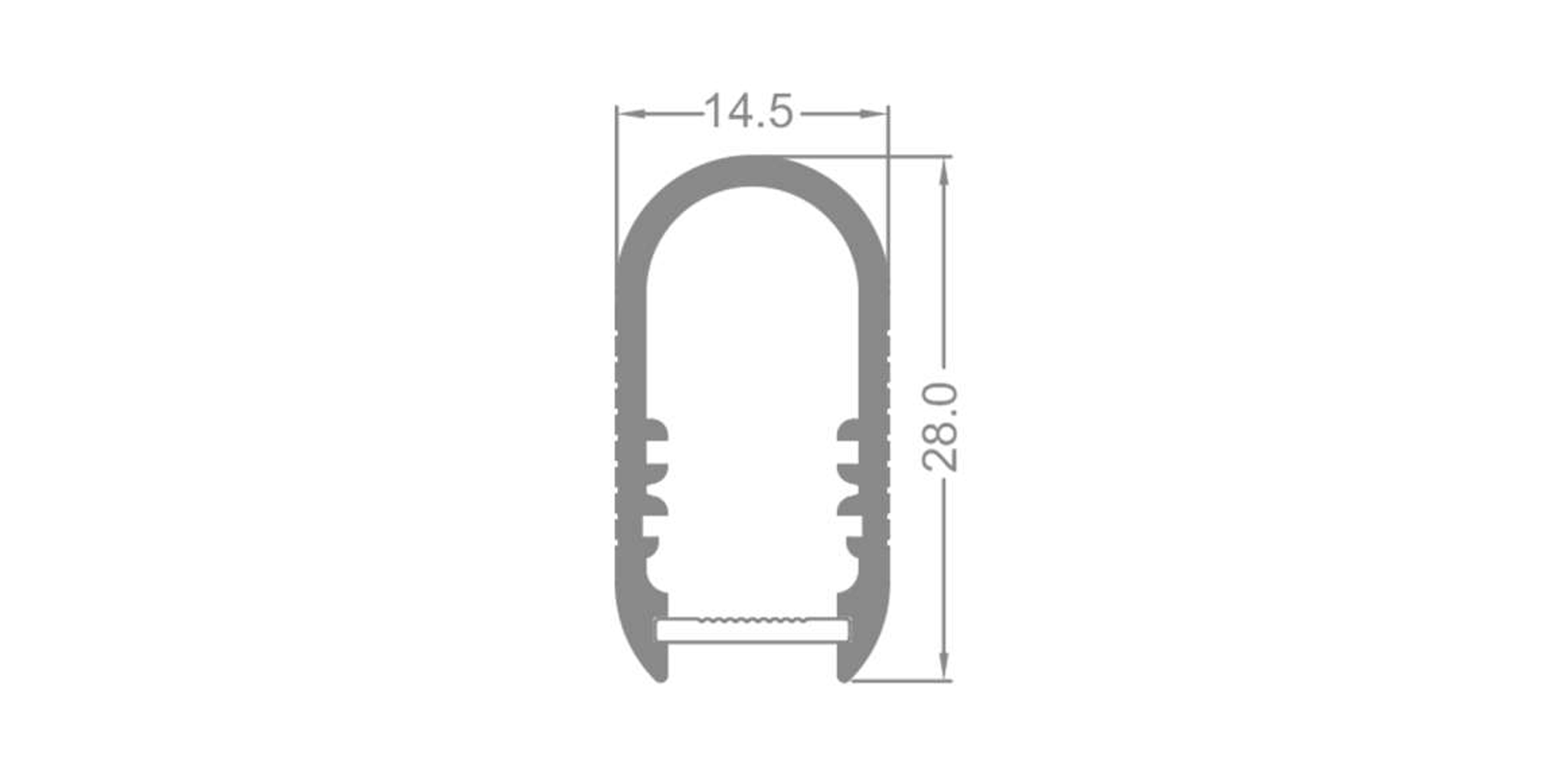

- Size : W15mm x H28mm
- Strip width : 10.2mm
- Max Length : 3000mm
- Material : Aluminum
Wardrobe Alu Led Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
wardrobe light
linear light design, homogenious and dots free illumination, body sensor is available.

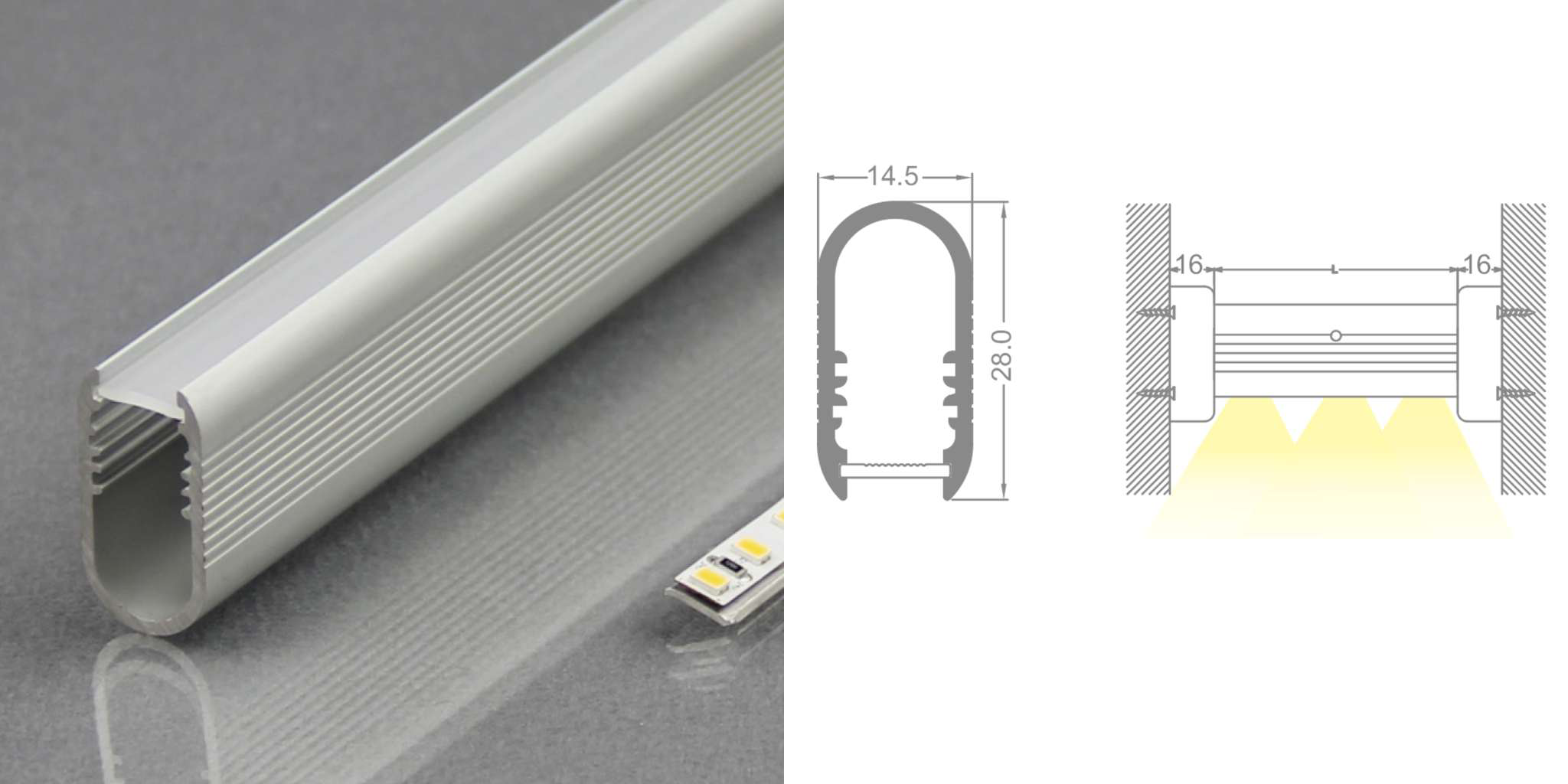

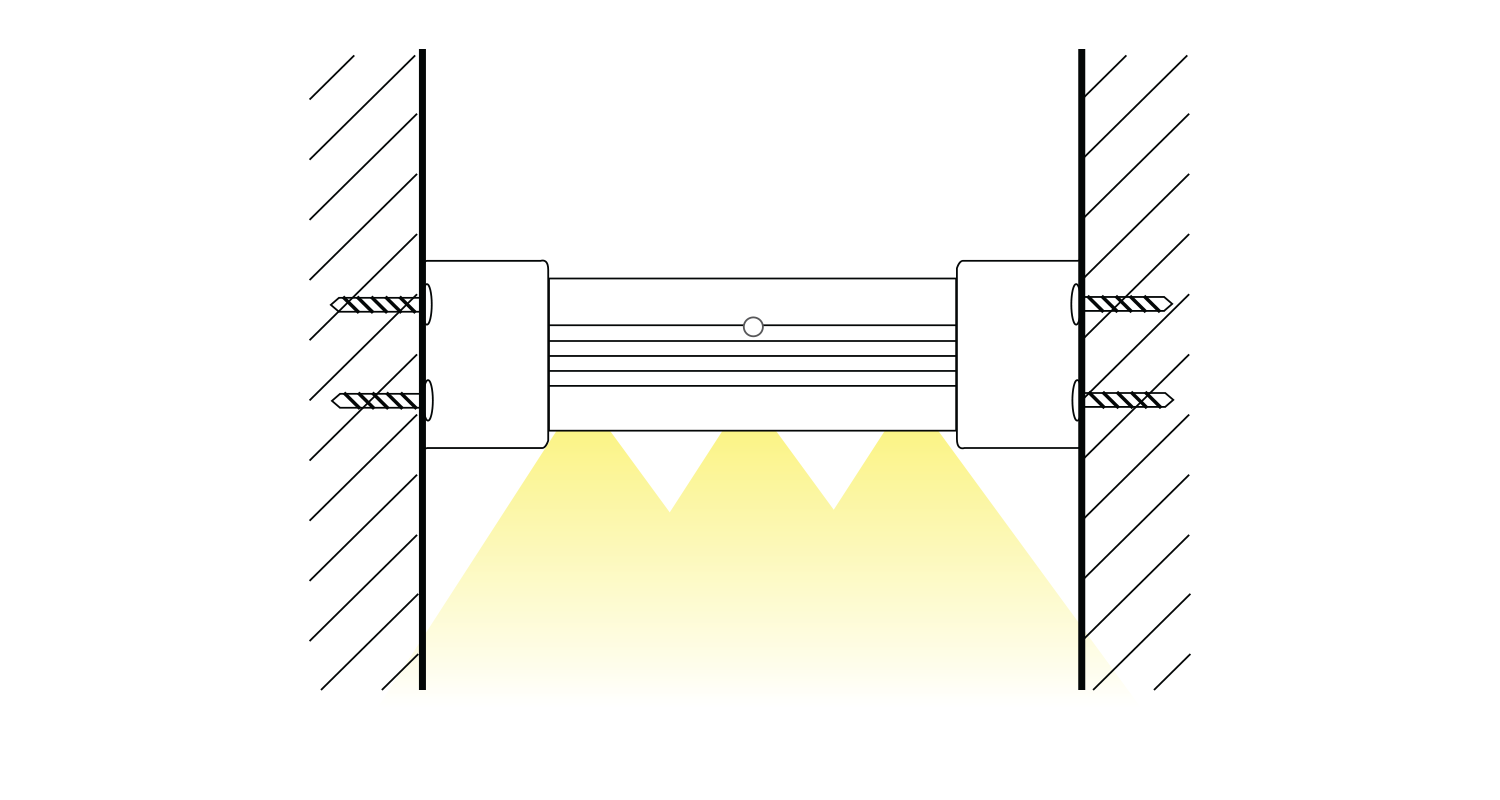

Installation: mounting on the both sides of wardrobe.
Cable output: from the end or bottom
IP rating: IP20
Maximum 15W/m
Maximum stand weight: 10kg/m
| Name | Material | Size | Color | Surface Treatment | ||
|---|---|---|---|---|---|---|
 |

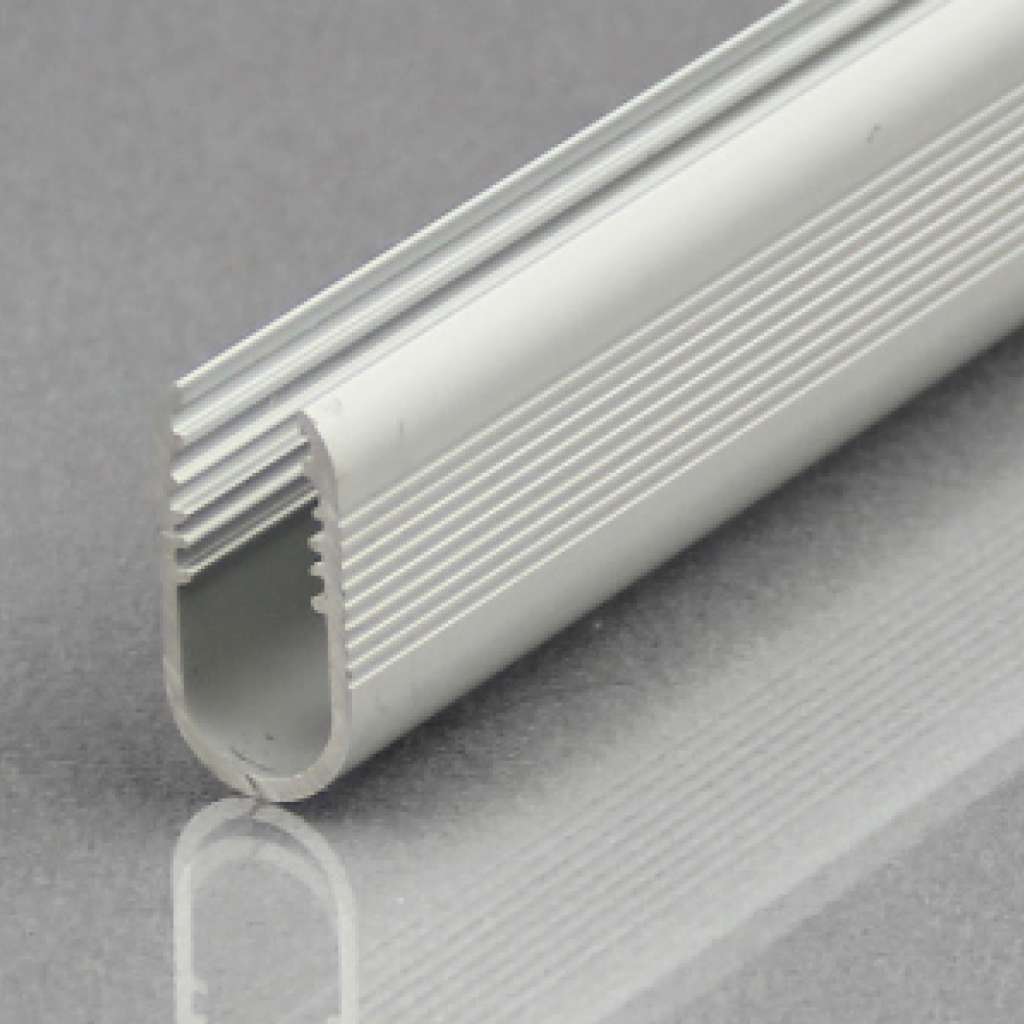

profile(1m) | Aluminum | - | - | - | |
 |

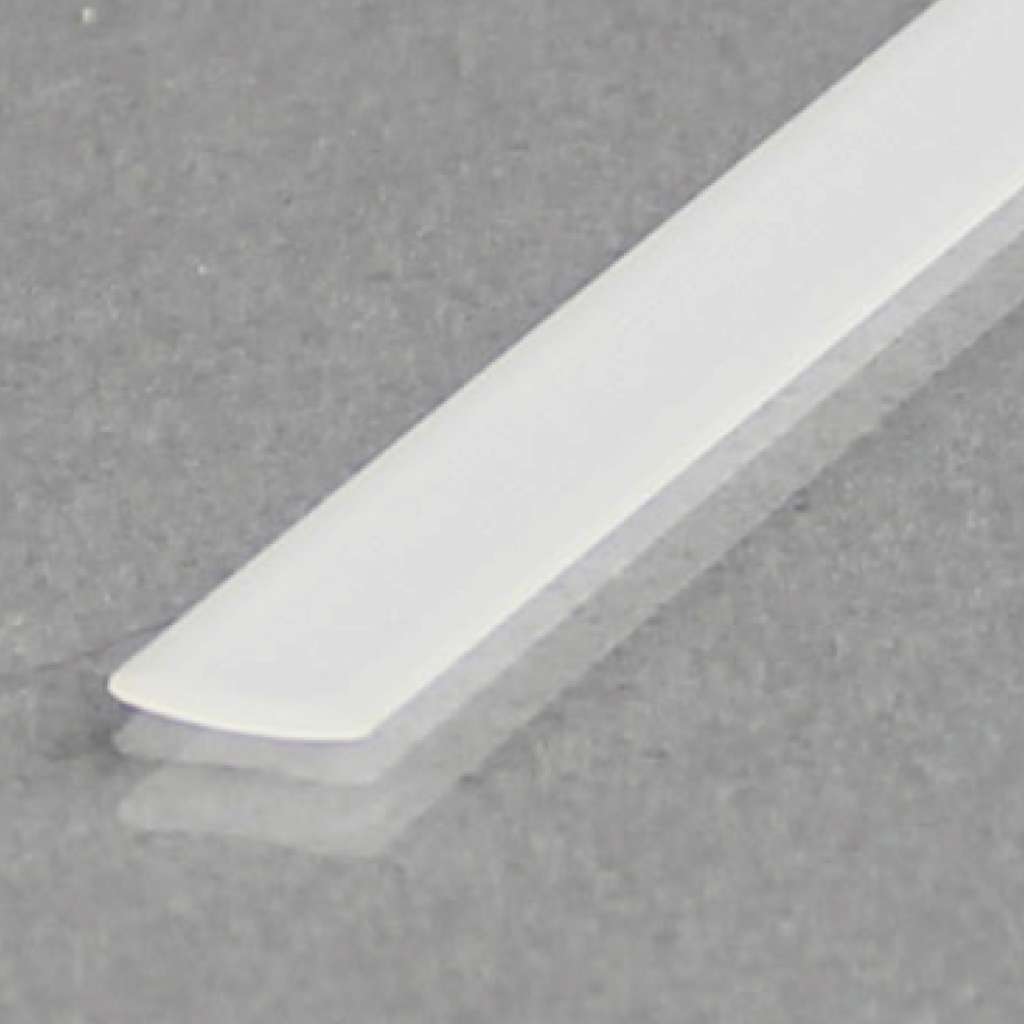

PC Cover(1m) | - | - | - | - | |
 |

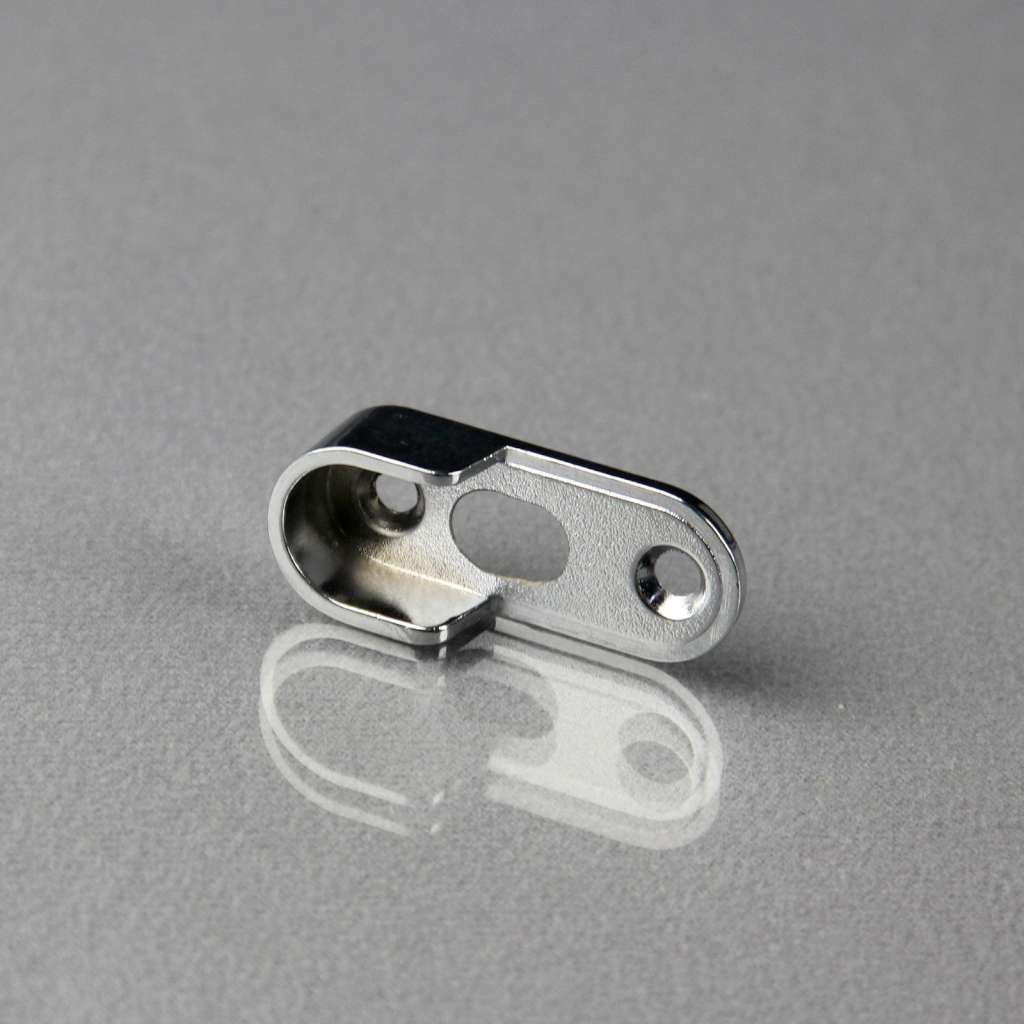

fixing holder | Alumium | - | - | - | |
 |

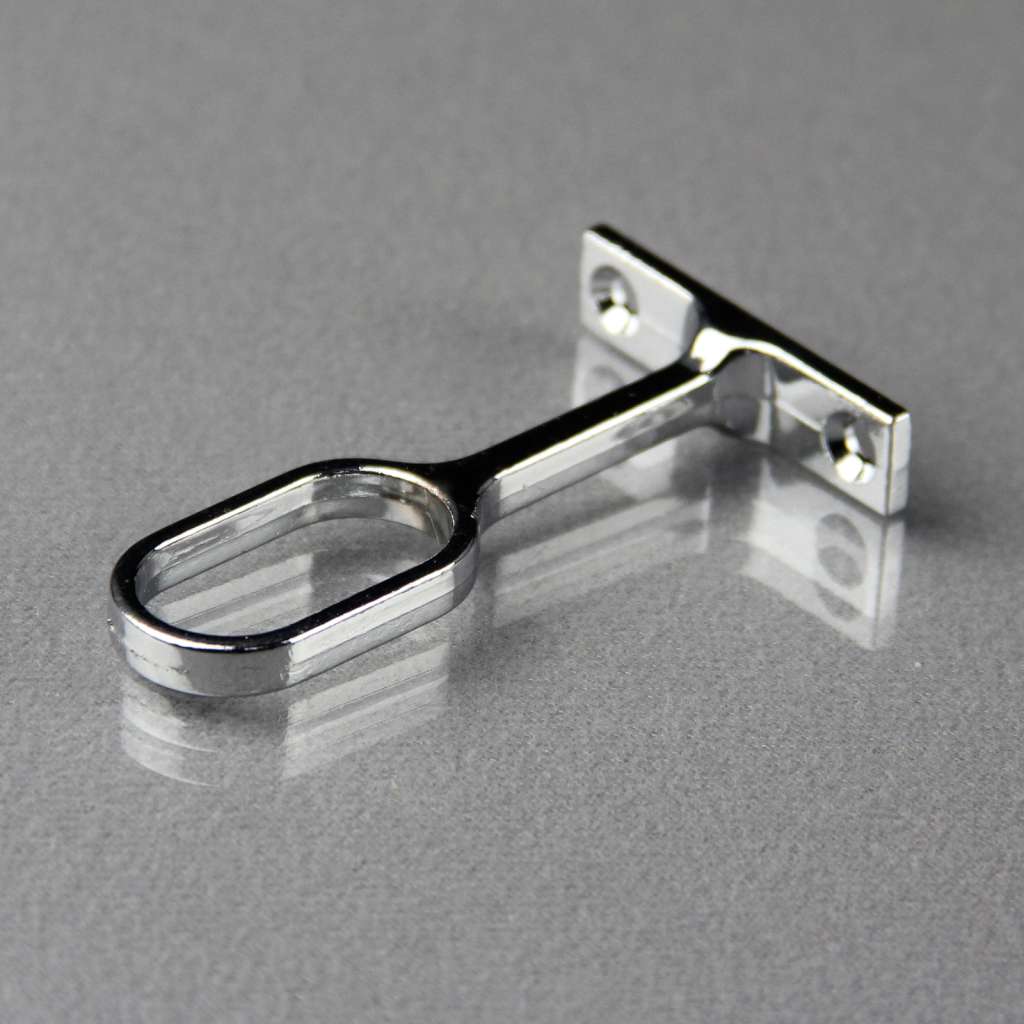

Centre Brackets | - | - | - | - | |
 |

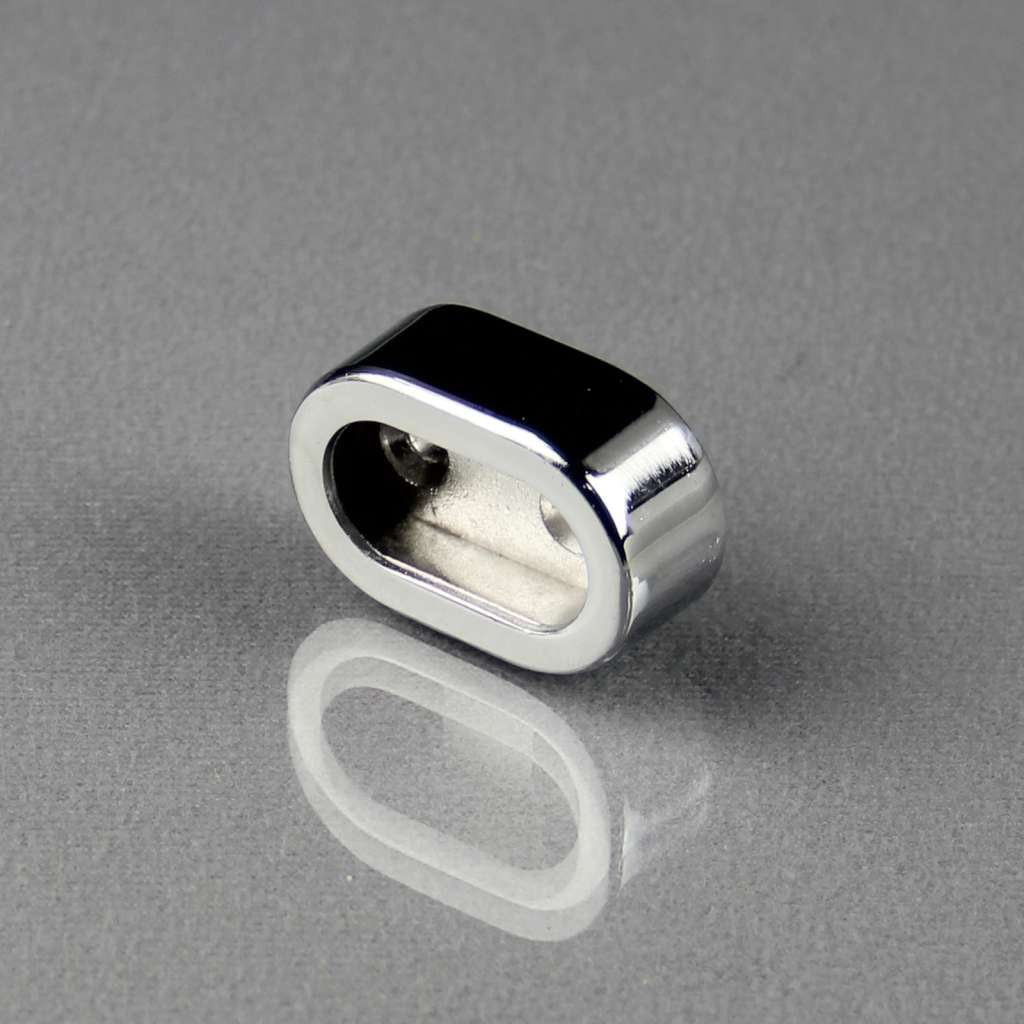

Fixing clip(thick) | - | - | - | - | |
 |

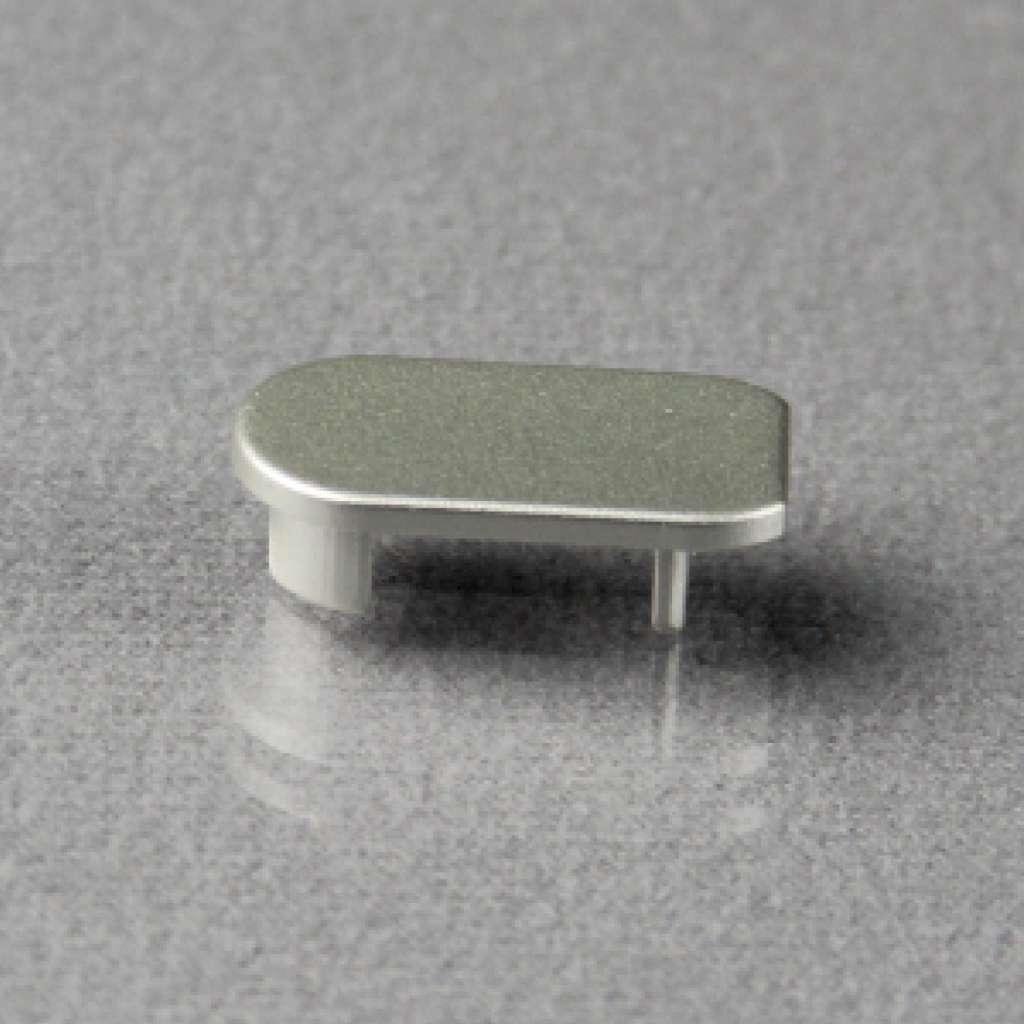

end cap | - | - | - | - |
