SPECIFICATIONS (제품 사양)
  •    Code : NBAP - 3302
  •    Type : LED Profile
  •    Power/meter : 15W/meter

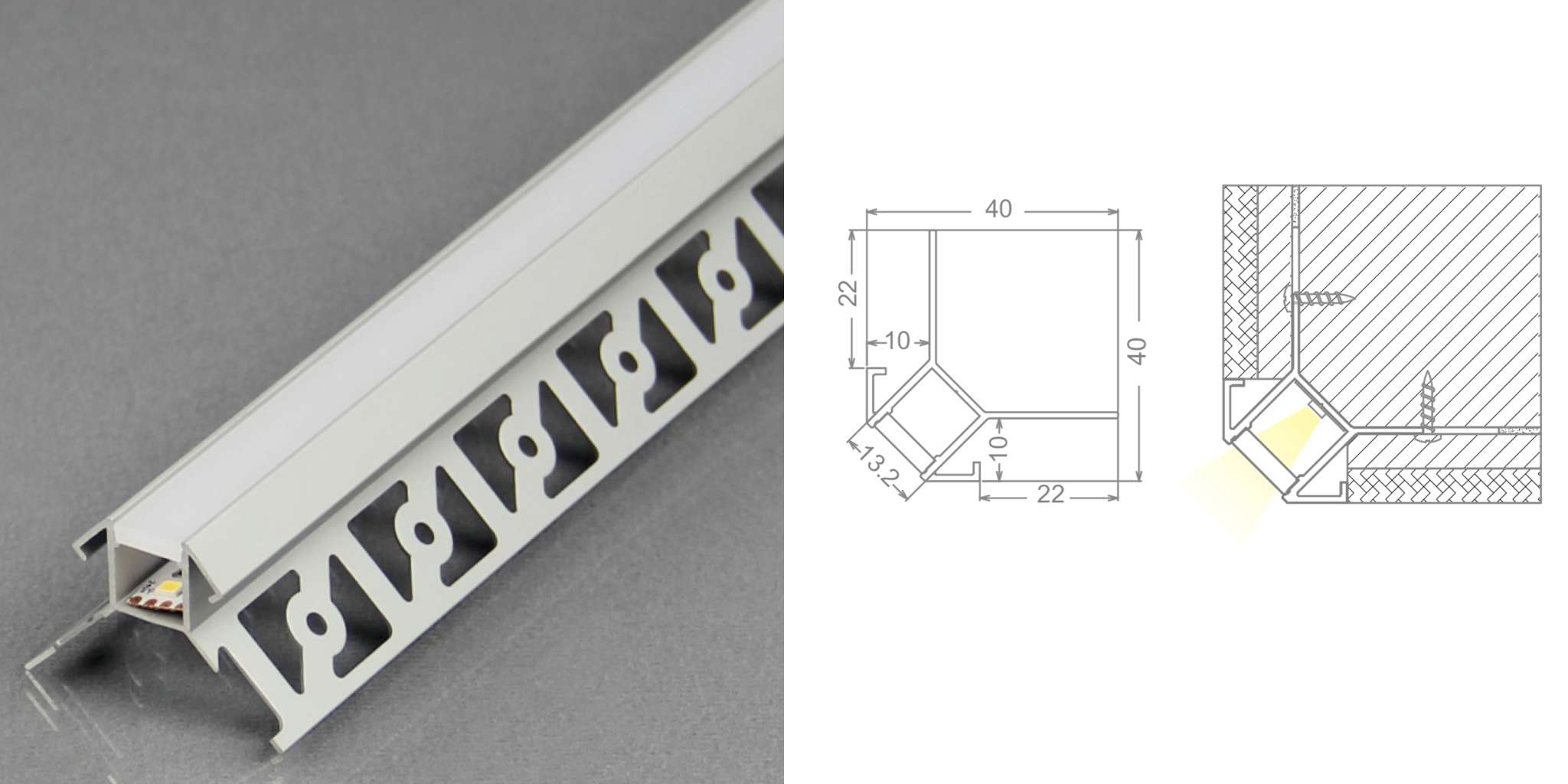

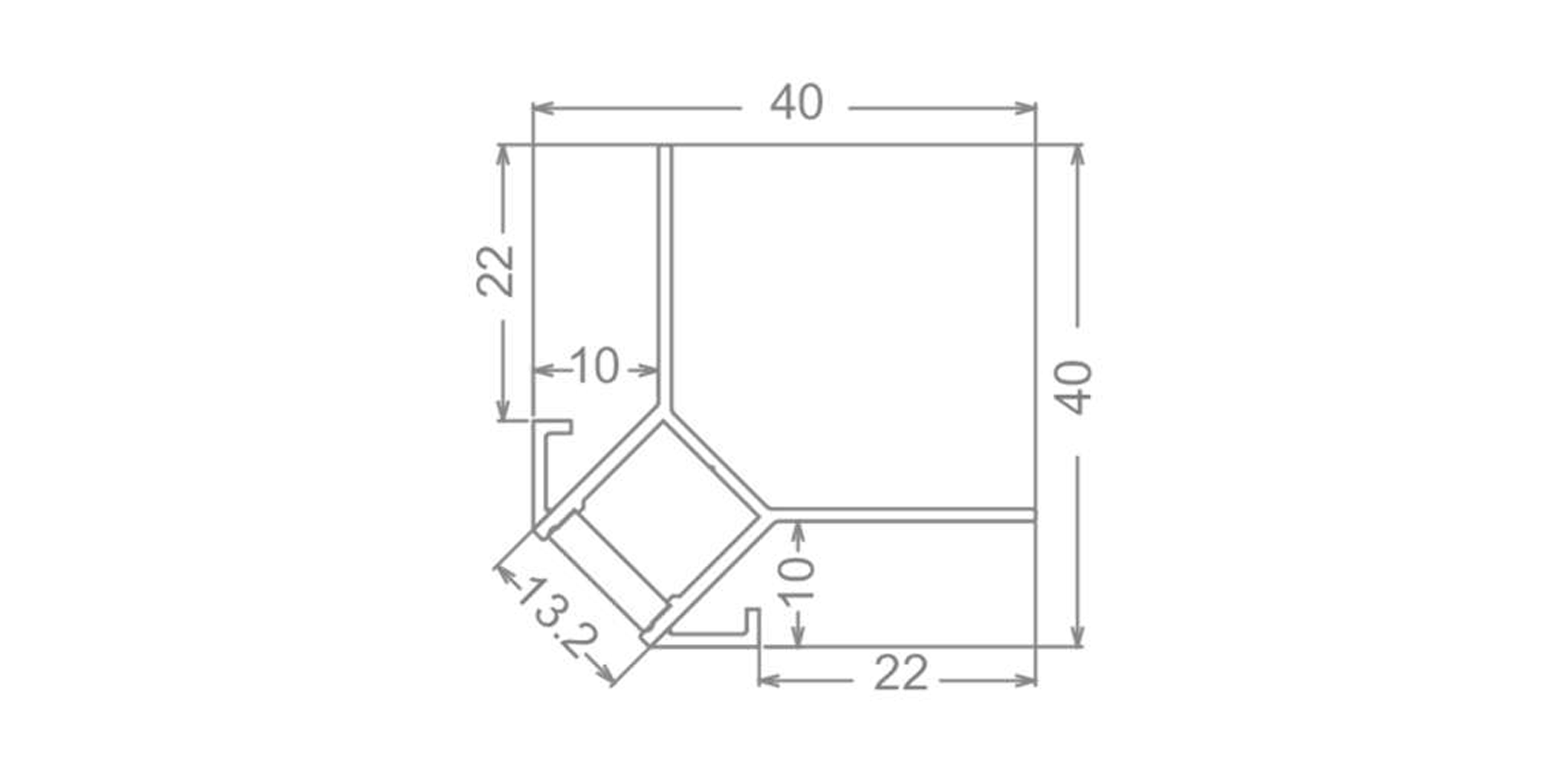

  •    Size : W40mm x H40mm
  •    Strip width : 10.8mm
  •    Max Length : 3000mm
  •    Material : Aluminum

Description

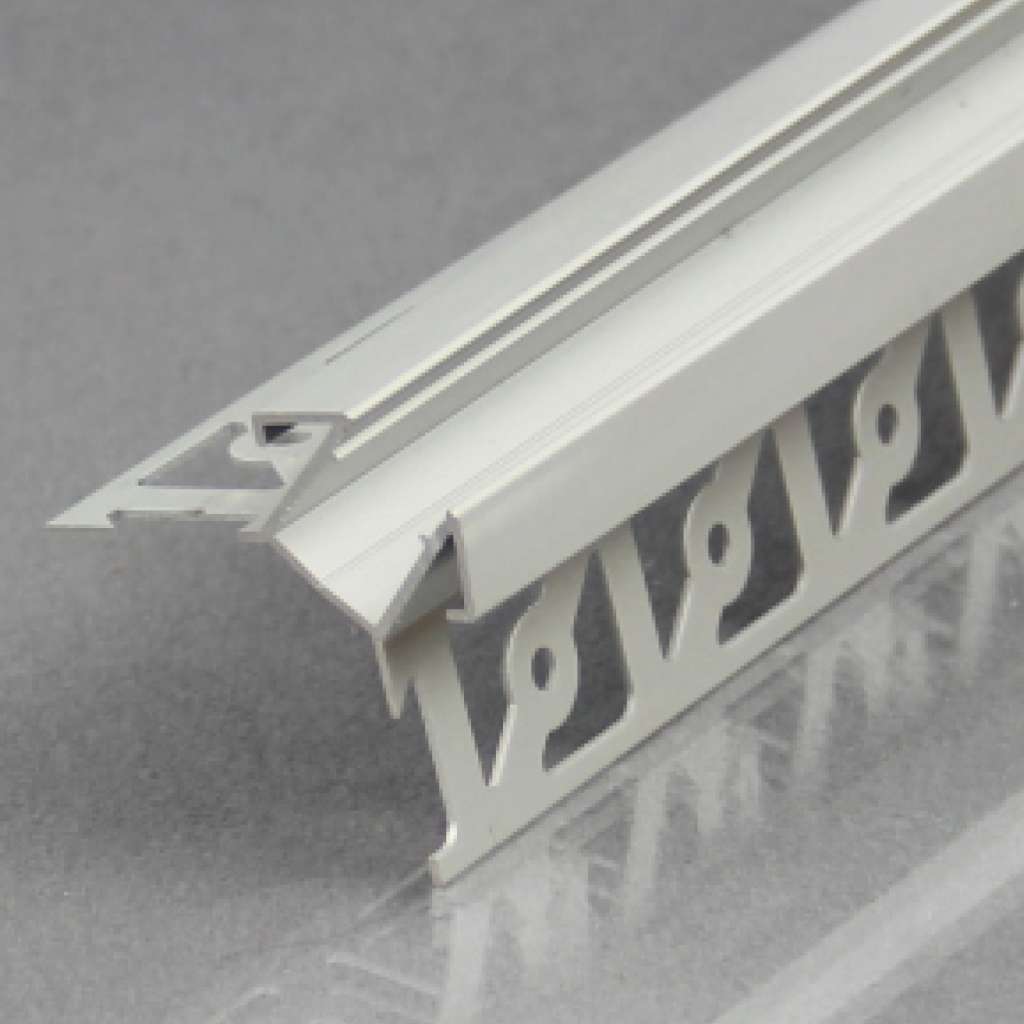

Plaster construction LED Profile

Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.

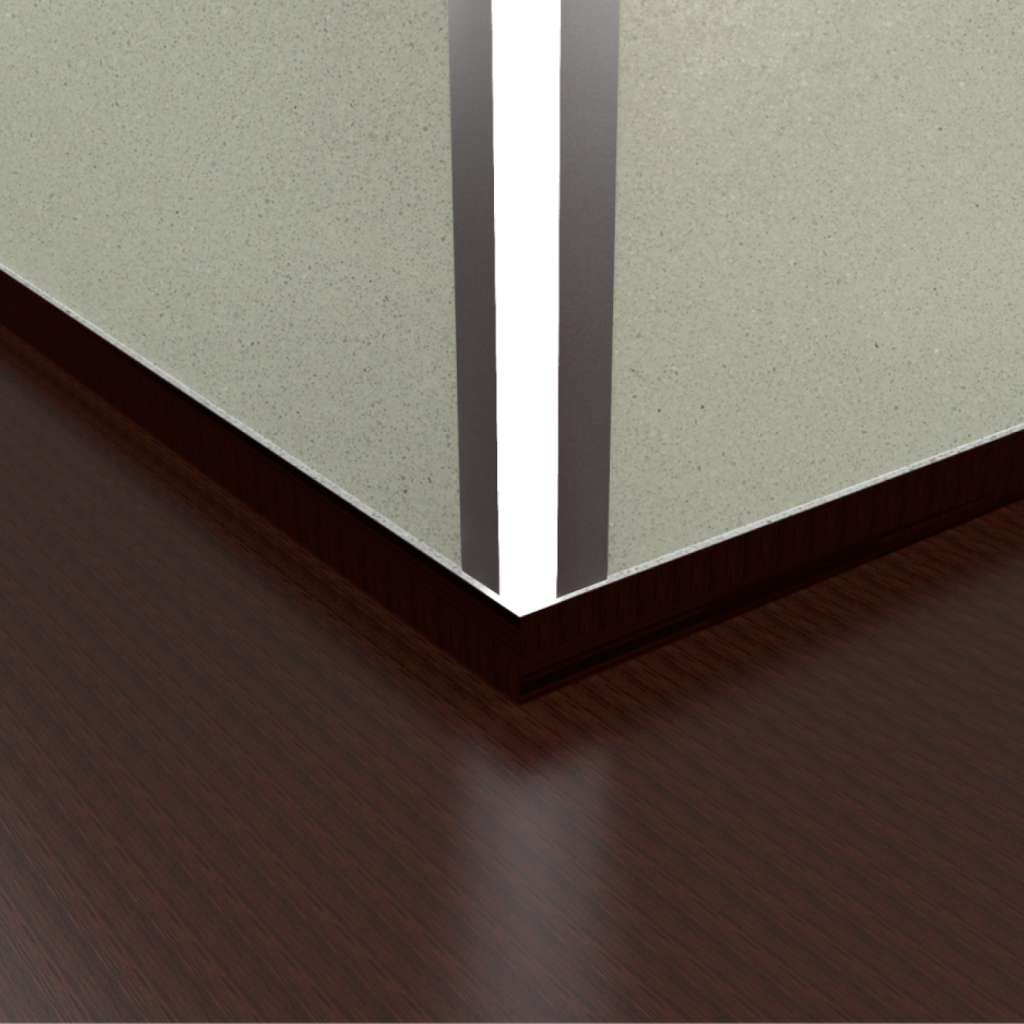

home or commercial out-corner decoration light
linear design, homogenious and dots free

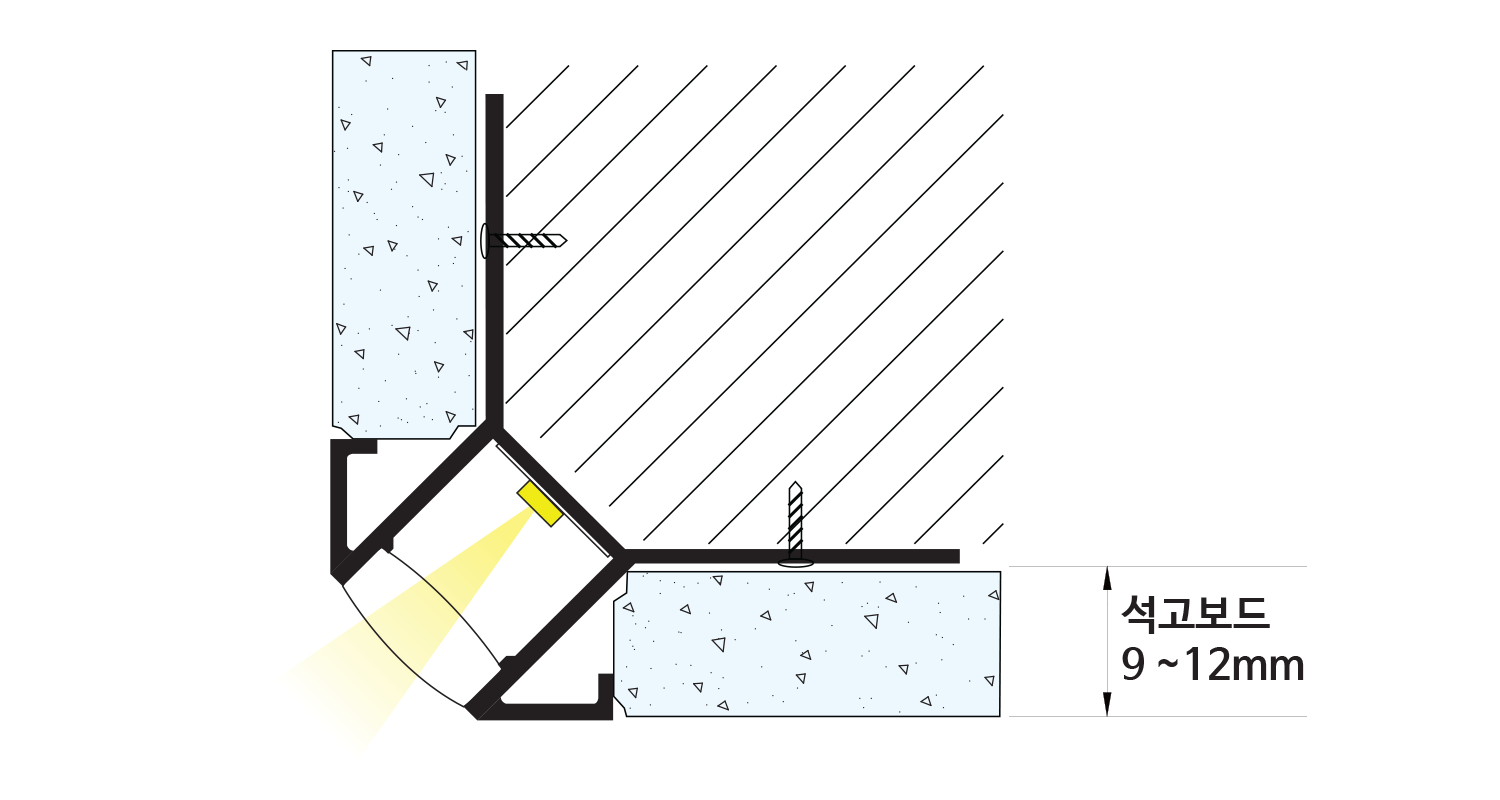

Installation: recessed and covered with plaster or ceramic
Cable output: from the end or side
Suit for 10mm width LED strip
Maximum 15W/m
IP rating: IP20/IP67

Accessories

Name Material Size Color
profile(1m) Aluminum - -

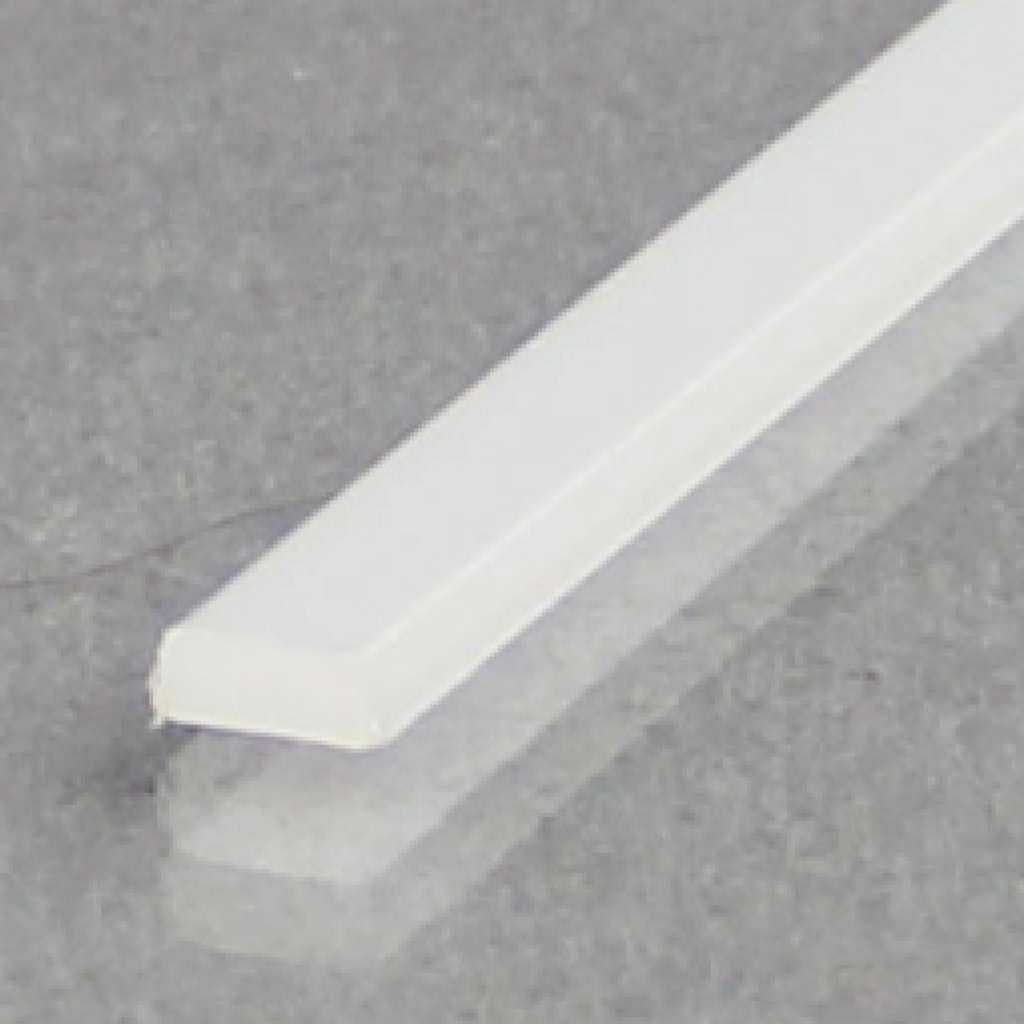

PC Cover(1m) - - -

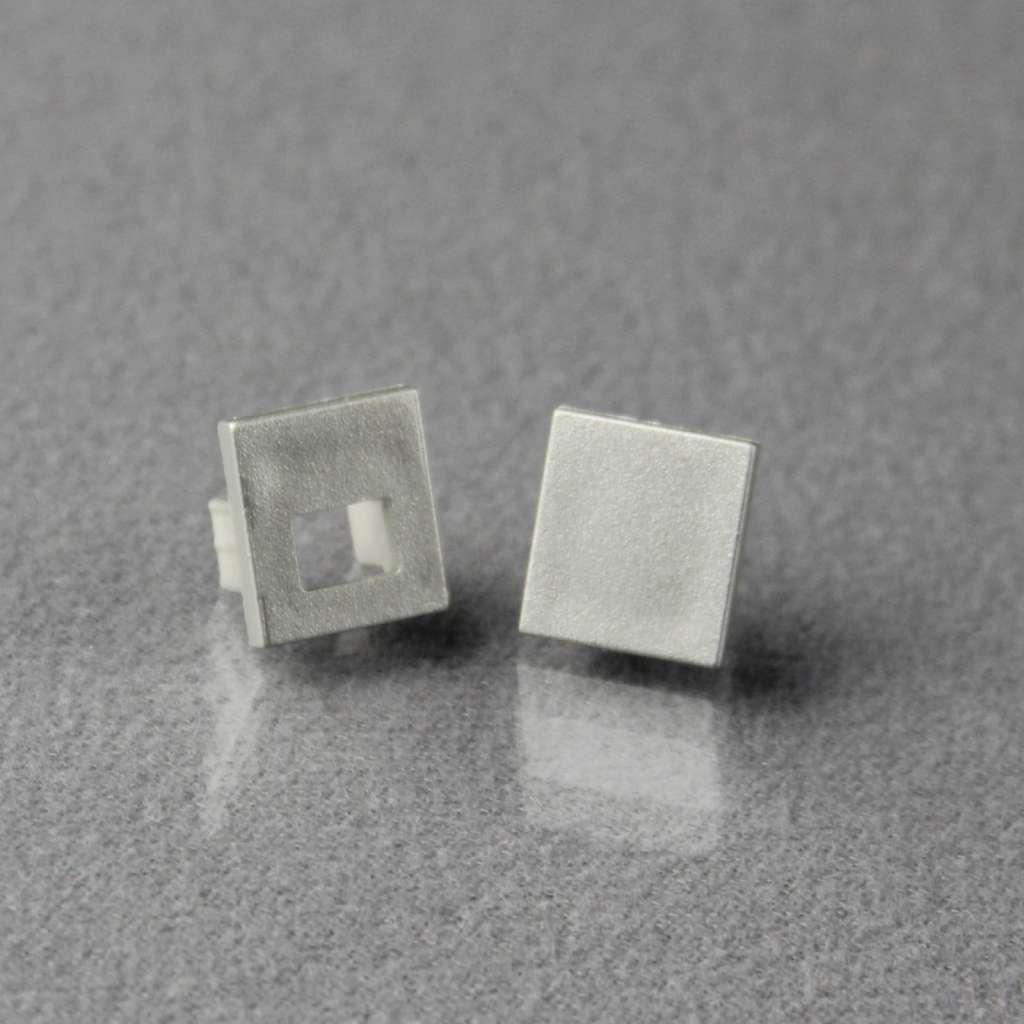

End cap - - -
