- Code : NBAP - 20
- Type : LED Profile
- Power/meter : 30W/meter

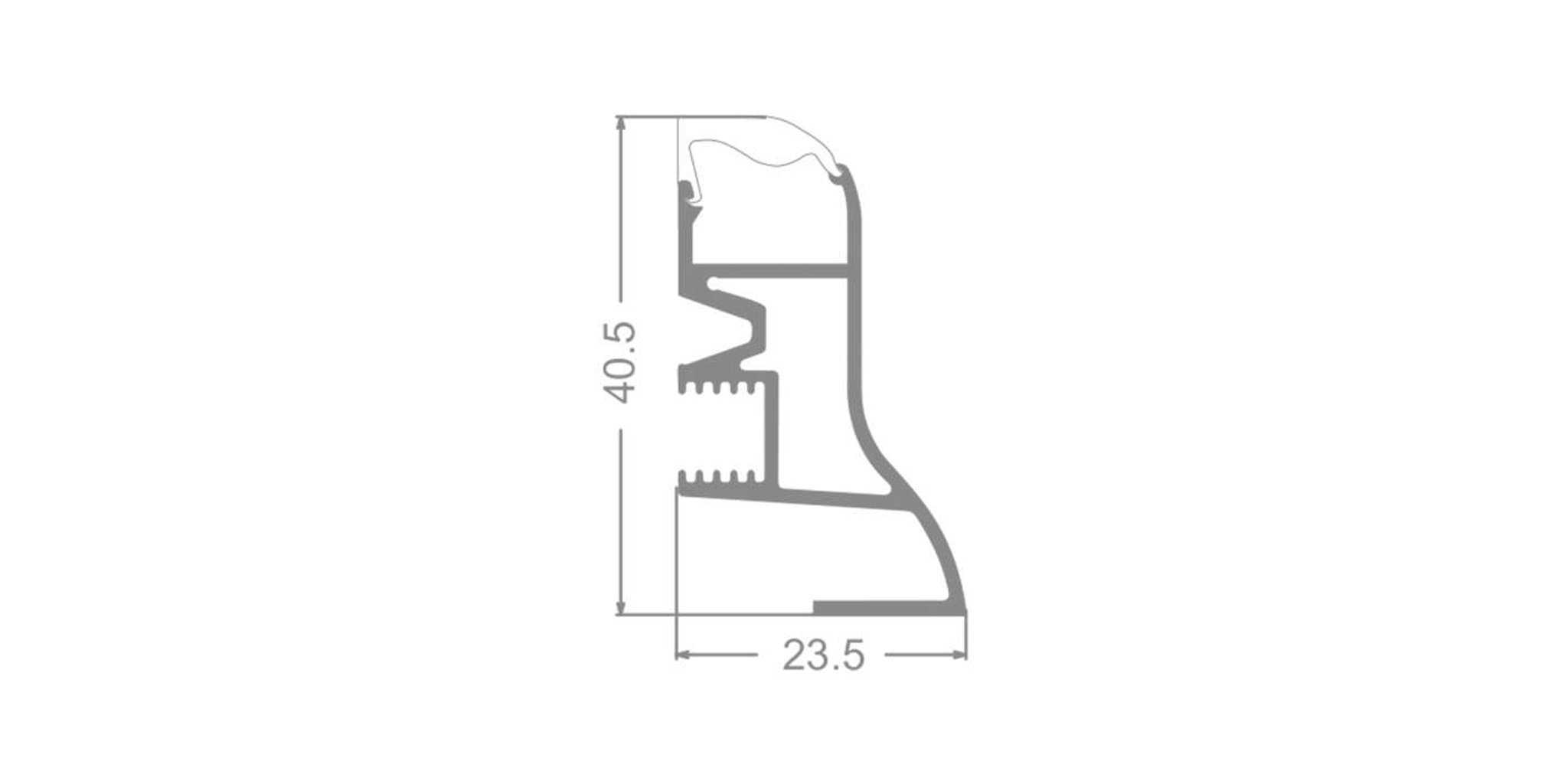

- Size : W24mm x H41mm
- Strip width : 12.5mm
- Max Length : 3000mm
- Material : Aluminum

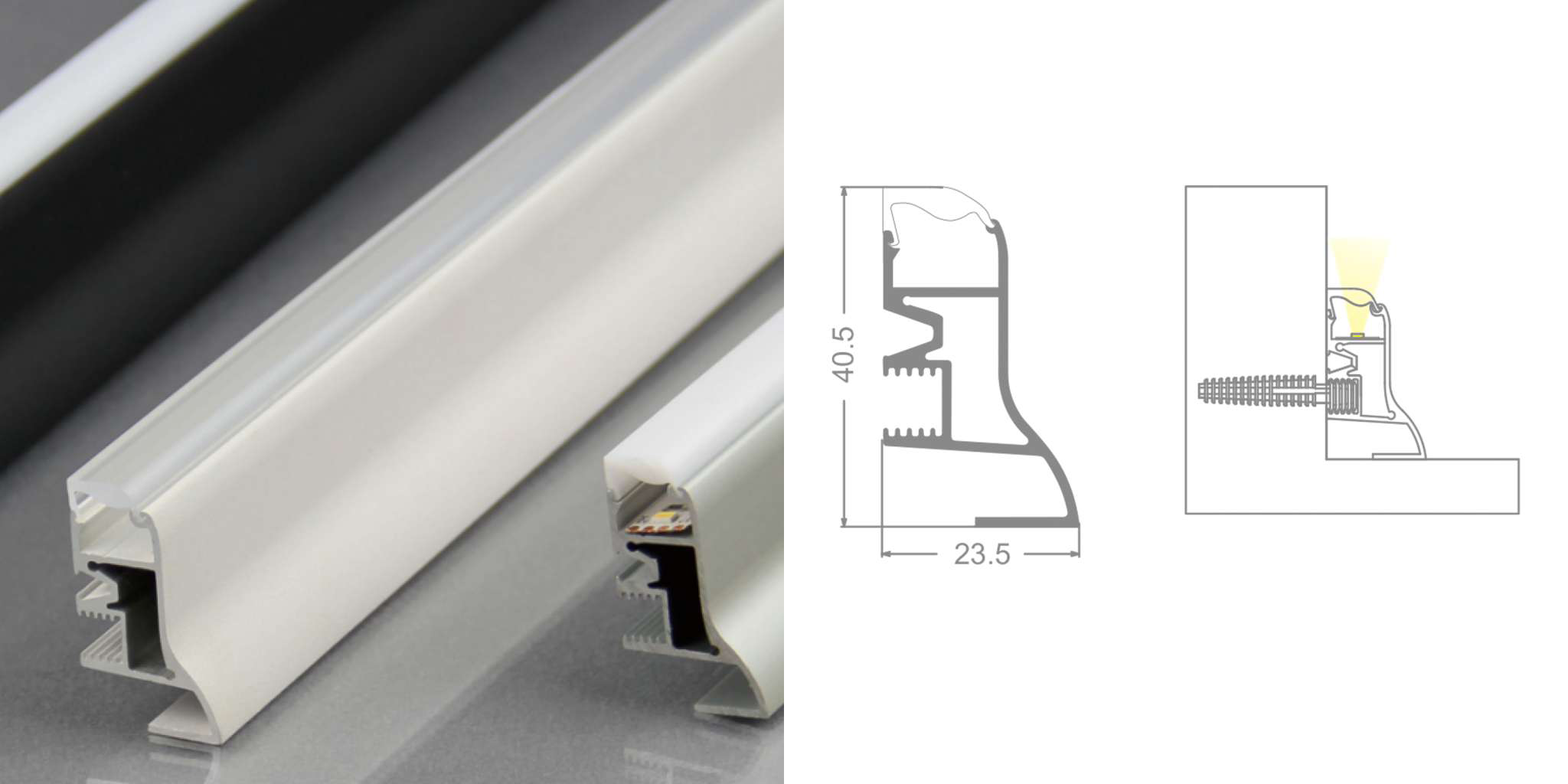

Skirting Board Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
Skirting board light
small beam angle with wall washer effect

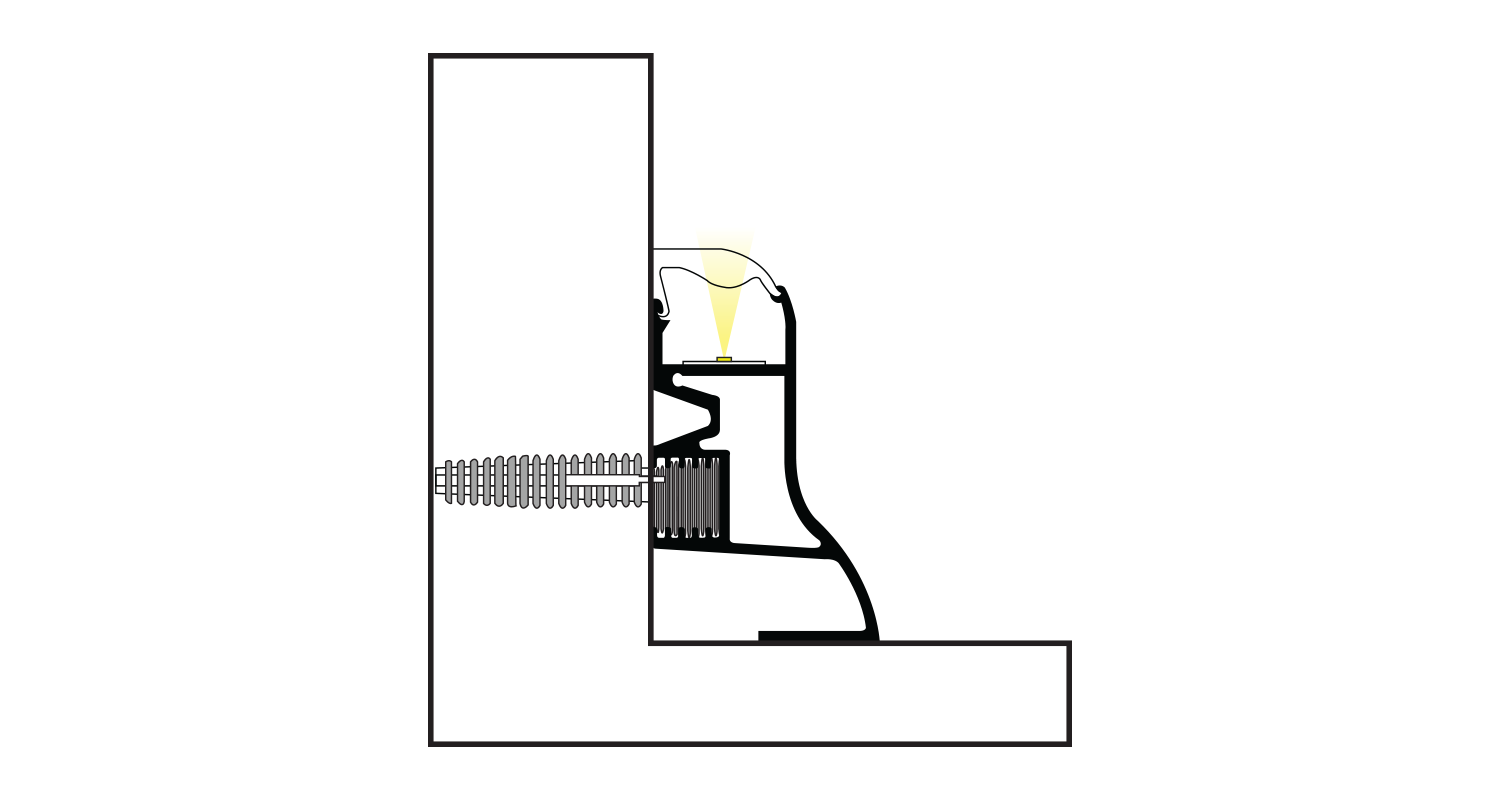

Installation: mounting on the wall skirting board.
Cable output: from the side
Suit for Maximum 10mm width LED strip
Maximum 30W/m
IP rating: IP20 / IP67
| Name | Material | Size | Color | ||
|---|---|---|---|---|---|
 |

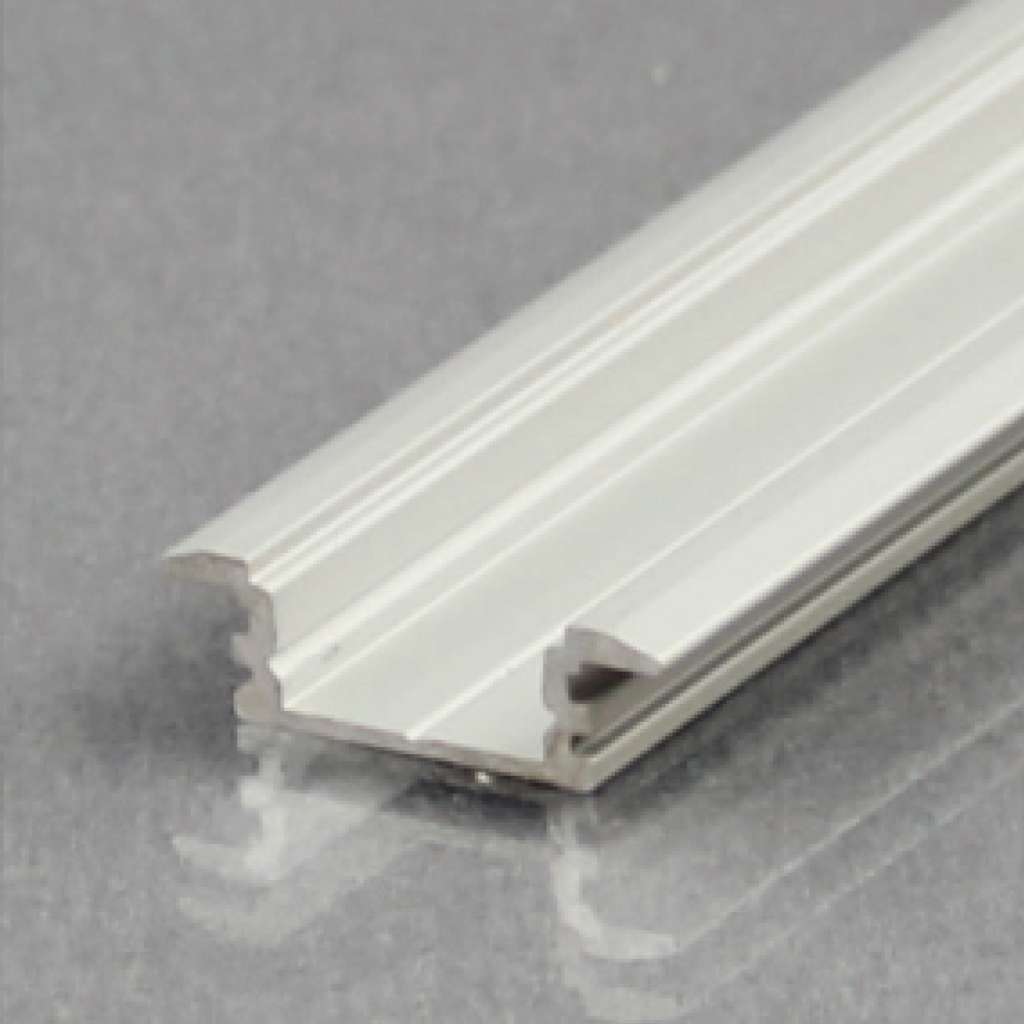

profile(1m) | Aluminum | - | - | |
 |

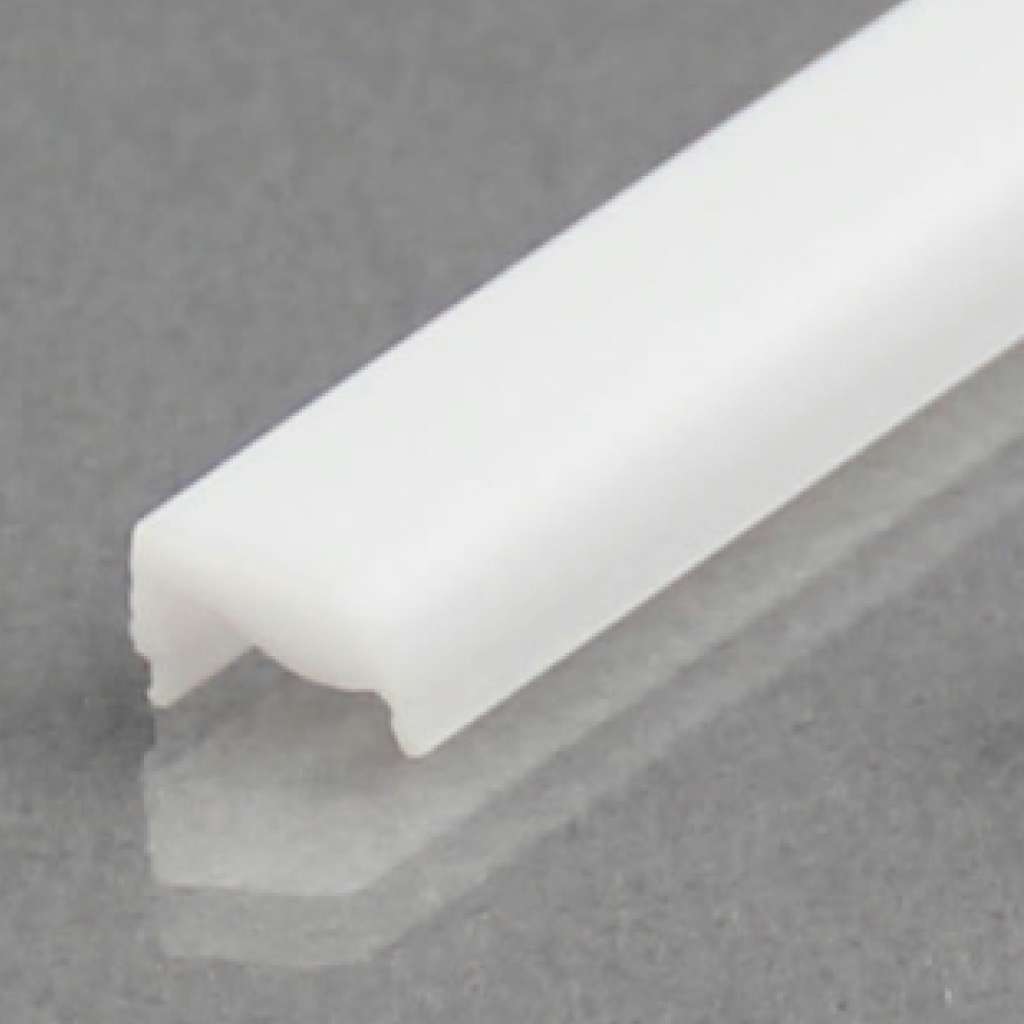

PMMA Cover(1m) | - | - | - | |
 |

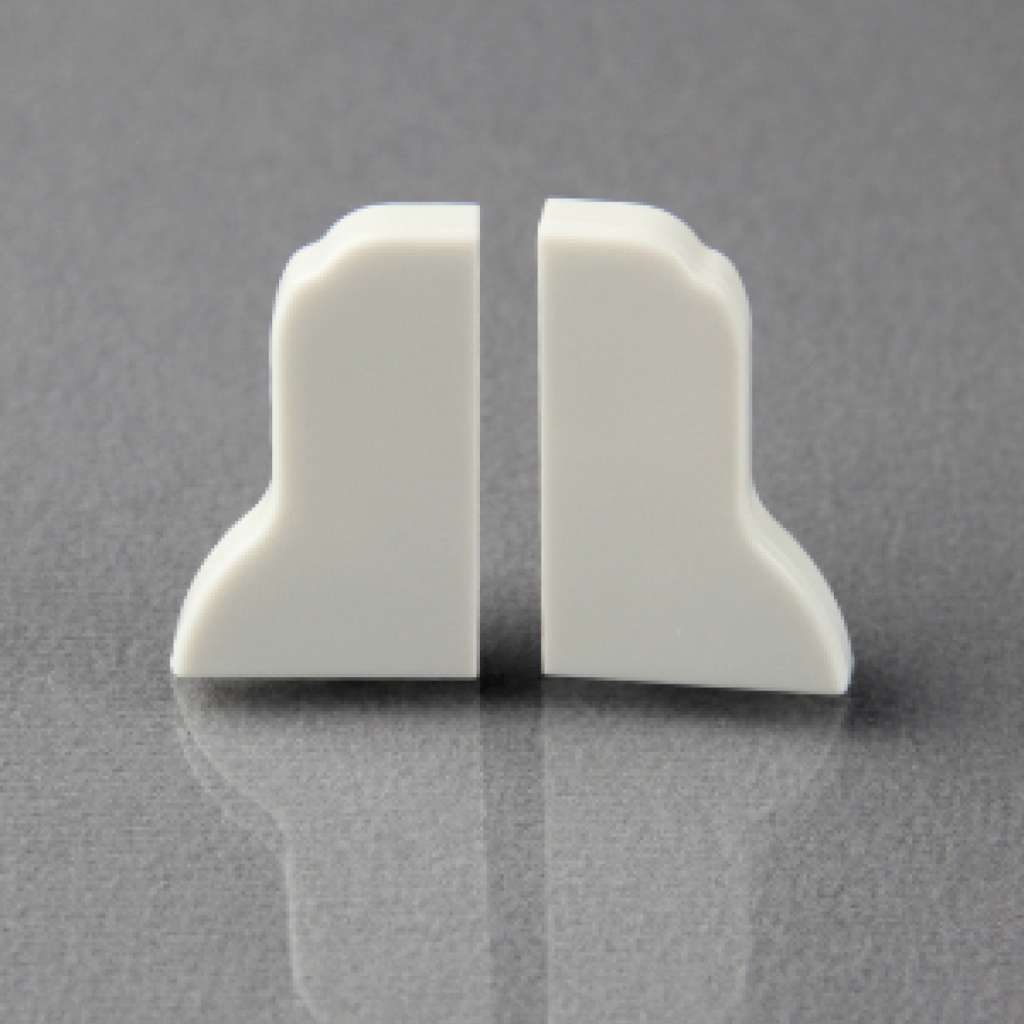

End cap(left) | - | - | - | |
 |

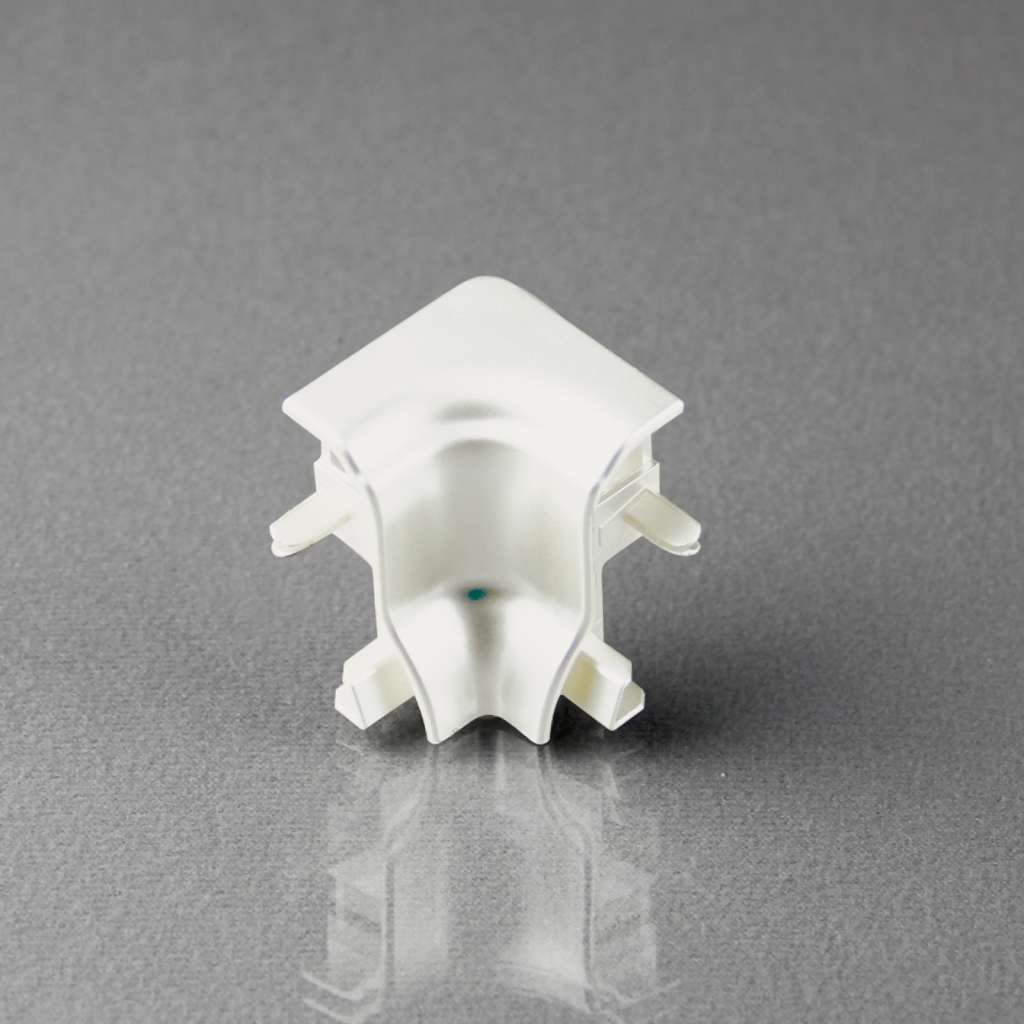

inside corner connector | - | - | White | |
 |

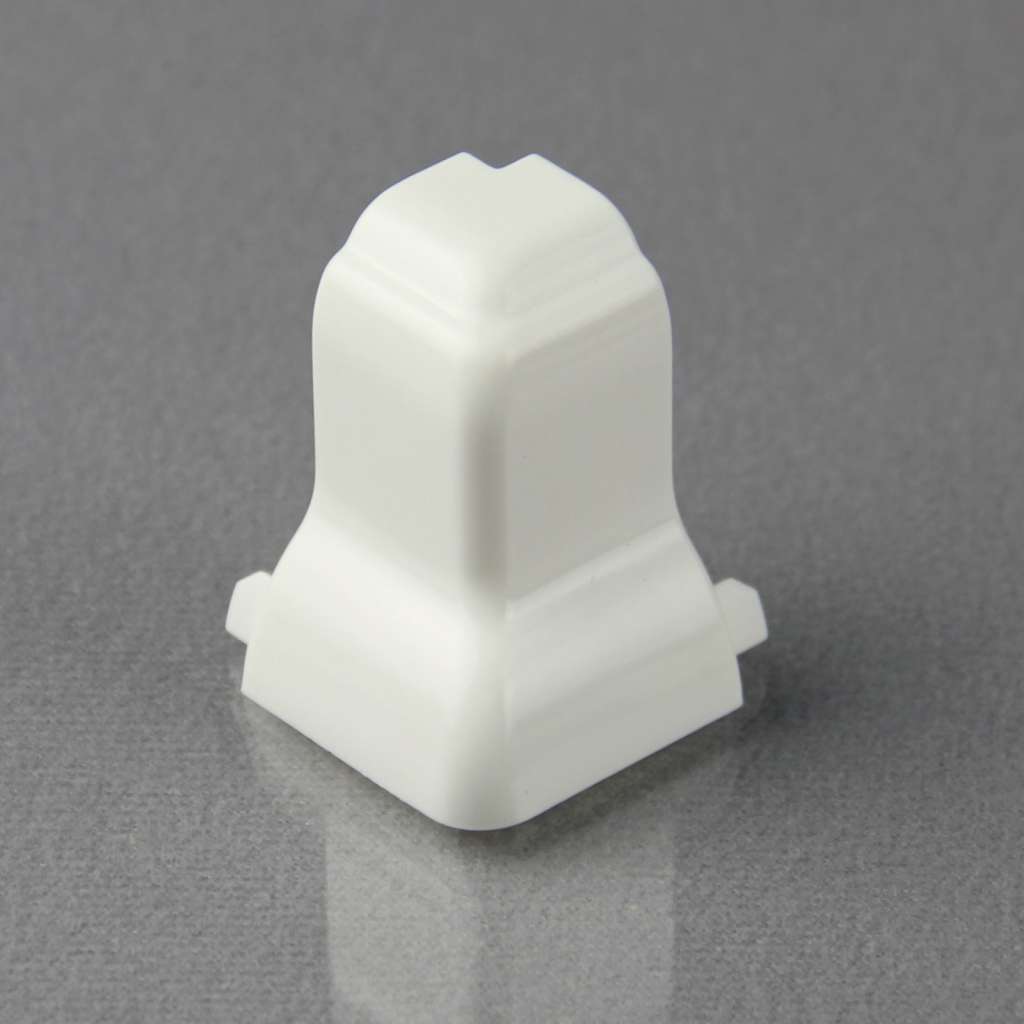

Outside corner connector | - | - | White |
