- Code : NBAP - 0702
- Type : LED Profile
- Power/meter : 20W/meter

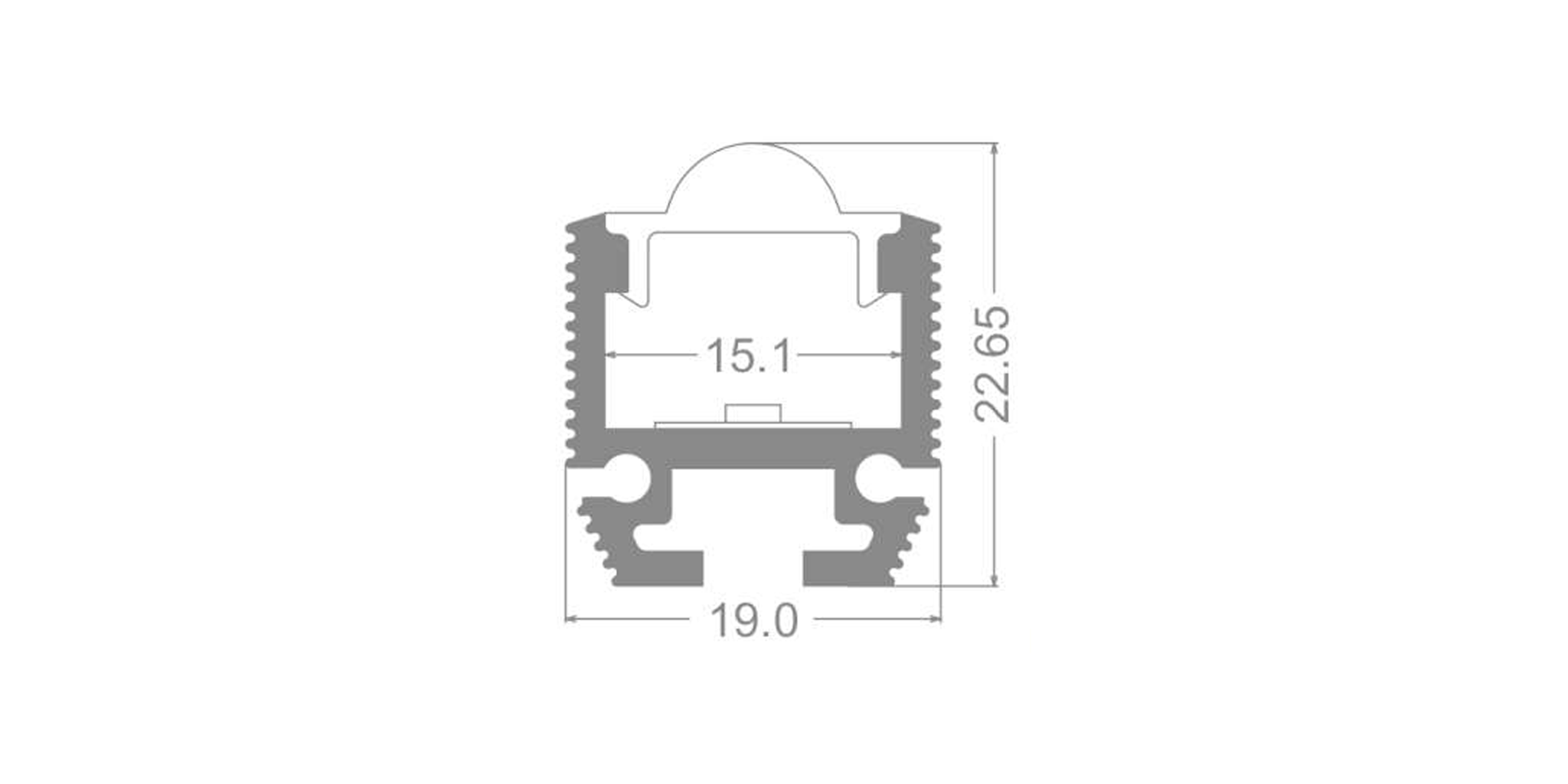

- Size : W19mm x H23mm
- Strip Width : 15.1mm
- Max Length : 3000mm
- Material : Aluminum
LED Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
Cabinet , Display Mini wall washer
Linear lighting design, homogeneous and
dot free illumination,

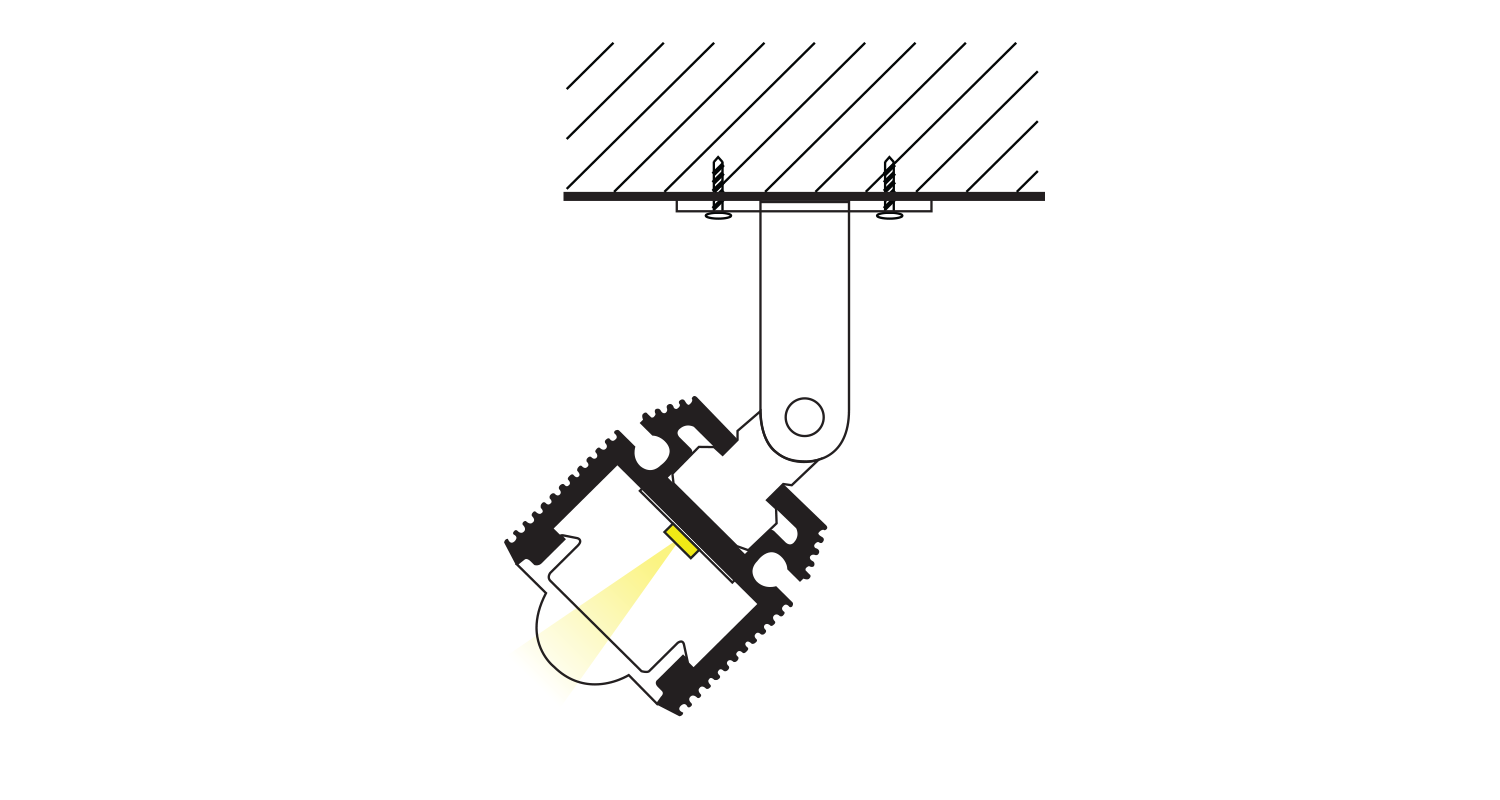

Installation: surface mounting,

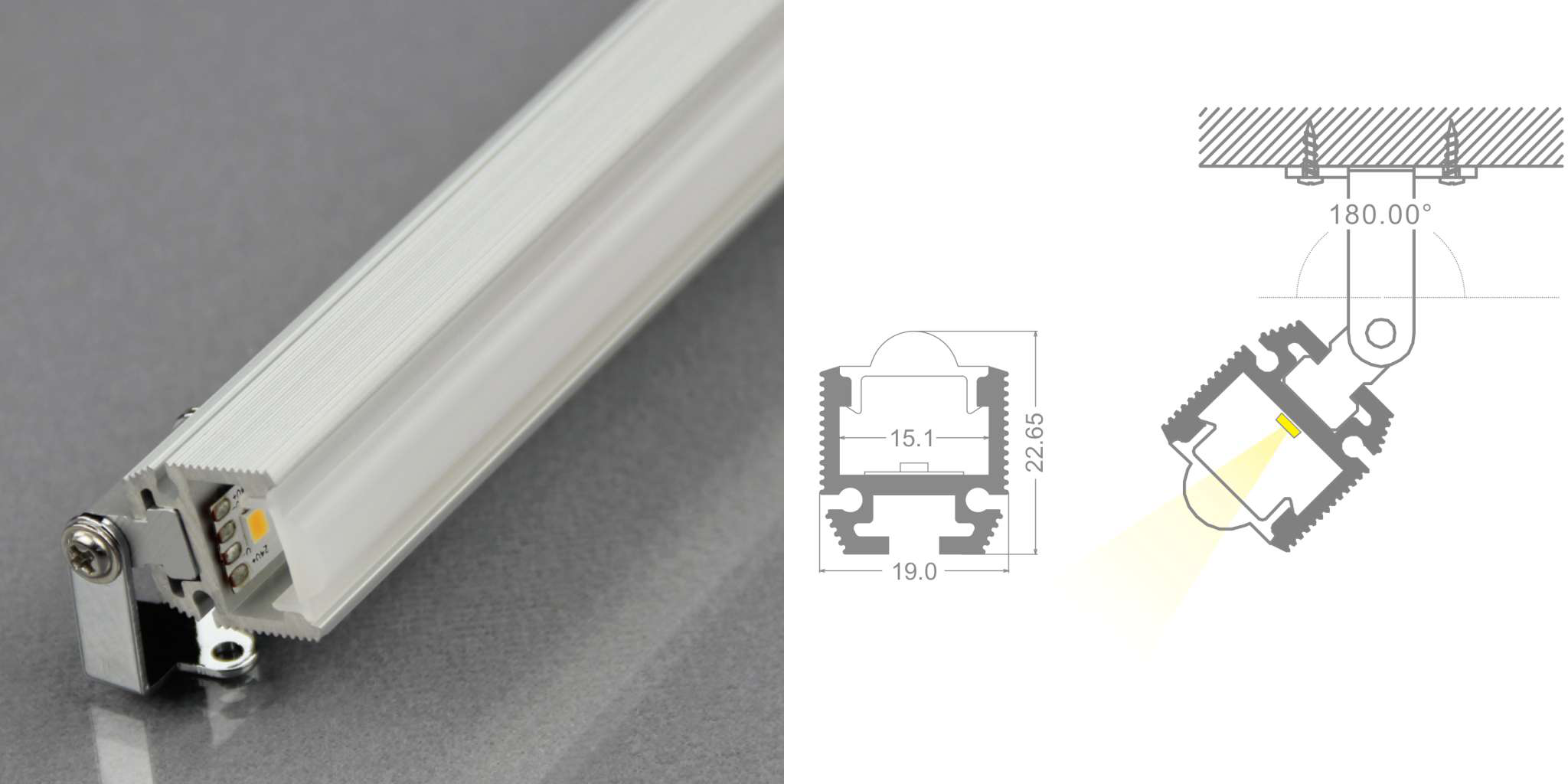

can be turned round 180 degree.
Cable output : from the bottom or end
IP rating: IP20/IP67
Suit for 6-12mm width LED strip
| Name | Material | Size | Color | ||
|---|---|---|---|---|---|
 |

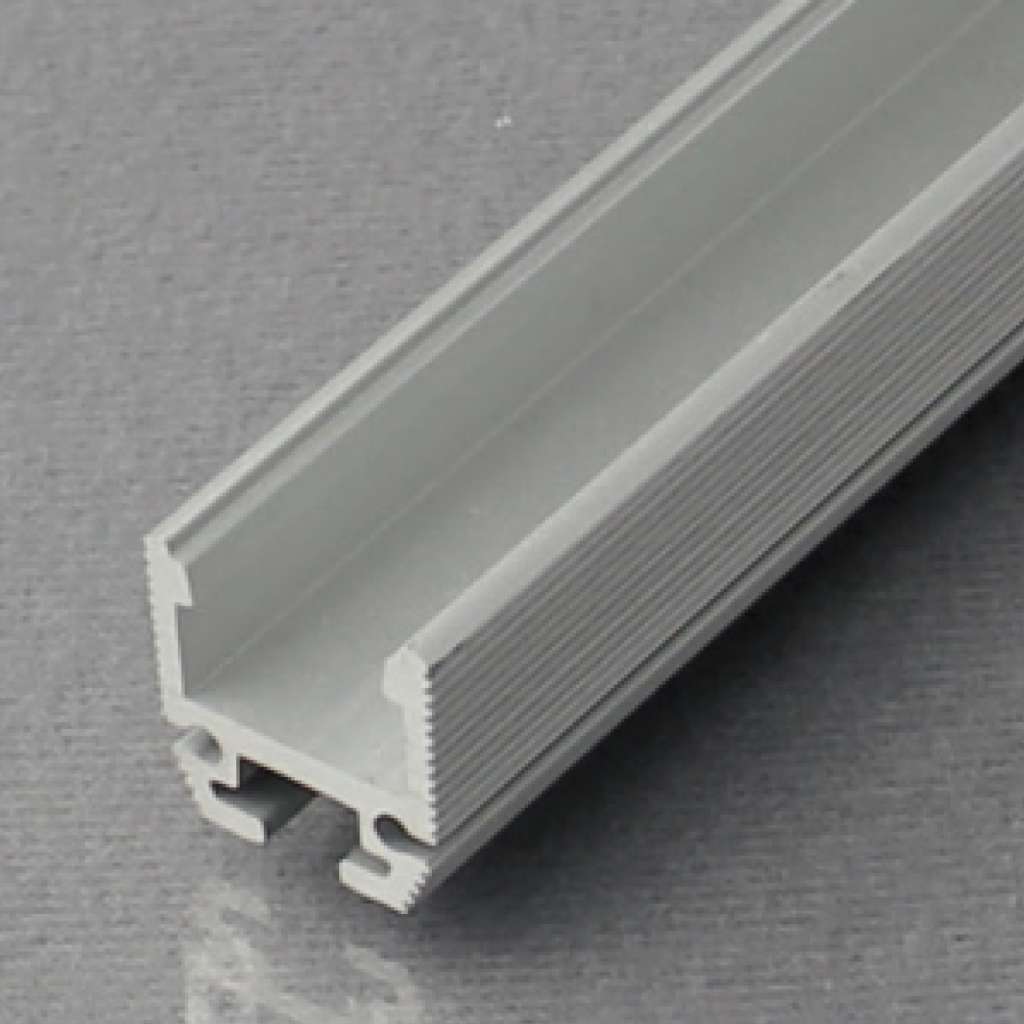

profile(1m) | Aluminum | - | - | |
 |

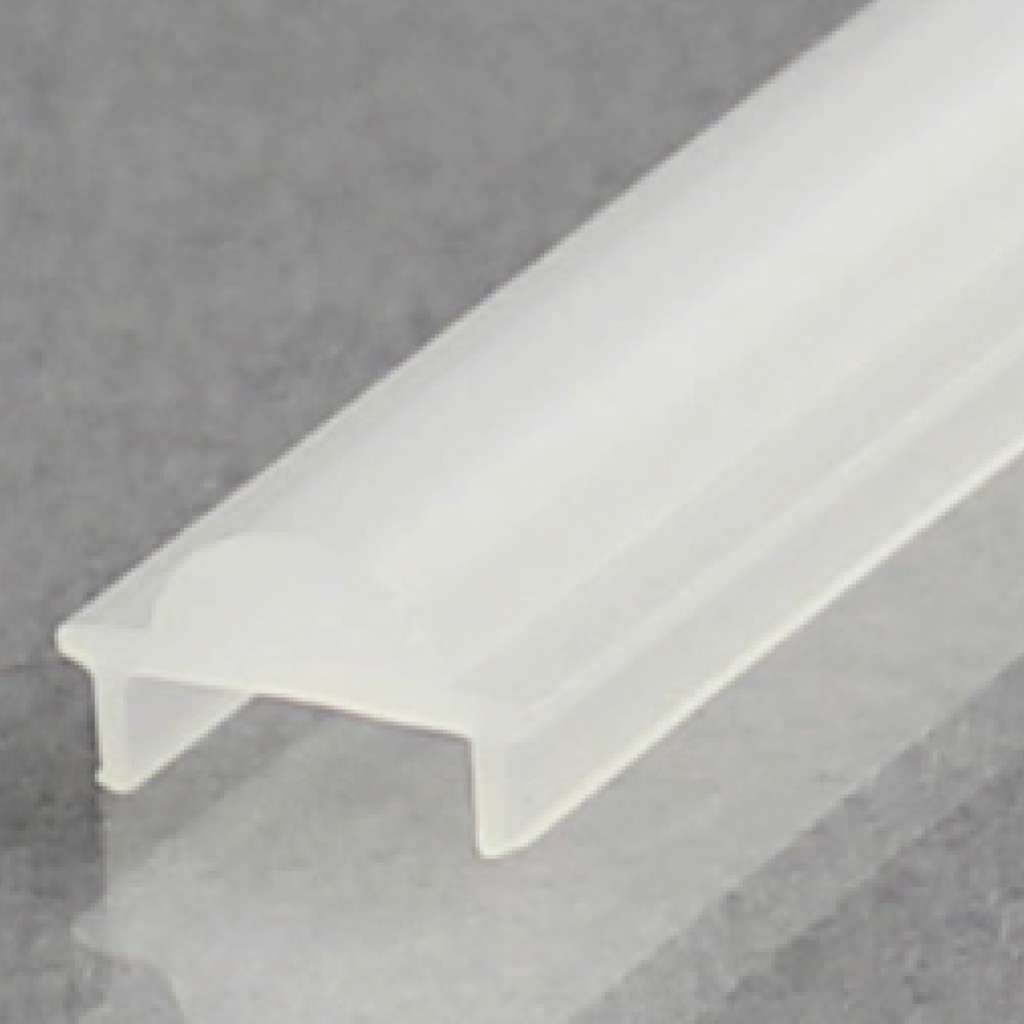

PMMA Cover(1m) | - | - | - | |
 |

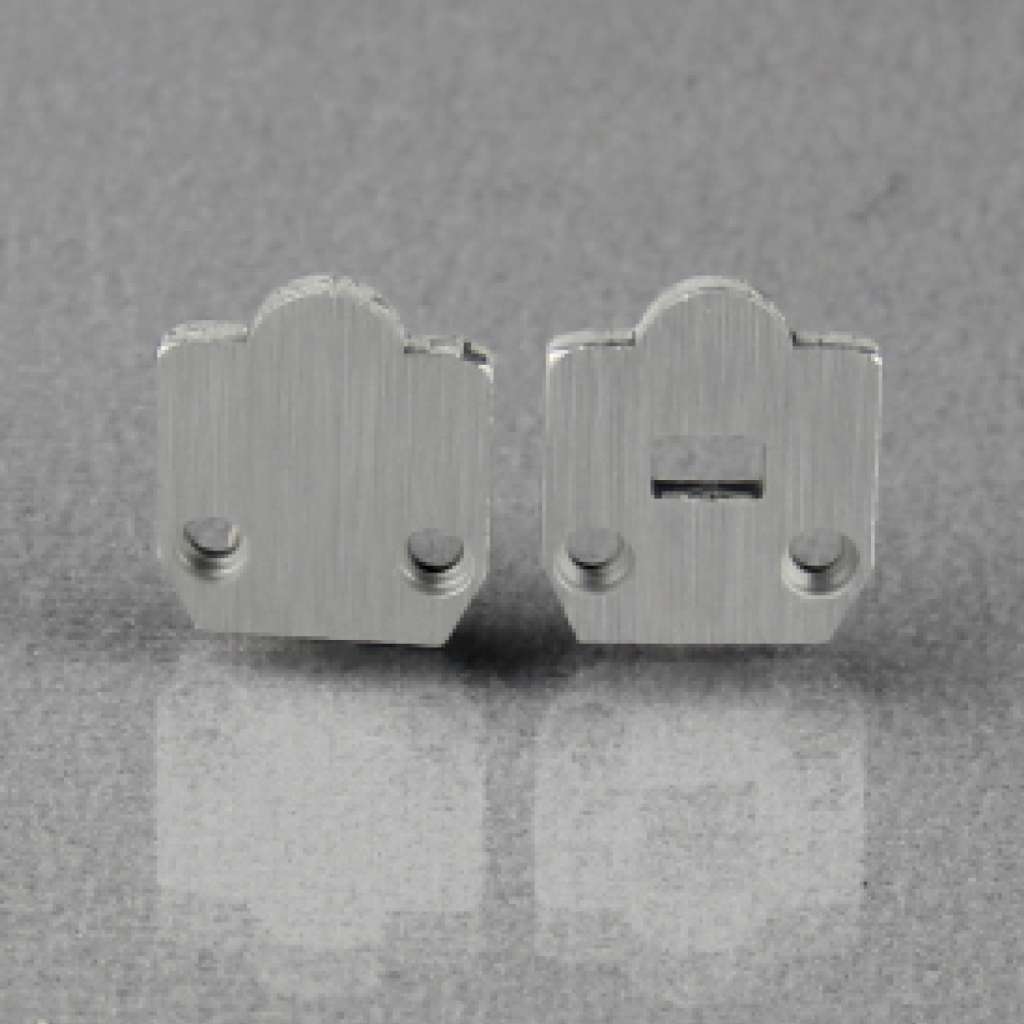

End cap | - | - | - | |
 |

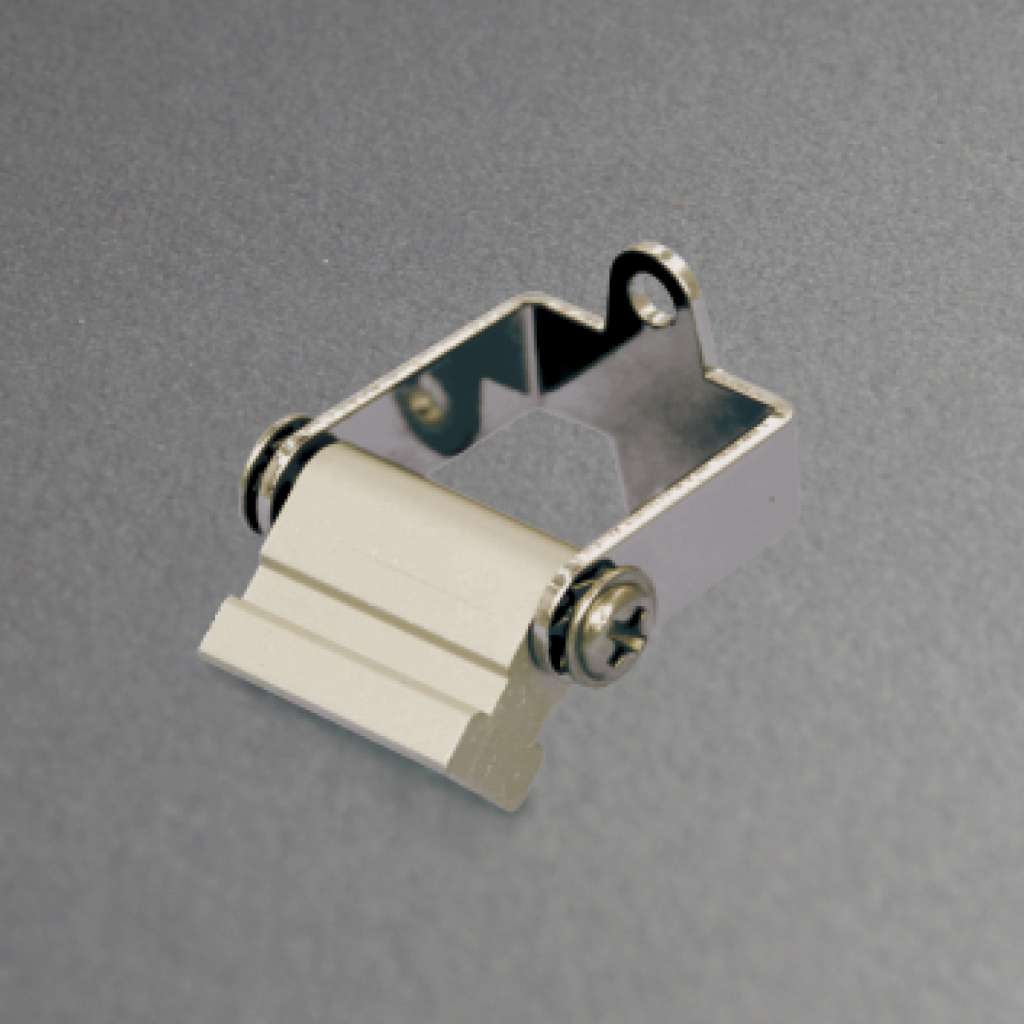

Steel holder | Stainless | - | - |
