- Code : NBAP - 06
- Type : LED Profile
- Power/meter : 30W/meter

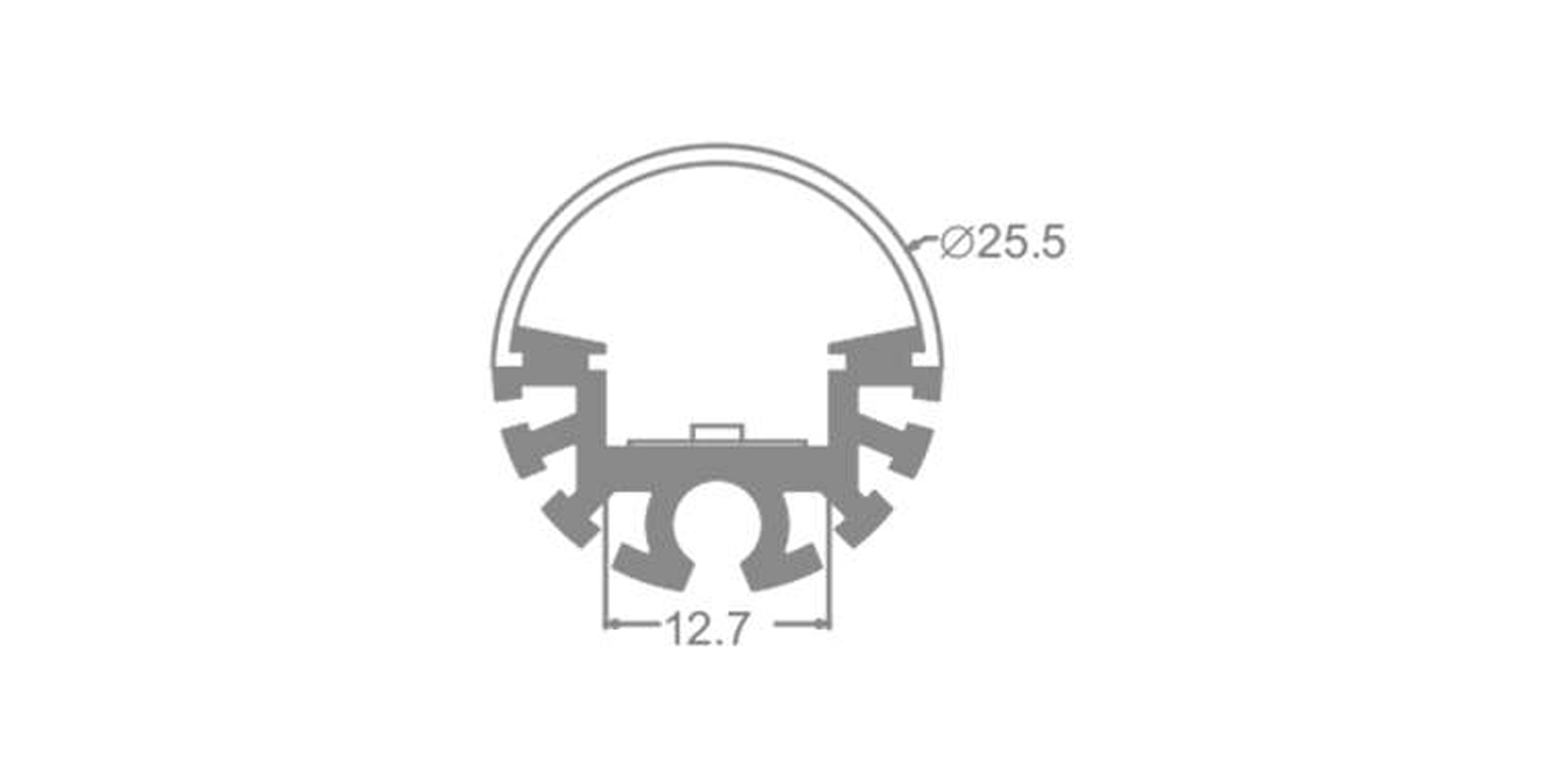

- Size : W26mm x H26mm
- Strip width : 12.7mm
- Max Length : 3mm
- Material : Aluminum

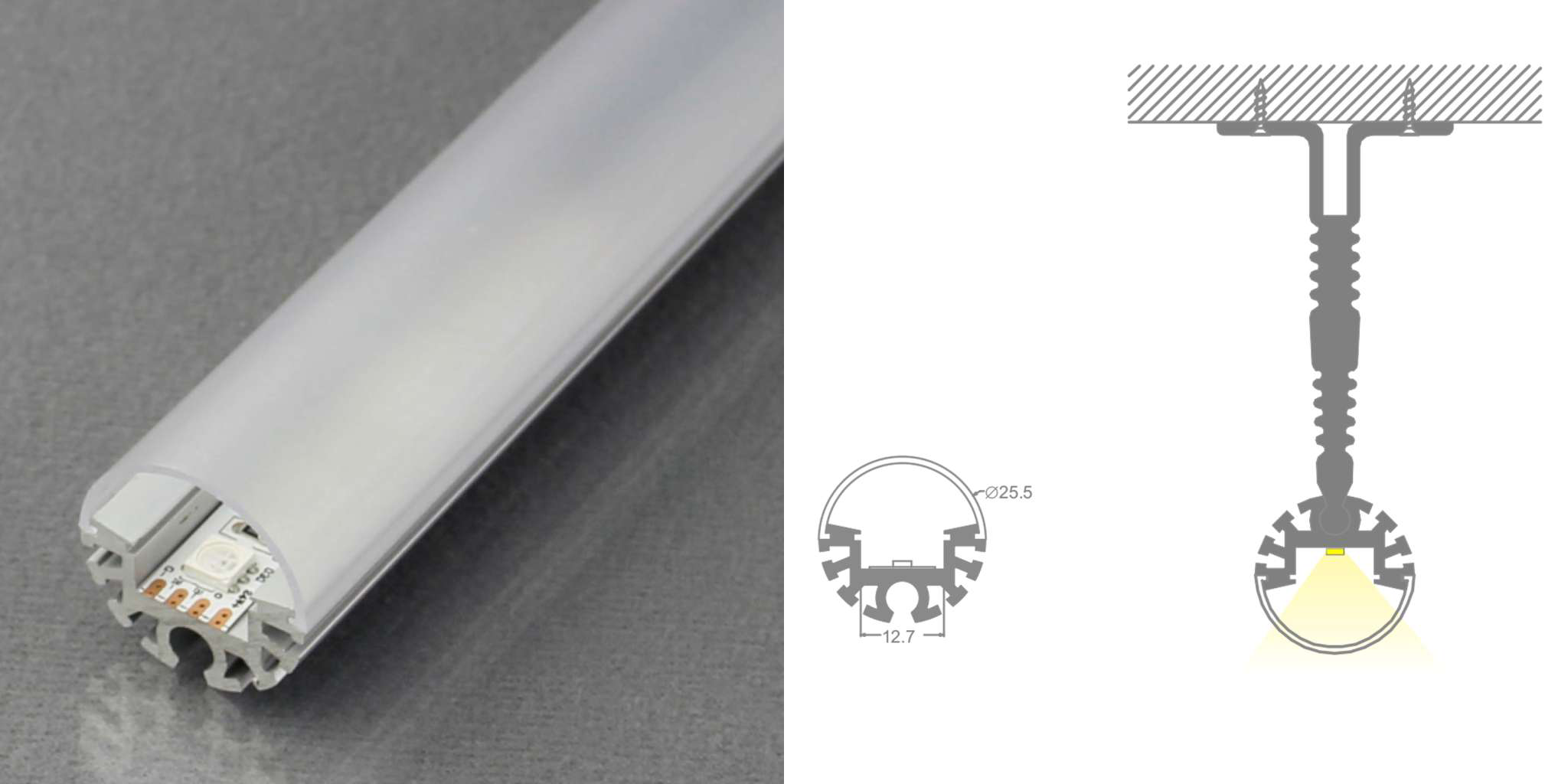

Tube LED Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
Mirror front lamp, beaming angle 180 degree,
homogeneous and dot free illumination,

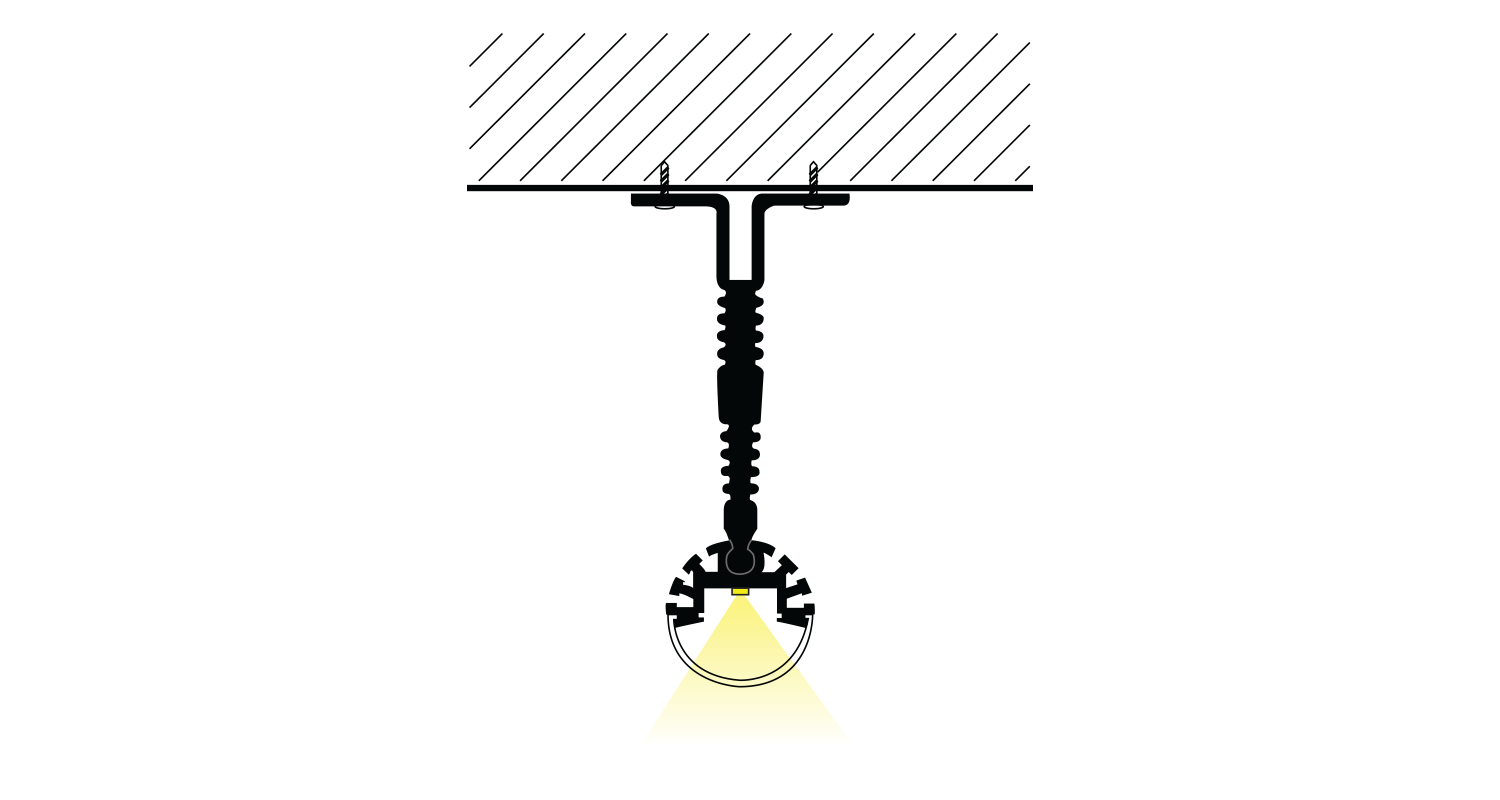

Installation: surface mounting,
Cable output : from the bottom or end
IP rating: IP20/ IP67
Suit for 6-12mm width LED strip
Maximum 30W/m
| Name | Material | Size | Color | Surface Treatment | ||
|---|---|---|---|---|---|---|
 |

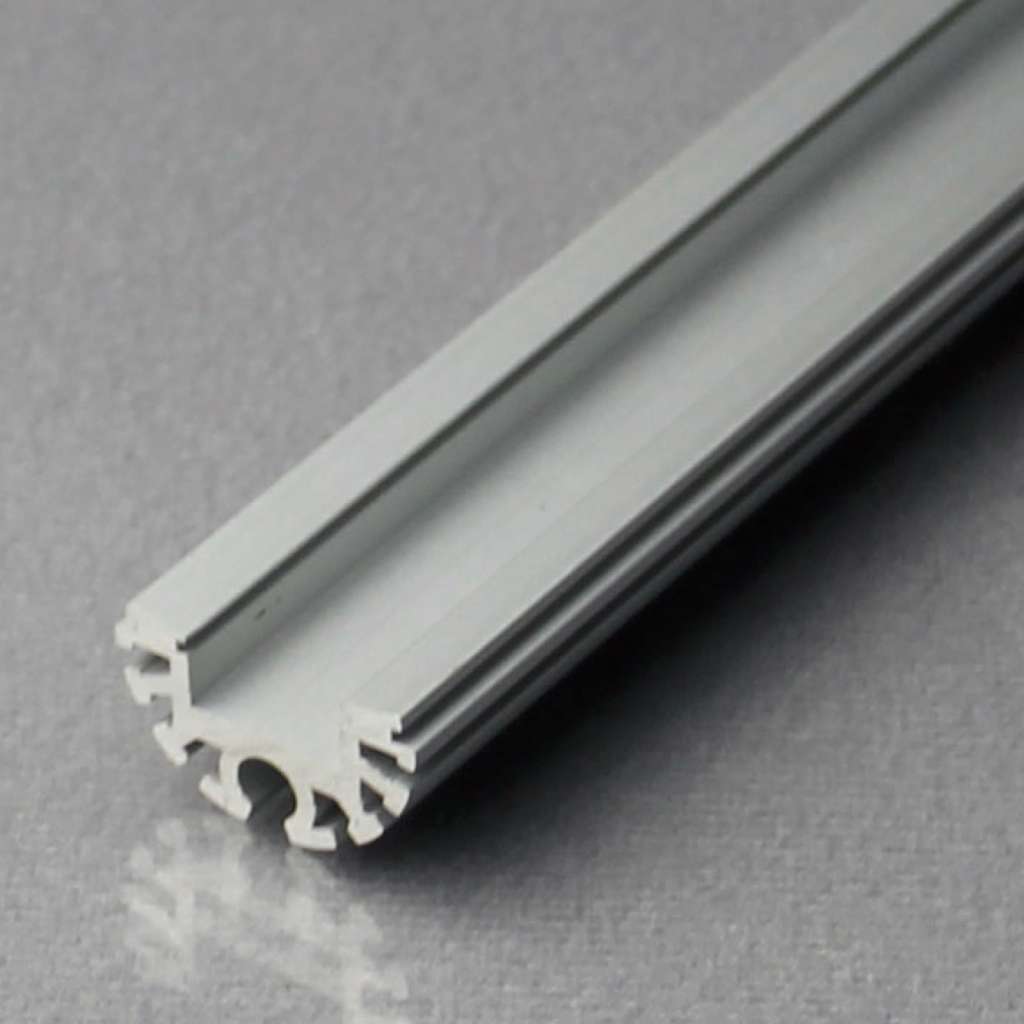

profile(1m) | Aluminum | - | - | - | |
 |

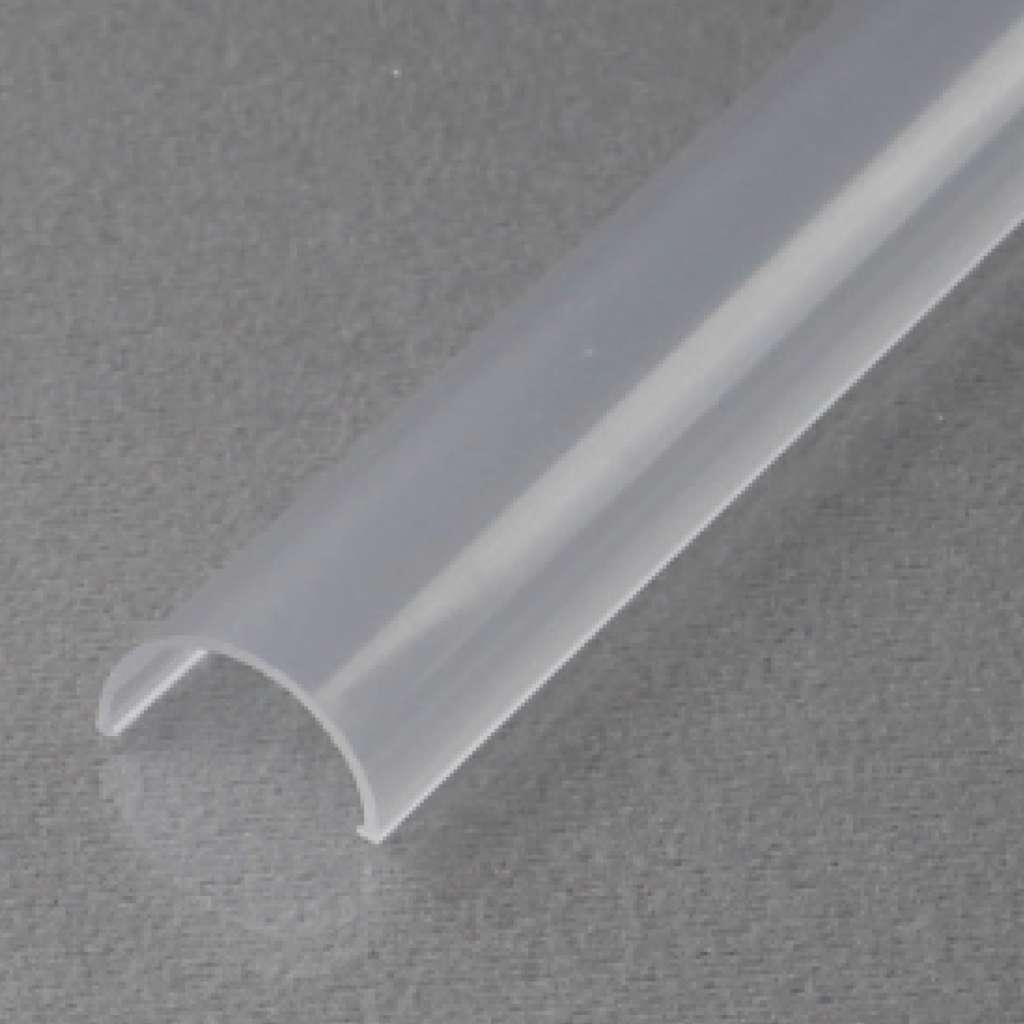

PC Cover(1m) | - | - | - | - | |
 |

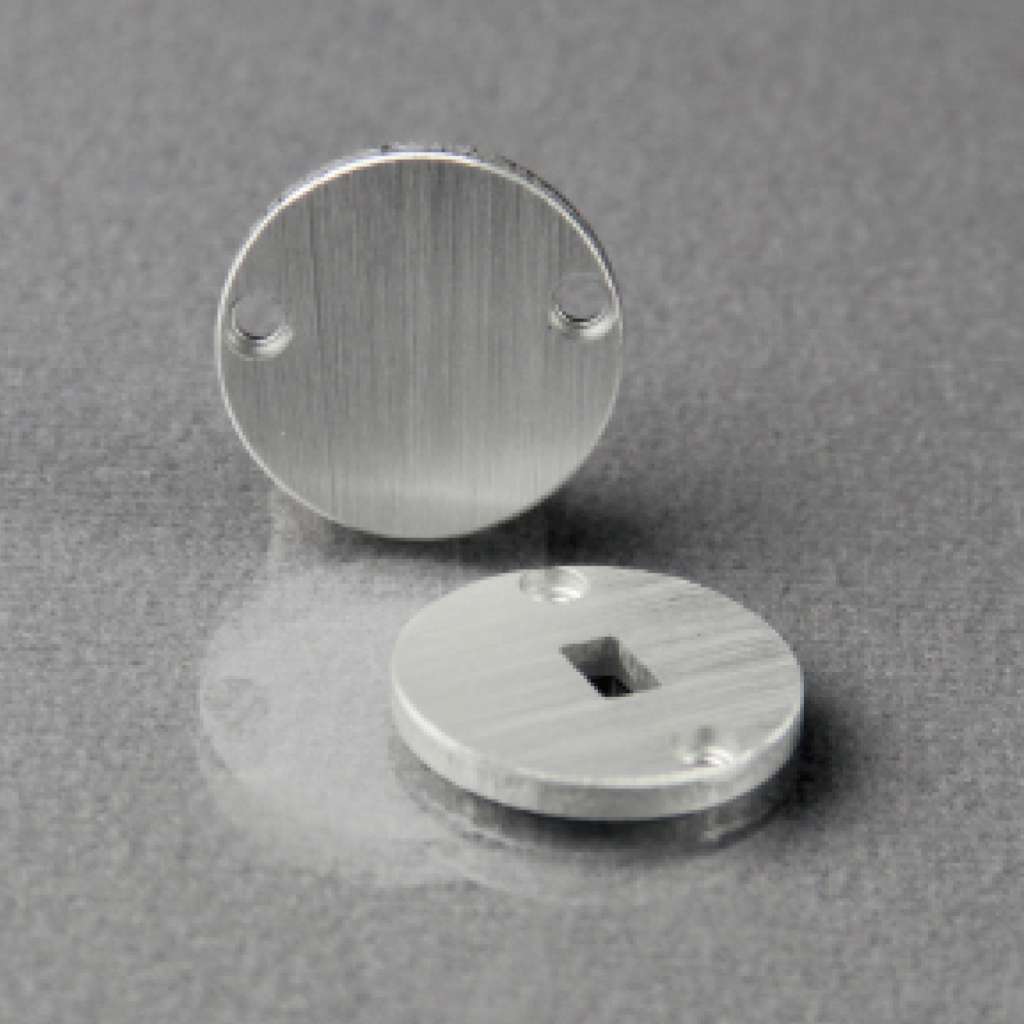

End cap | - | - | - | - | |
 |

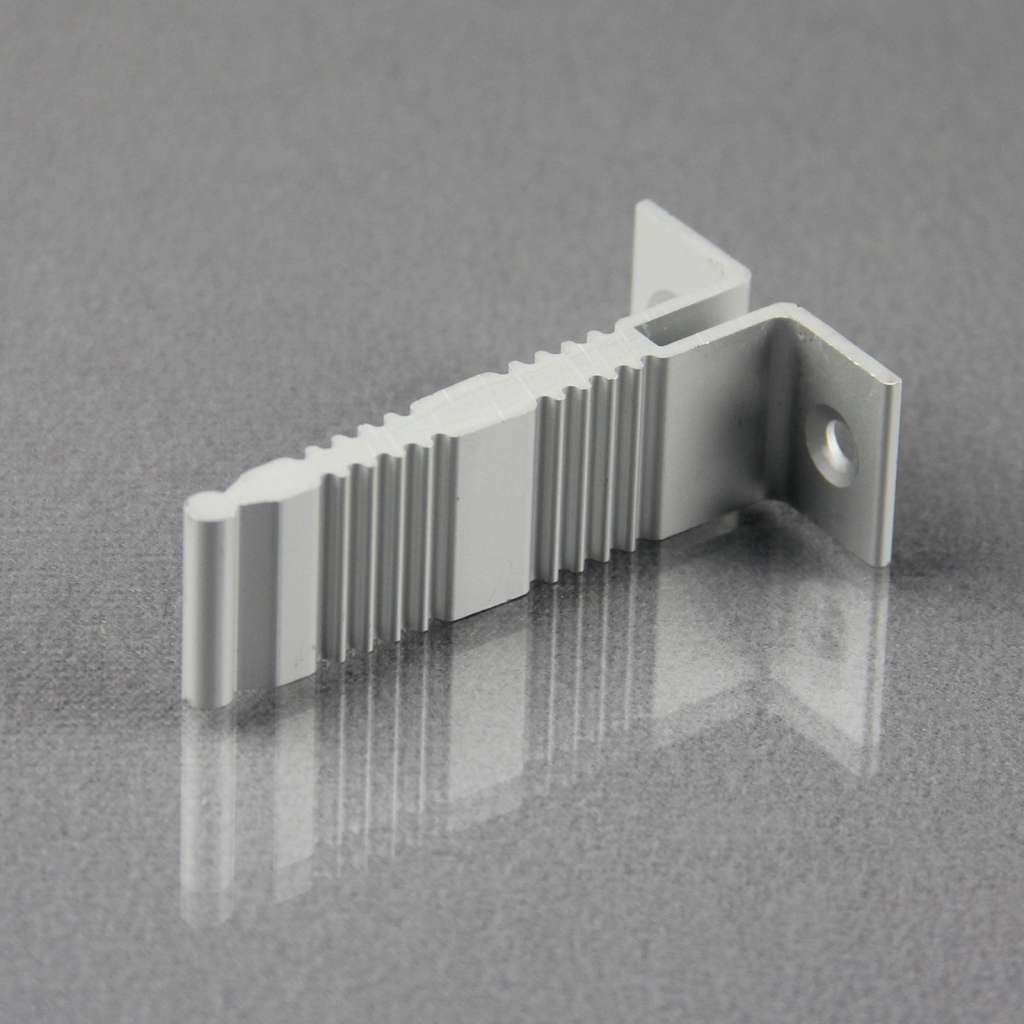

Alumium fixing holder | - | - | - | - |
