- Code : NBAP - 0303
- Type : LED Profile
- Power/meter : 30W/meter

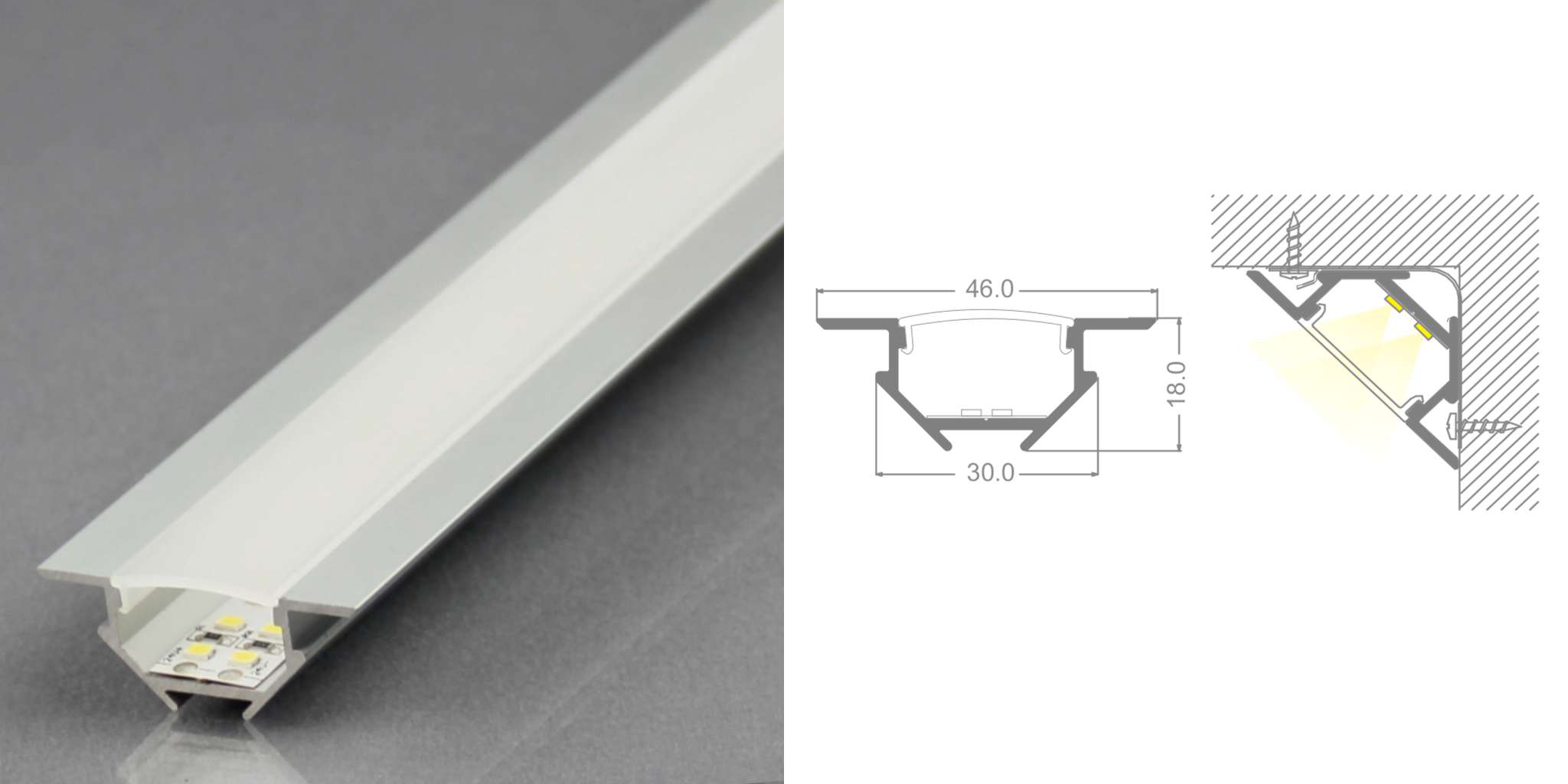

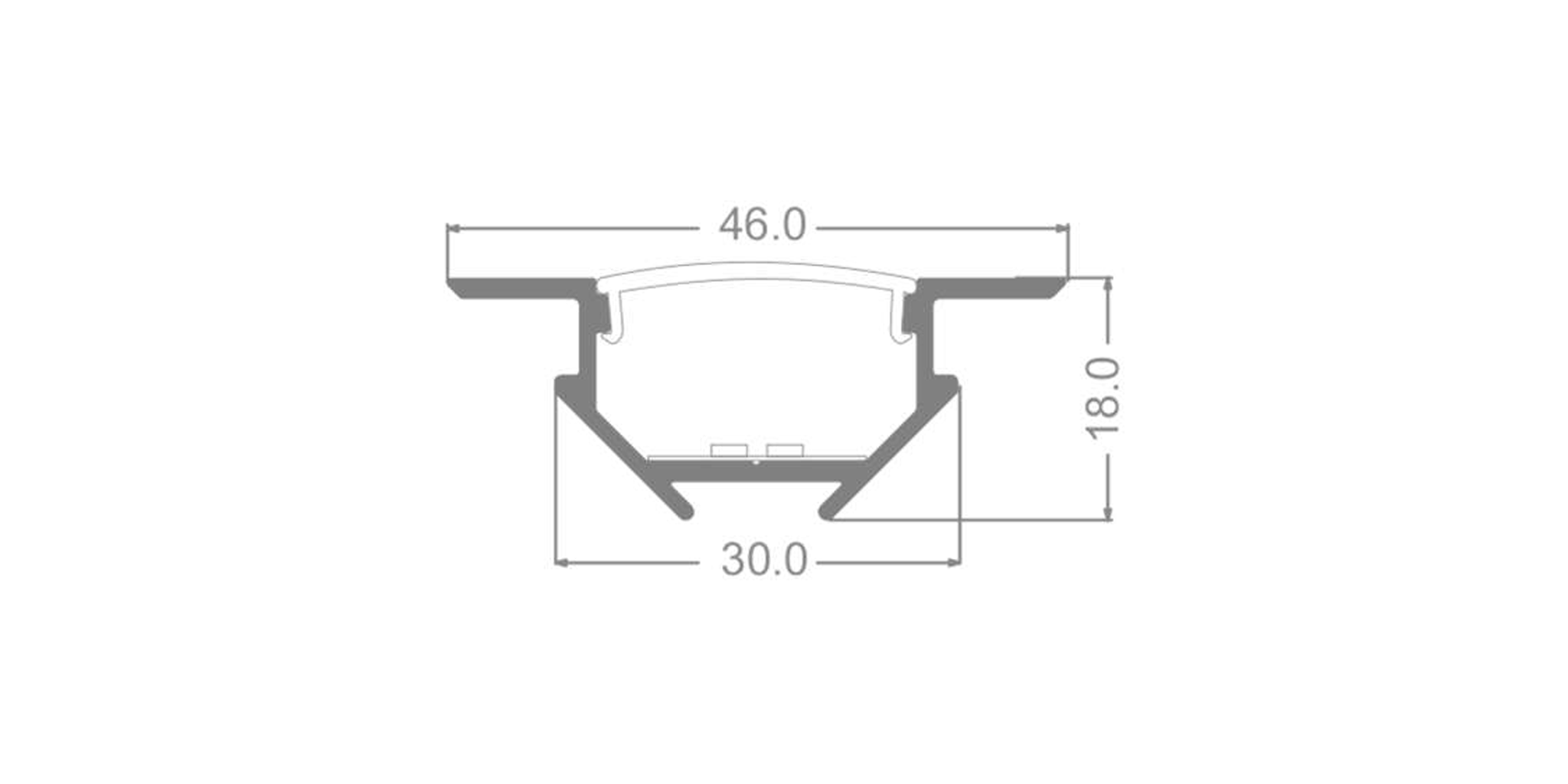

- Size : W46mm x H18mm
- Strip width : 6mm
- Max Length : 3000mm
- Material : Aluminum
Corner LED Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
Cabinet , Display Corner LED light
Linear lighting design, homogeneous and dot free illumination,

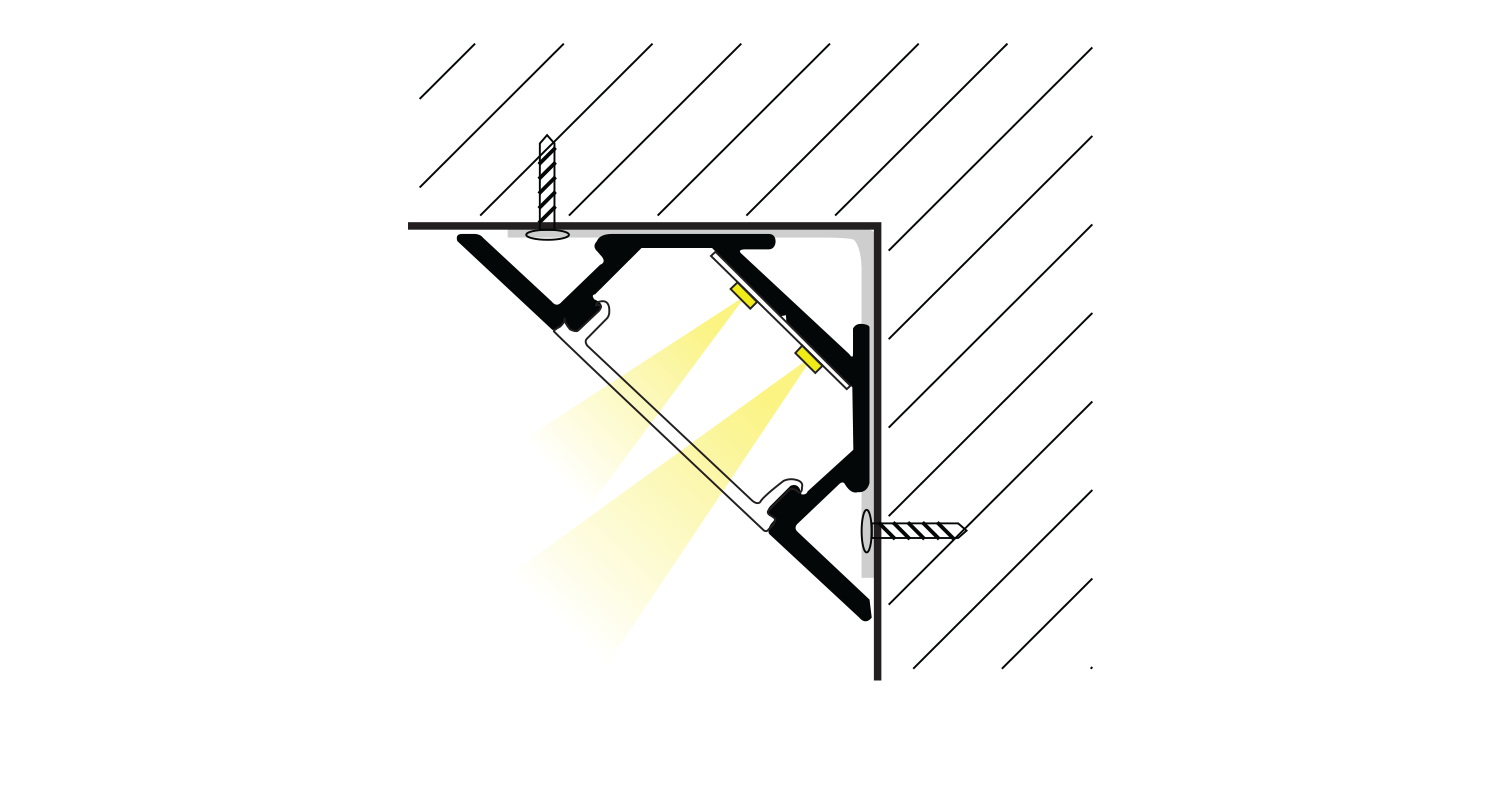

Installation: mounting on the surface
Cable output : from the bottom or end
IP rating: IP20/IP67
Suit for double row LED strip
| Name | Material | Size | Color | ||
|---|---|---|---|---|---|
 |

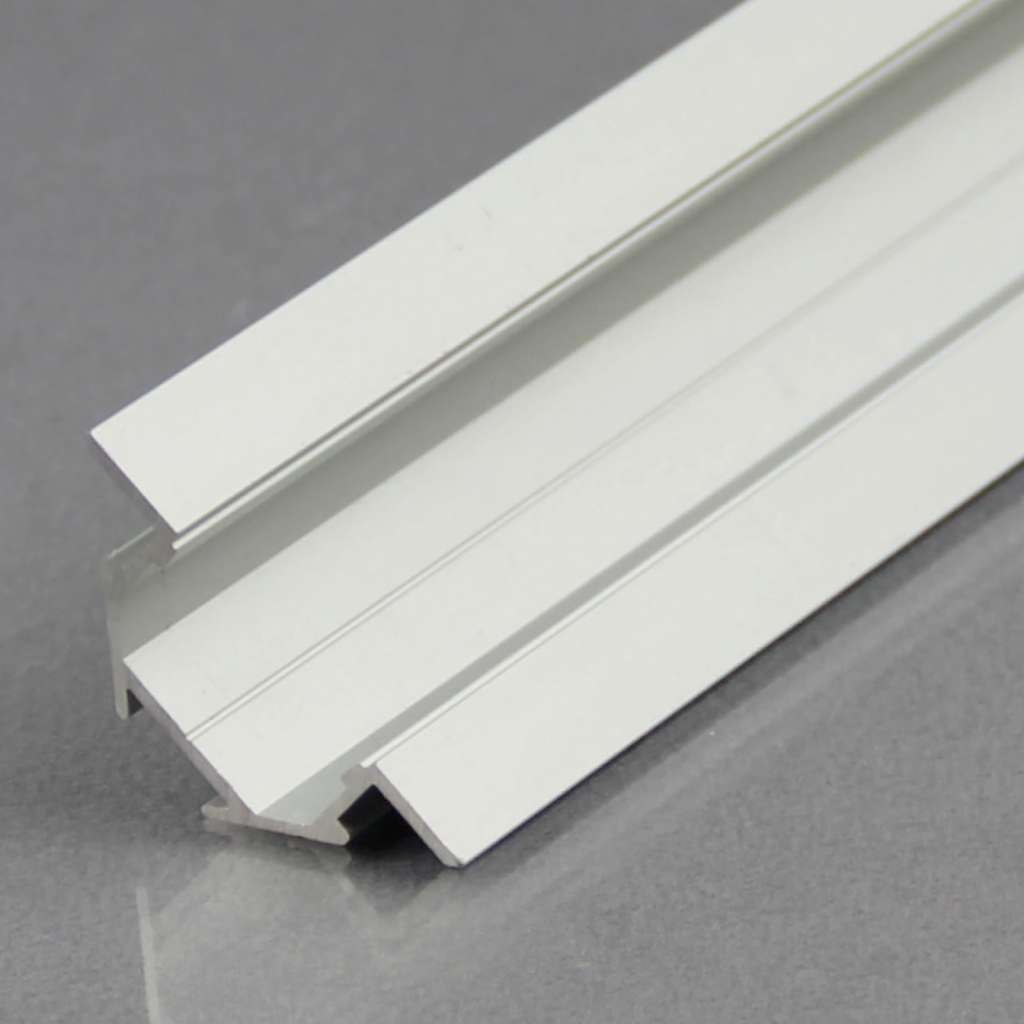

profile(1m) | Aluminum | - | - | |
 |

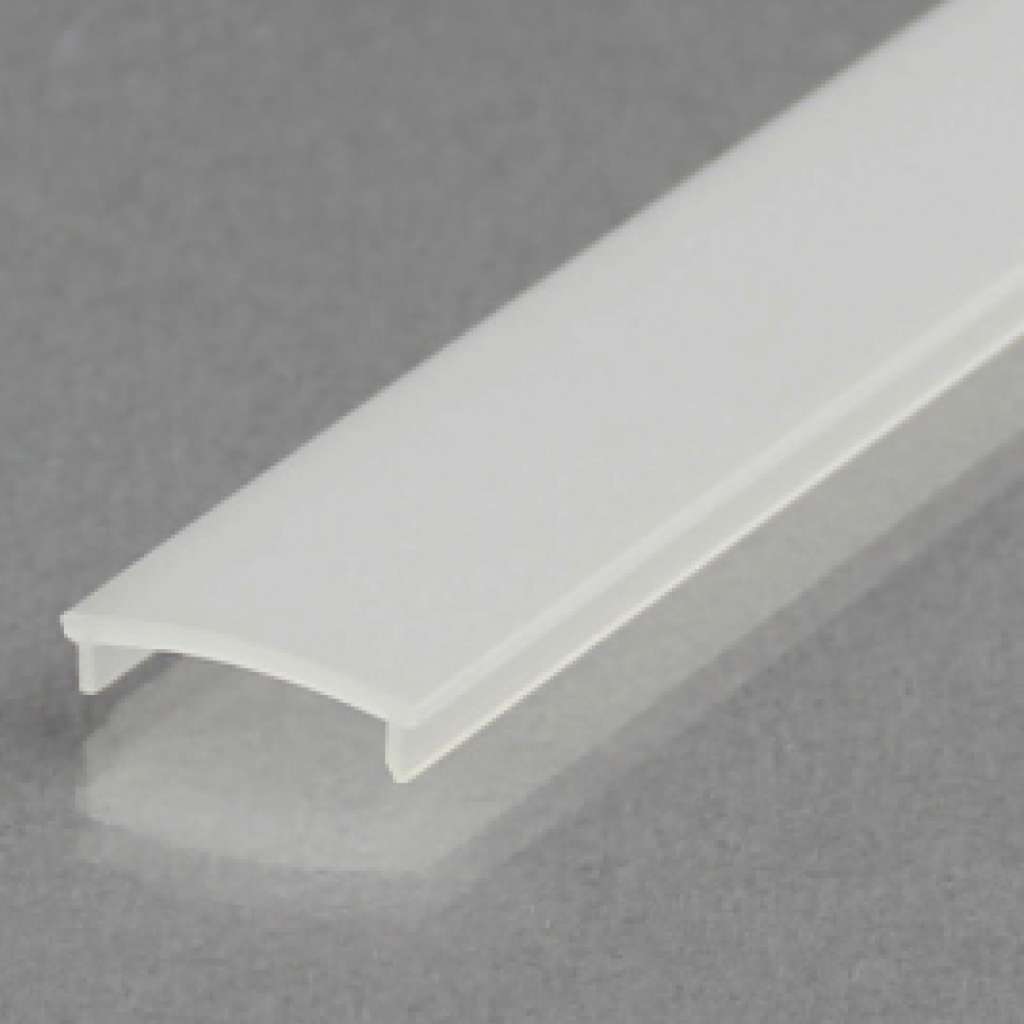

PMMA frosted surface (1m) | - | - | - | |
 |

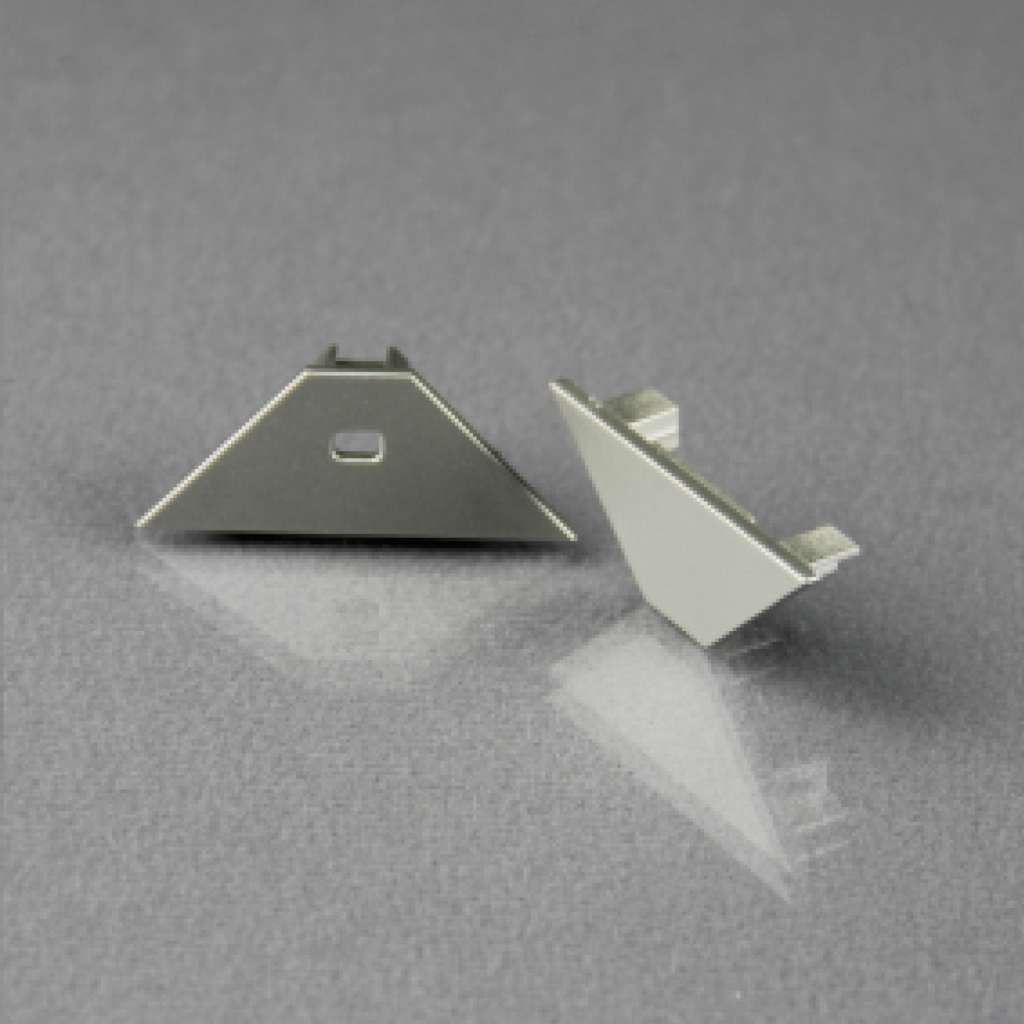

End cap | - | - | - | |
 |

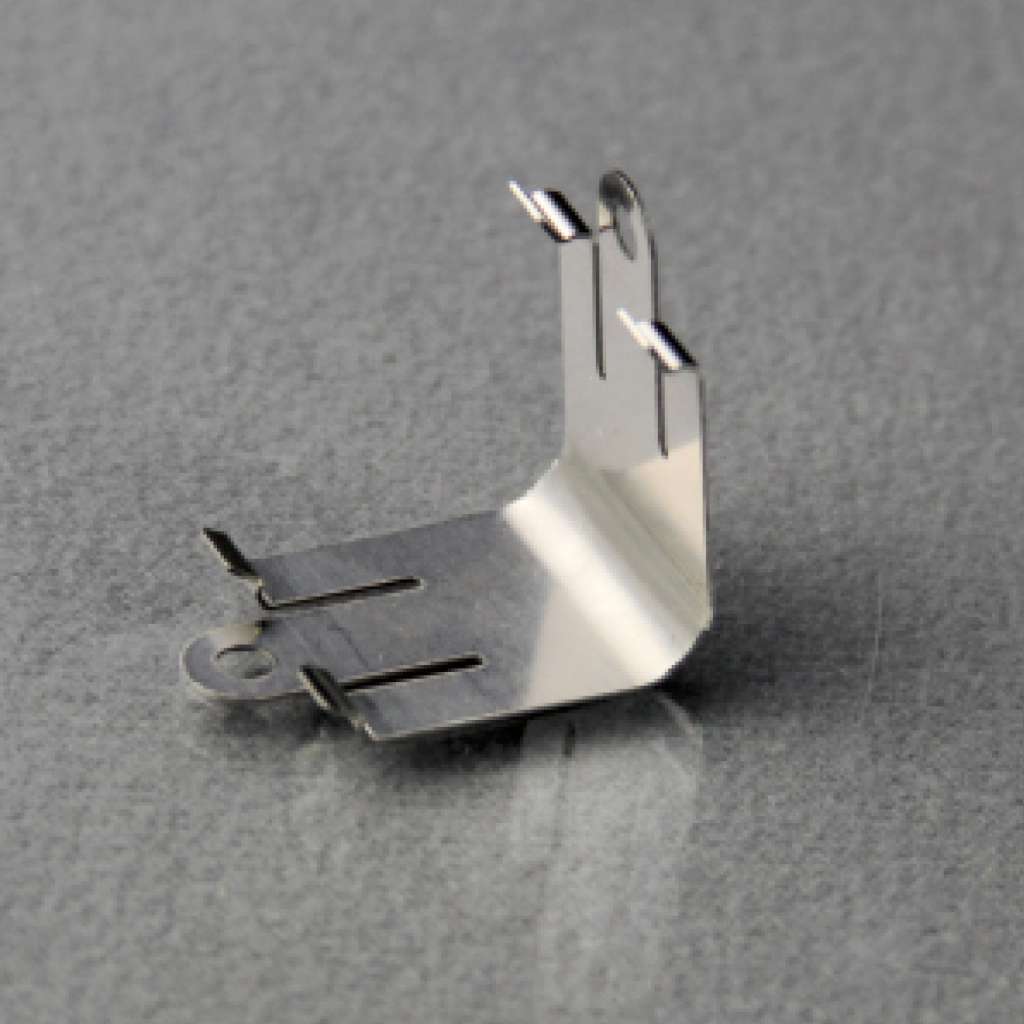

Mounting clip | - | - | - |
