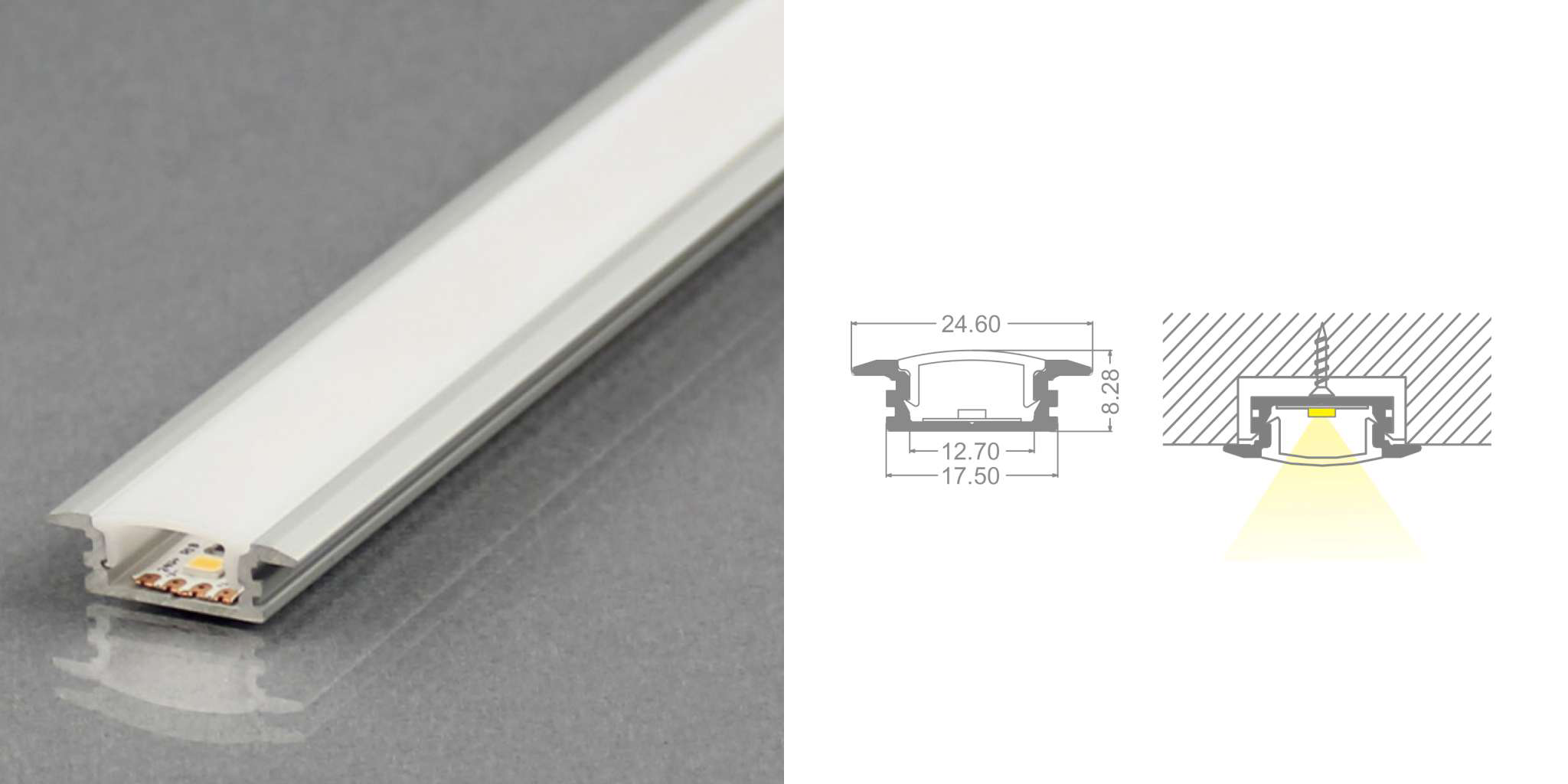

- Code : NBAP - 0202
- Type : LED Profile
- Power/meter : 15W/meter

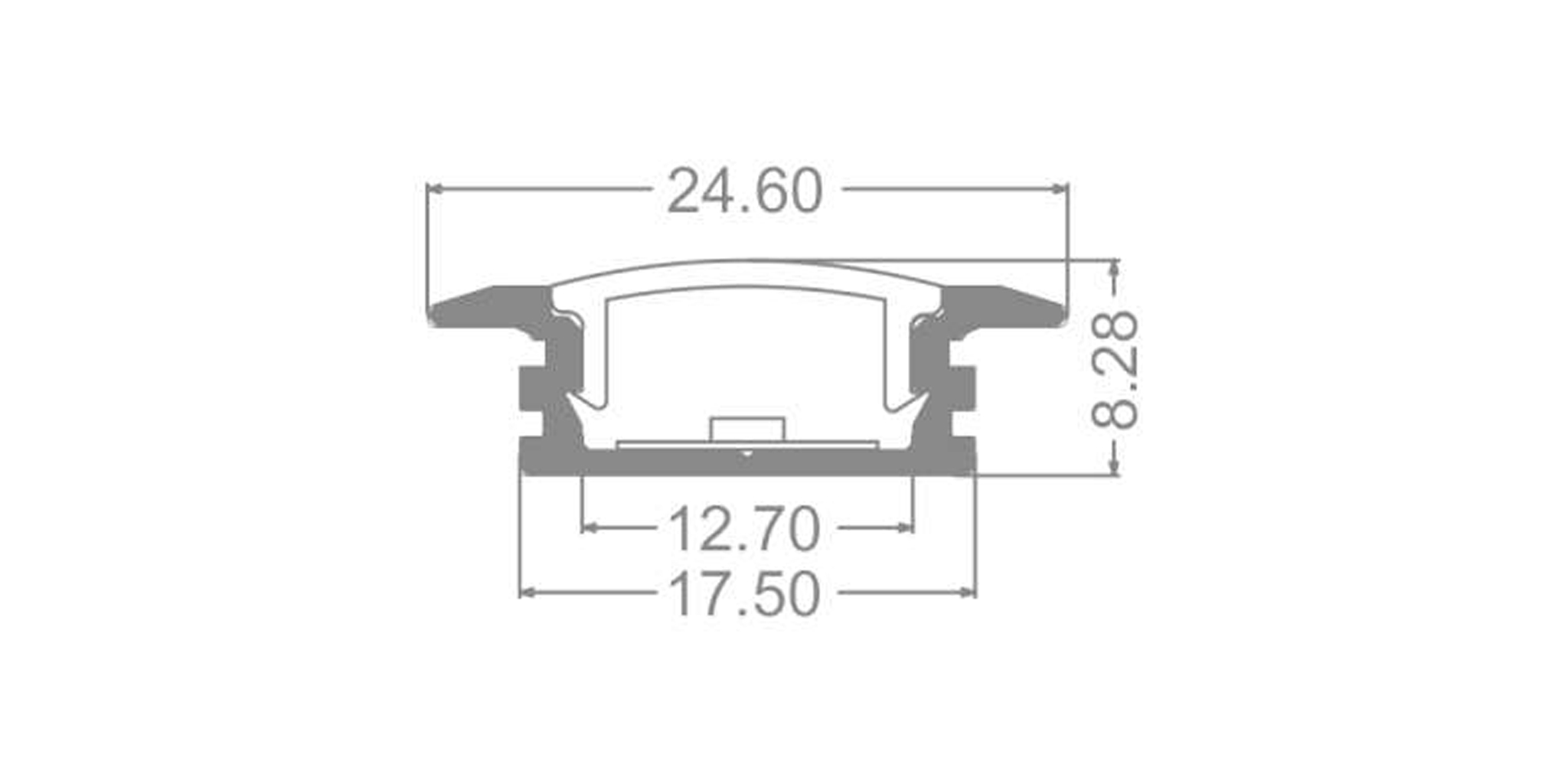

- Size : W25mm x H8mm
- Strip width : 12.7mm
- Max Length : 3000mm
- Material : Aluminum
Recessed LED Profile
Aluminum profile,
6063 aluminum material
anodized or powder coating finished
1m,2m,3m length,
Customized length is available
on request.
Cabinet , Display, wood floor LED slim light
Linear lighting design, homogeneous light distribution

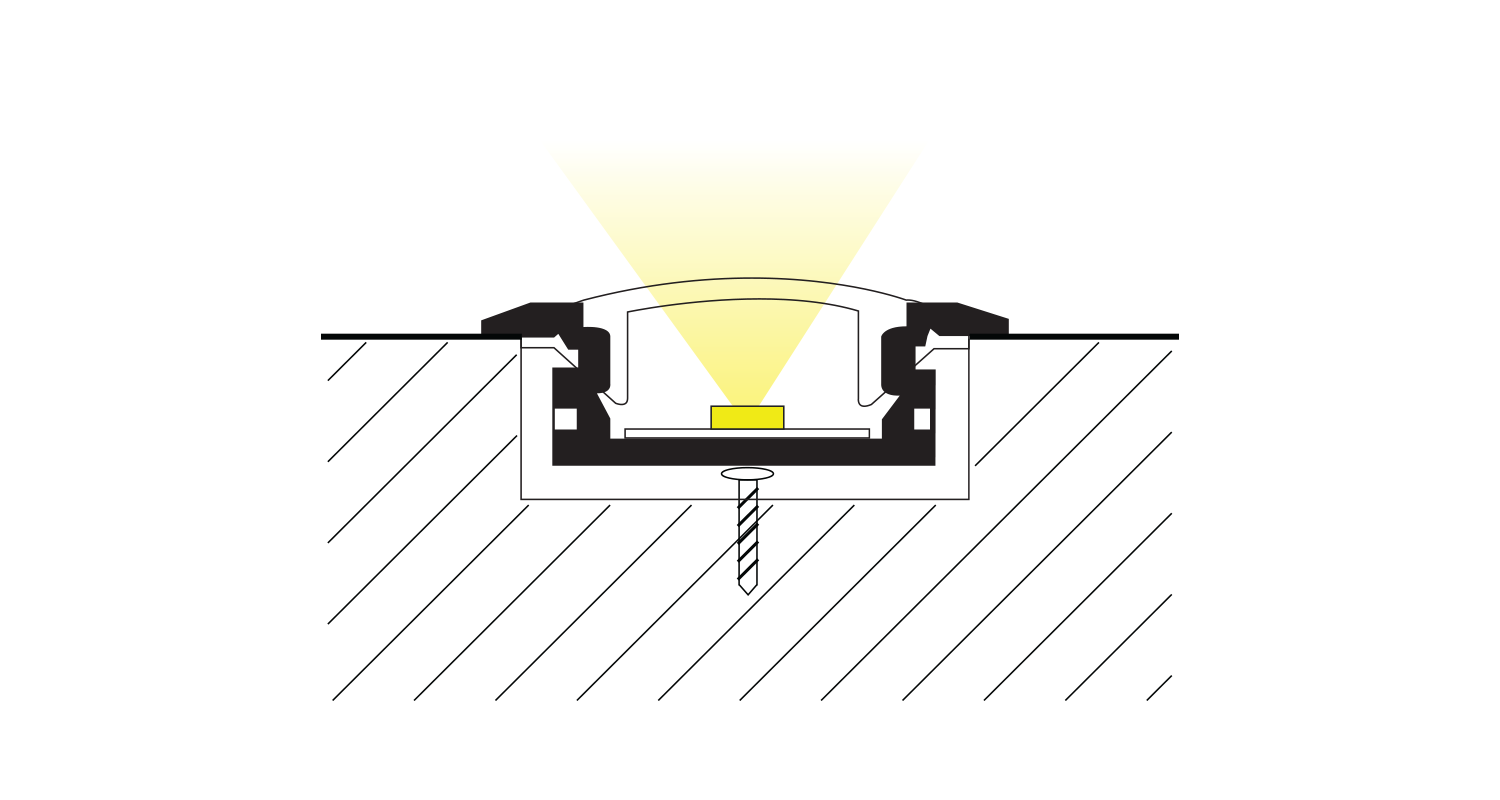

Installation: recessedv
Cable output : From the bottom or end.
IP rating: IP20/IP67
Suit for 6-12mm width LED strip
Maximum 15W/m
| Name | Material | Size | Color | ||
|---|---|---|---|---|---|
 |

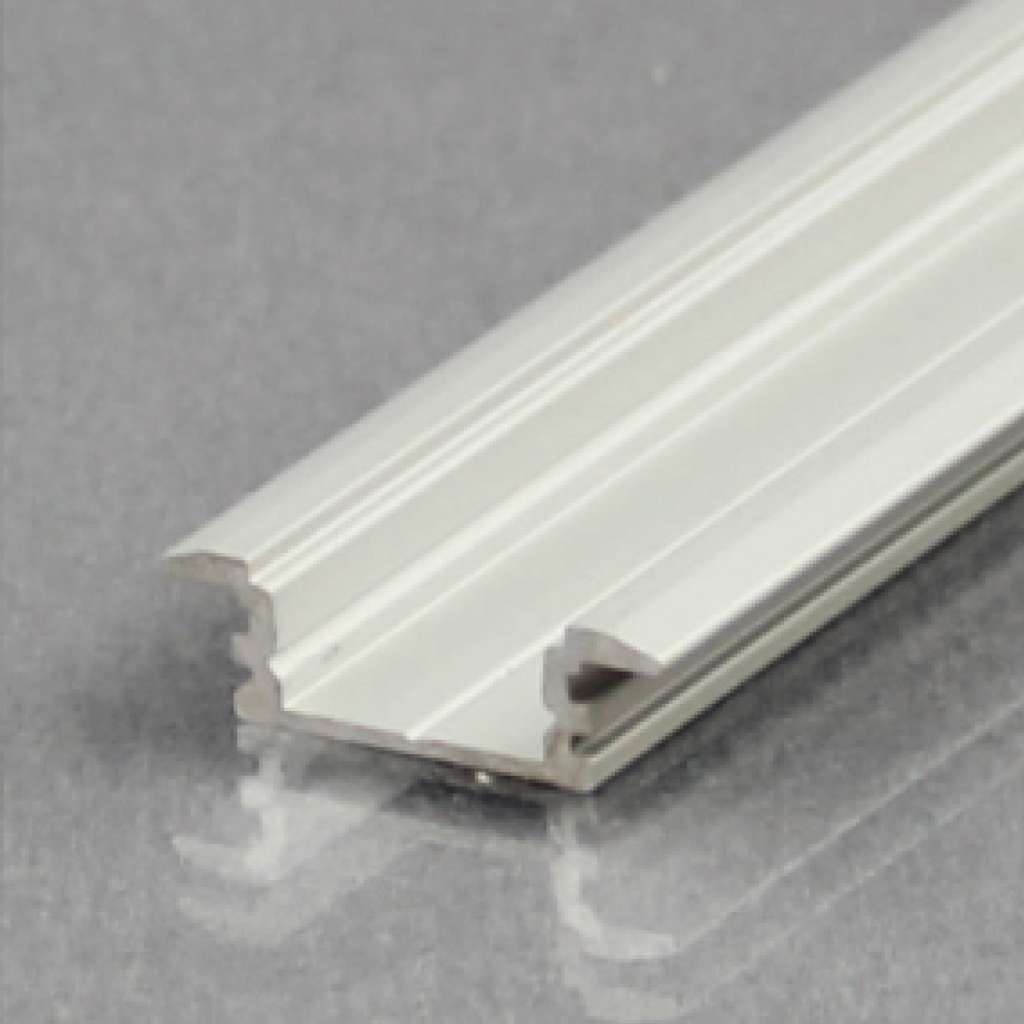

profile(1m) | Aluminum | - | - | |
 |

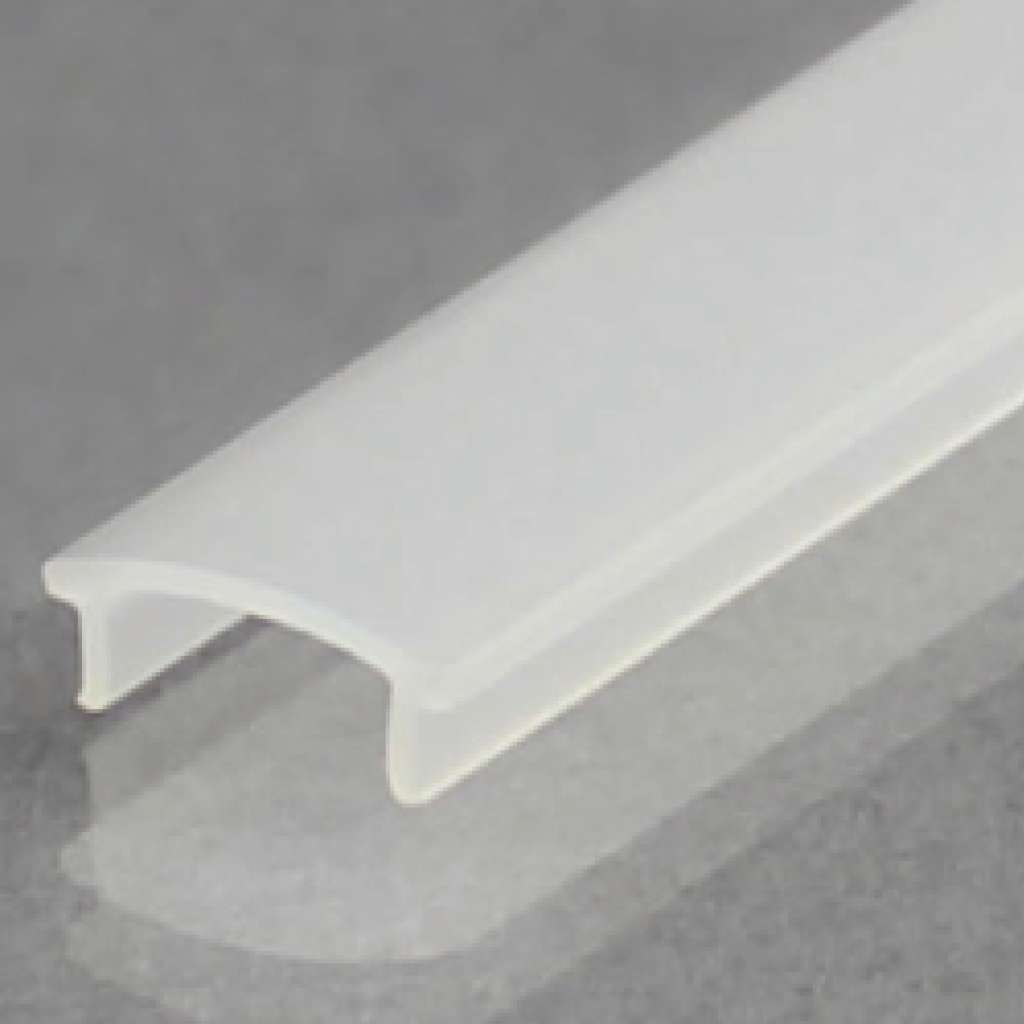

PMMA Cover(2m) | - | - | - | |
 |

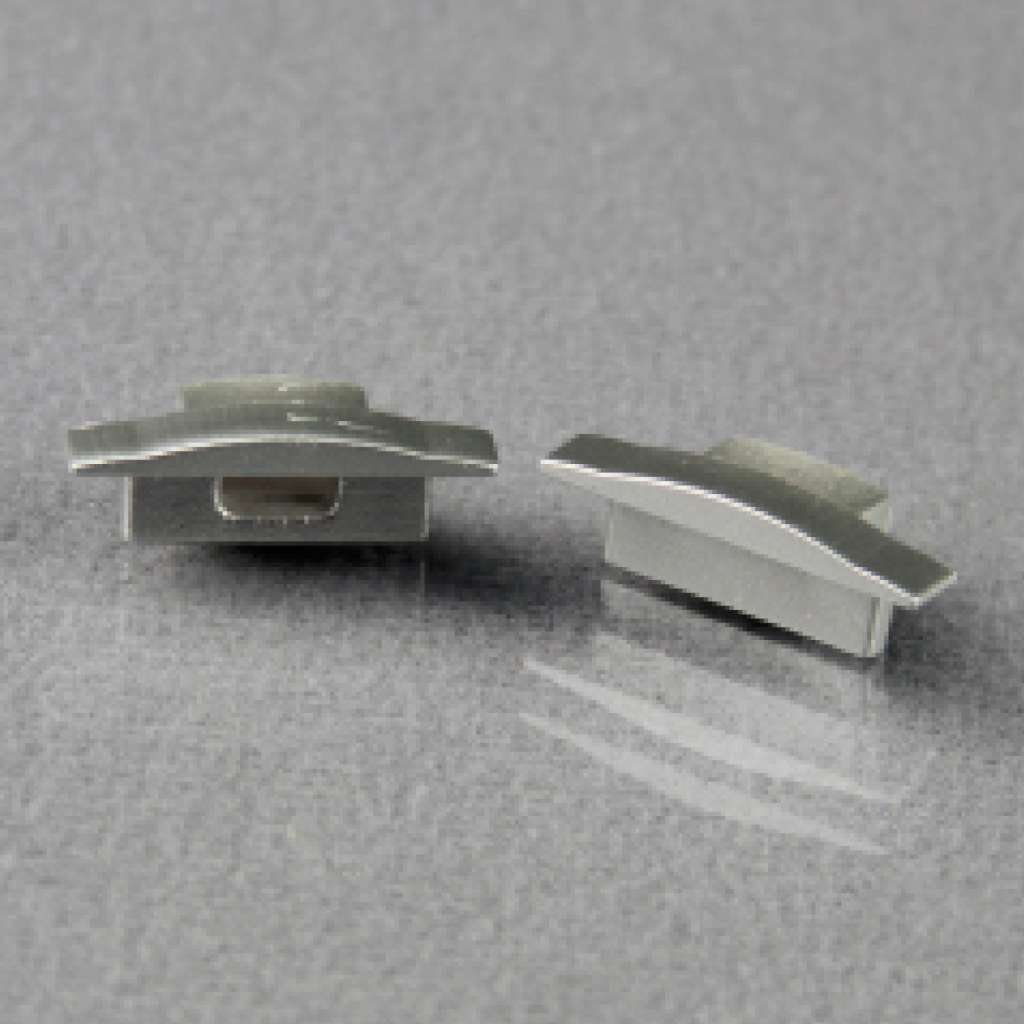

End cap | - | - | - | |
 |

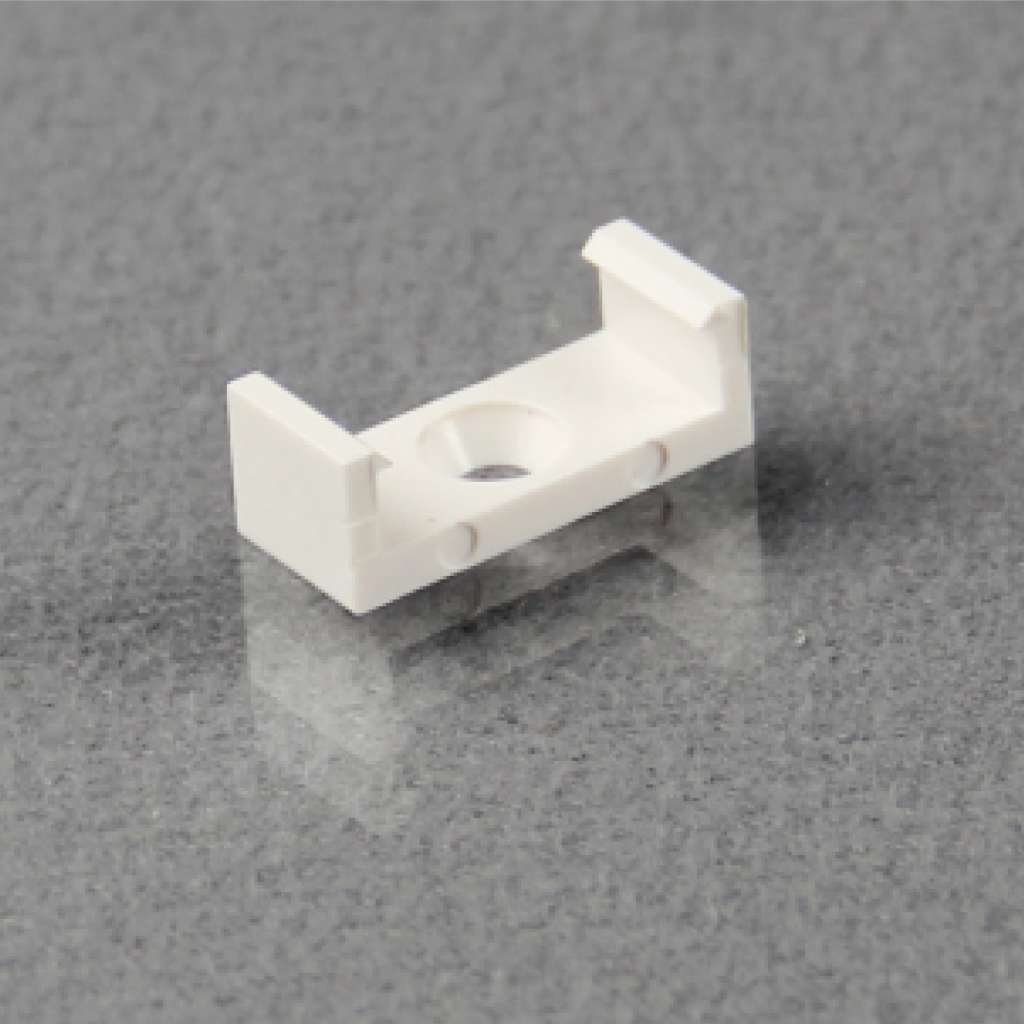

Mounting clip | - | - | Silver | |
 |

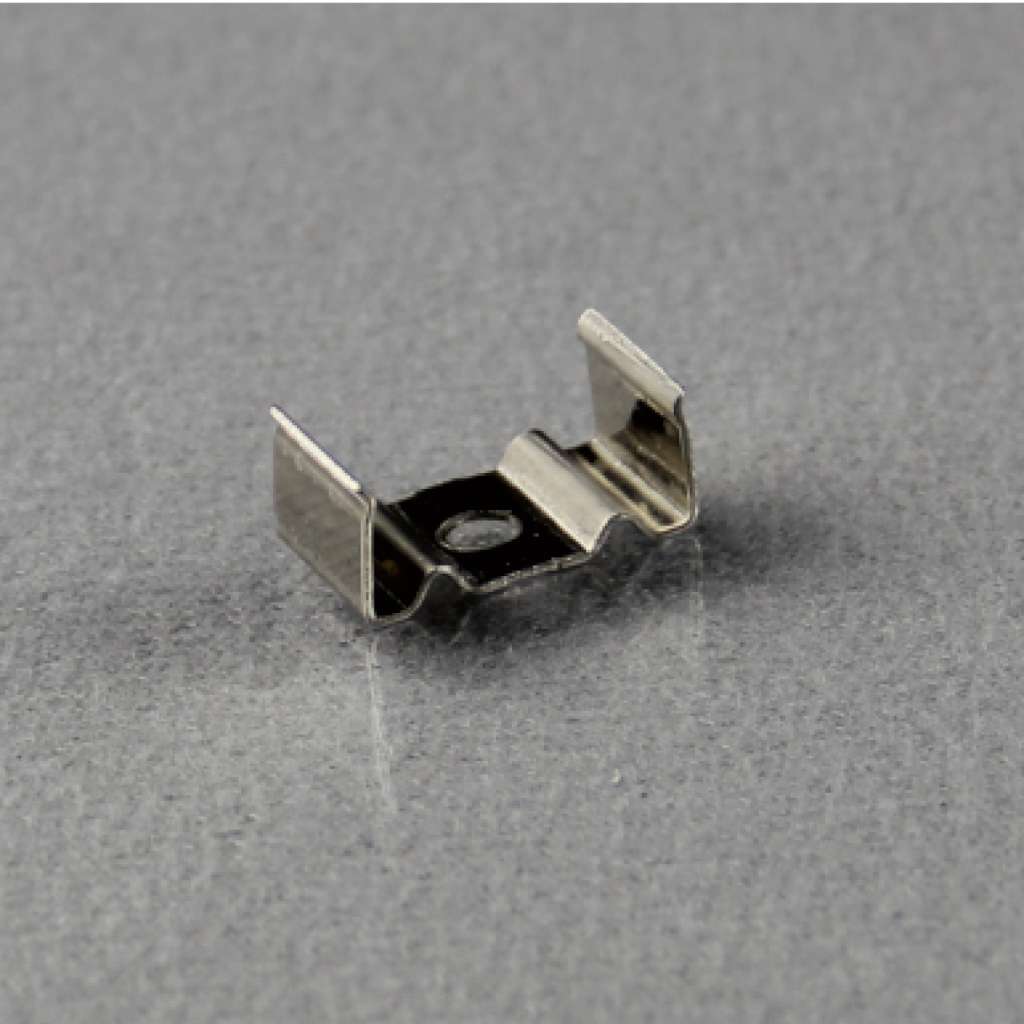

Stainless steel mounting clip | - | - | - | |
 |

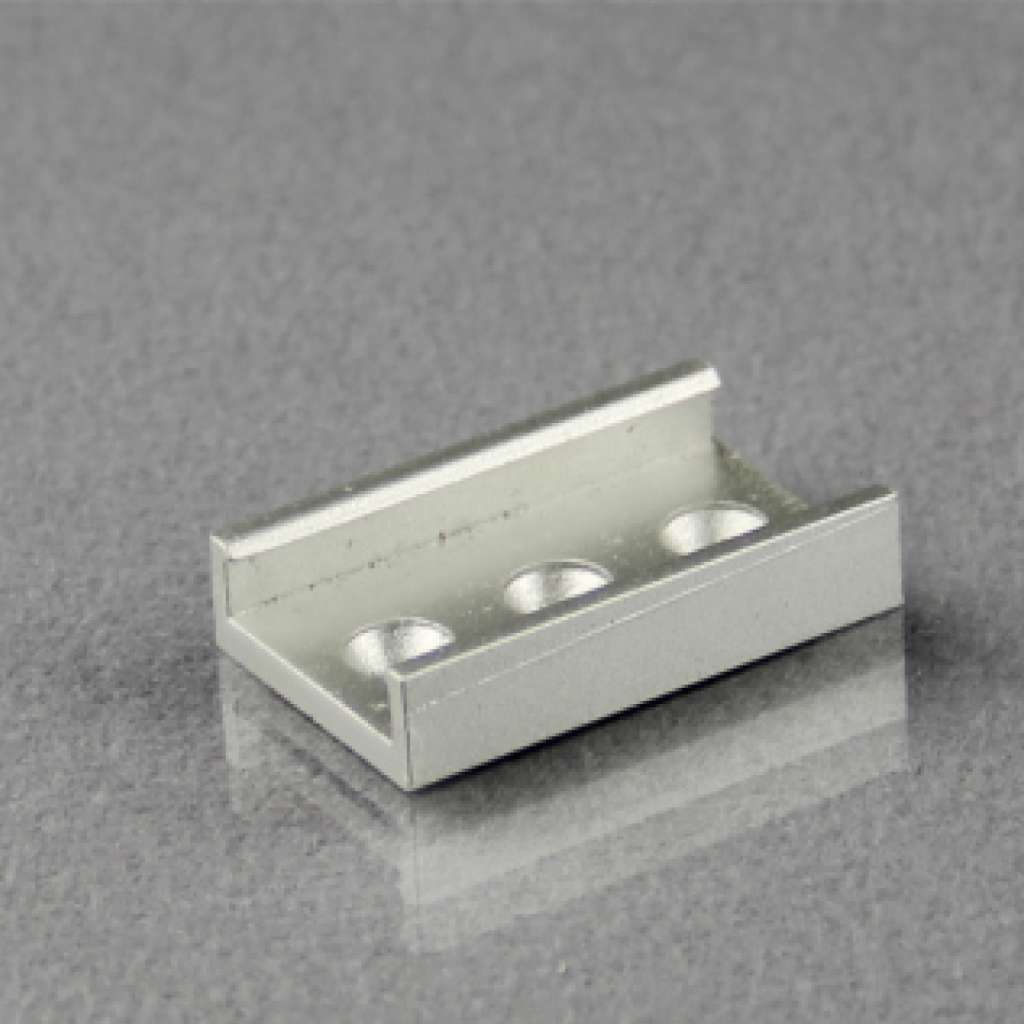

Extension connector | - | - | Silver | |
 |

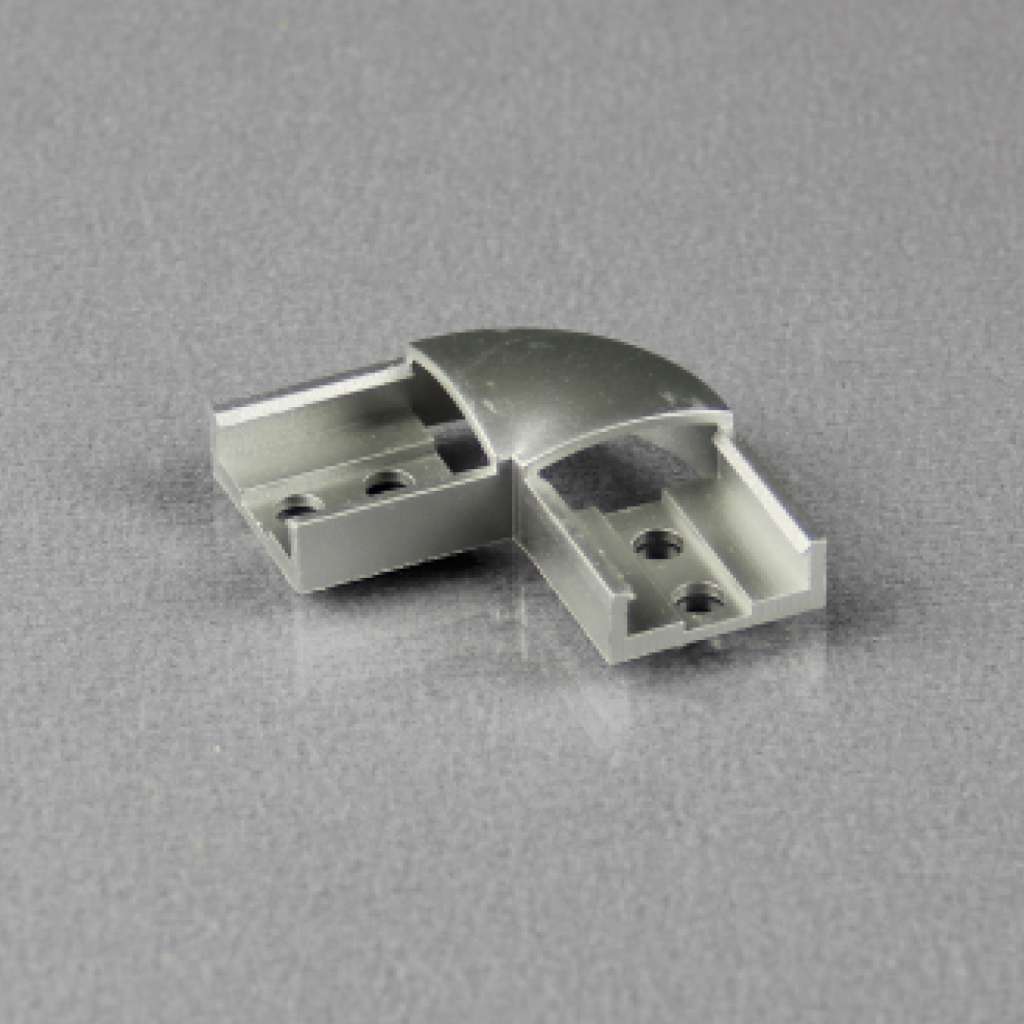

90 degree connectorsilver | - | - | Silver |
